4 jaw self-centering lathe chuck 5 inch K12-125 SANOU brand lathe chuck for sales

Supplier: Shenzhen Dijin Machine Equipment Co., Ltd.
Region: Guangdong, China
Contact: Mr Thomas Ban
Price: $45.00 /set
Min. Order: 1 set

Click here to contact

Product details

Package Preview:	;	Packaging Detail:	Carton;
material:	hardened steel;	four jaw chuck diameter:	125mm;
Brand Name:	SANOU;	Single gross weight:	5.3 KG;
Selling Units:	Single item;	Place of Origin:	Guangdong China;
feature:	self-centering;	Single package size:	18X18X17 cm;
Model Number:	K12-125;

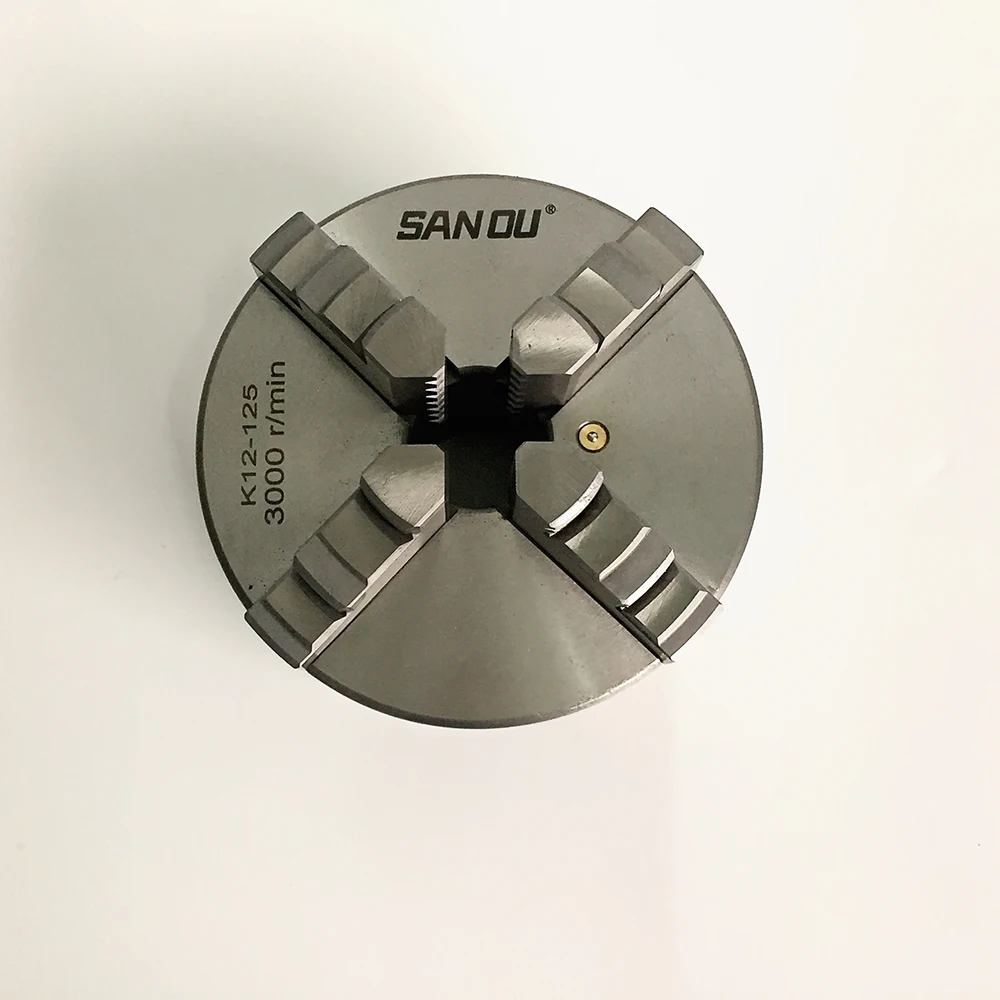

K12 series four jaw self-centering chuck

Specifications:
Jaws material: Hardened Steel
Model: K12-125
Max RPM: 3000 r/min
Jaw: 4 Jaw
Power: Manual

Features:

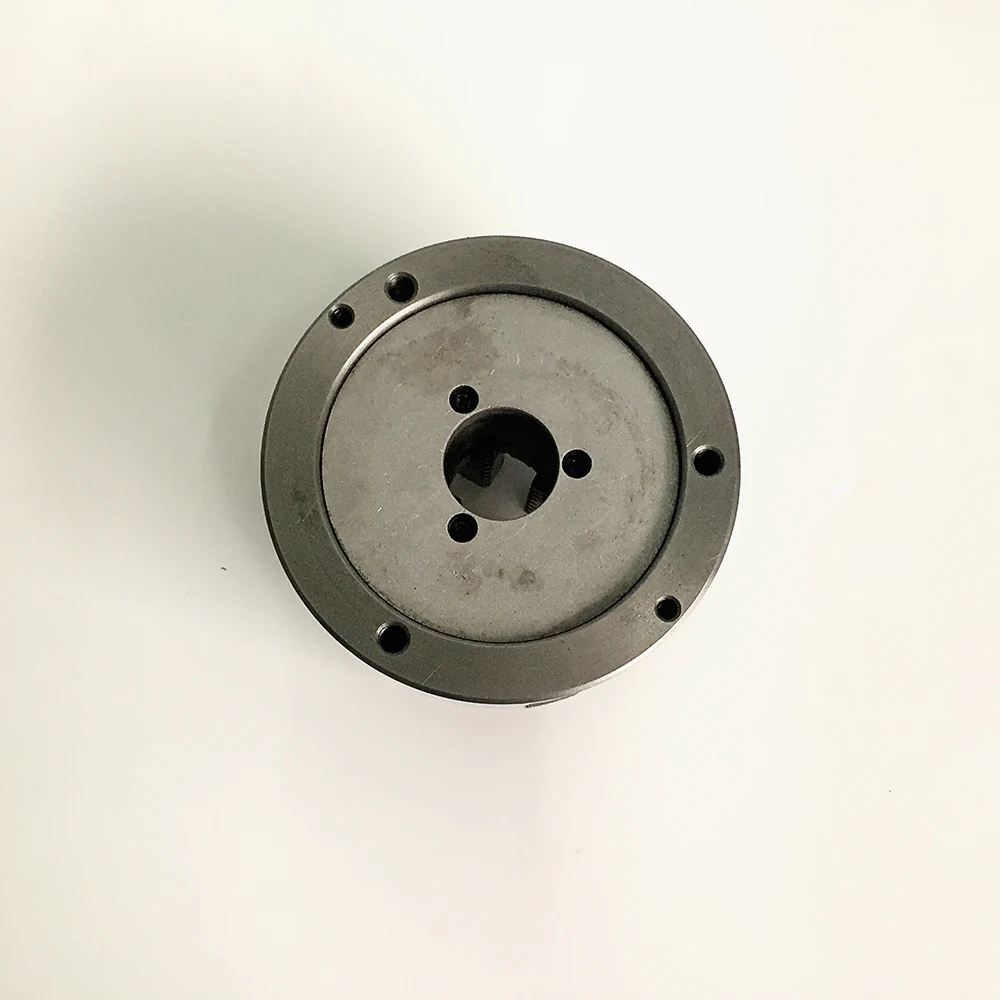

1. Short cylindrical center mounting .
2. Model K12 chucks are provided with one- piece jaws(which include a set of internal jaws and a set of external ones ).
3 .Model K12 chucks are supplied with traditional two-piece jaws.

Internal Jaw:
Clamping Range A-A1: 2.5- 40mm
Jamming Range B-B1: 38- 125mm
External Jaw
Clamping Range C-C1: 38- 110mm

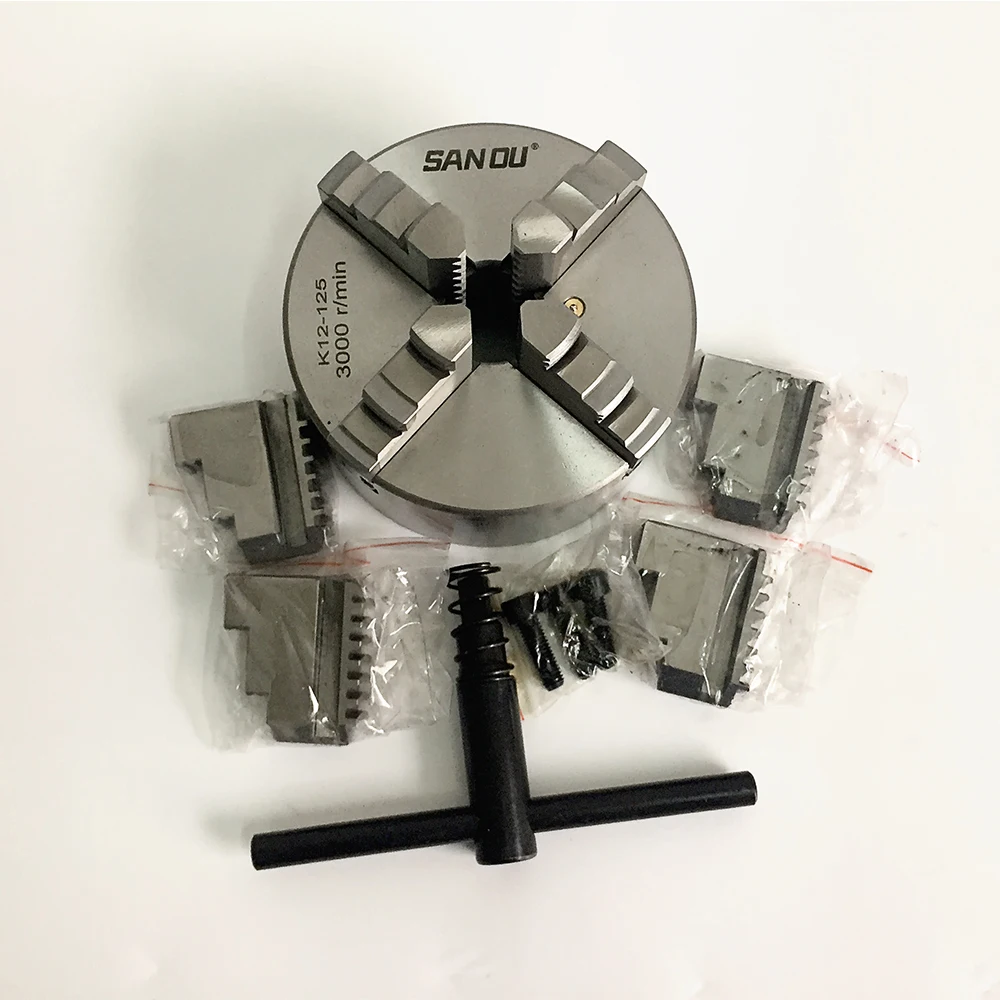

Packaged included :
Self-Centering chuck body x1
Inside jaws x 4
Outside jaws large x 4
Safety chuck key x 1
Mounting bolts x 3
