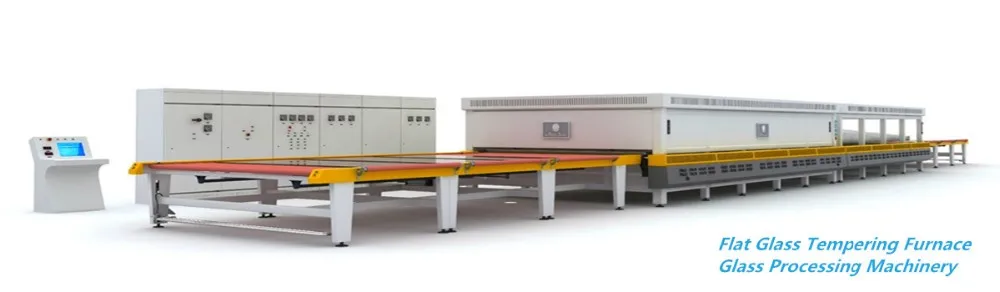

Factory PLC used glass tempering furnace

Supplier: Luoyang Zhongyan Smart Technology Co., Ltd.
Region: Henan, China
Contact: Ms. Ammy Yang
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,T/T;	Delivery Detail:	3 months after payment;
Usage:	Make Toughened Glass, doors and windows, side doors of automotives;	Packaging Detail:	Wooden Box package;
Glass thickness:	4-19mm;	Condition:	New;
Product Name:	Factory PLC used glass tempering furnace;	Tempering type:	Flat Bent;

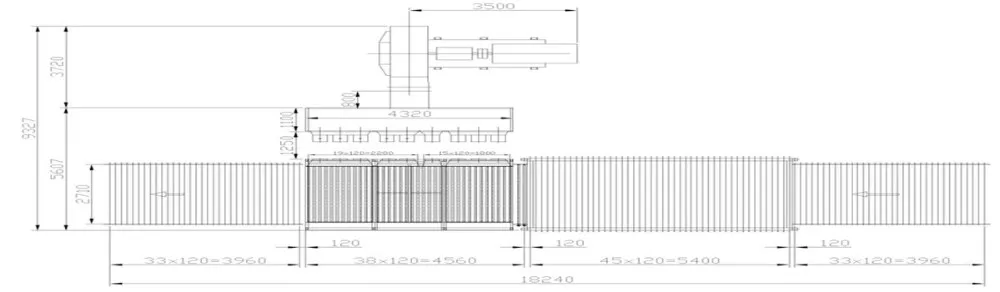

Dimension(LWH):	1800036003500;	Max glass size:	2440*3660mm;
Application:	Radiation/ Air force convection;	Production Capacity:	15-18 Loads/h;
Supply Ability:	200 Set/Sets per Year;	Port:	Qingdao;
Machine Type:	Glass Tempering Furnace;	After-sales Service Provided:	Engineers available to service machinery overseas;
Warranty:	1 Year;	Voltage:	Customerized;
Certification:	CE;	Power(W):	160kw;
Weight:	10000kg;	Place of Origin:	Henan China (Mainland);
Tel/what'sapp/wechat:	+8617538567601;	Brand Name:	Customized;

Product Description

Product Application

Factory PLC used 12mm thick tempered glass is mainly used for building glass,home appliance glass,furniture glass,decorative glass,auto-glass etc.

Glass types can be tempered:extra white glass,screen printed glass,pattern glass,color glass,clear glass.

Following is just the general using size, for your reference. we support OEM orders and customized size for you!

MAIN SPECIFICATIONS OF GLASS TEMPERING FURNACE
Type	Glass thickness(mm)	Max.glass size(mm)	Min glass size(mm)	productivity(m2/h)	Installed Capacity(KVA)
ZTA-1225	3-19	1250*2500	100*250	55	200
ZTA-1636	3-19	1600*3660	100*250	92	400
ZTA-2036	4-19	2000*3660	100*250	128	500
ZTA-2436	4-25	2440*3660	100*300	155	630
ZTA-2442	4-25	2440*4200	100*300	175	630
ZTA-2460	4-25	2440*6000	100*300	245	1000
ZTA-2842	5-25	2850*4200	200*350	213	800
ZTA-2860	5-25	2850*6000	200*350	301	1000
ZTA-3060	5-25	3000*6000	200*400	322	1250
ZTA-3360	5-25	3300*6000	200*400	355	1250

Main Features

Our 12mm thick tempered glass features:
1) Intelligent control system human-computer interfaces.
2) Temperature-control module supply precise and accurate data.fast response.
3) Oven door uses the advanced design with sliding blade shape.
4) Durable and anti-aging,flexible open/close.
5) Synchronous O-sape belt use double-slot design.
6) Heating section reciprocating motion more steady more fast response more convenient

Certifications

Detailed Images

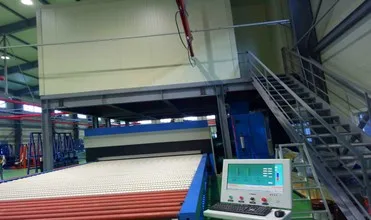

Control system

Name: PLC system

Brand: Schneider

Original: Germany

The control system consists of temperature control system, transmission control system, air supply control system and alarm system during urgent trouble.Industrial control computer from Schneider is chosen as main computer. Display screen is 19 inches colorful screen.We all use Schneider electric and save energy very well. Low energy consumption is our character.

Main Features

1. Arc-changing and transmission adopts imported servo system with faster arc-changing speed, higher arc precision and better consistency and repeatability.
2.Heating elements equipped with automatic detecting function.
3.Equipped with the electricity metering device, can display the energy consumption and the production directly.

Main Features

Machine Parts
1. Transmission inverter adopts Schneider servo motor.

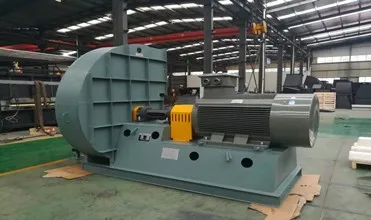

2. Blower motor use Siemens brand production.
3. Blower inverter use Schneider brand production.
4.Industrial computer and PLC use Schneider brand production.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

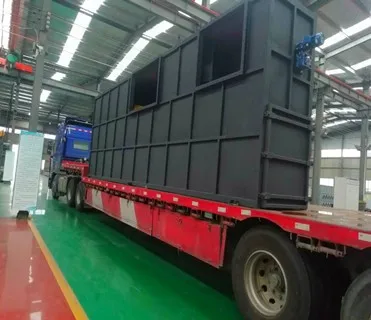

Packaging
Size	12000(L) * 3300 (W) * 2500 (D)
Weight	12 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
