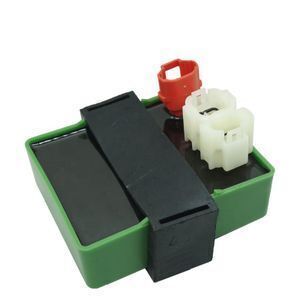

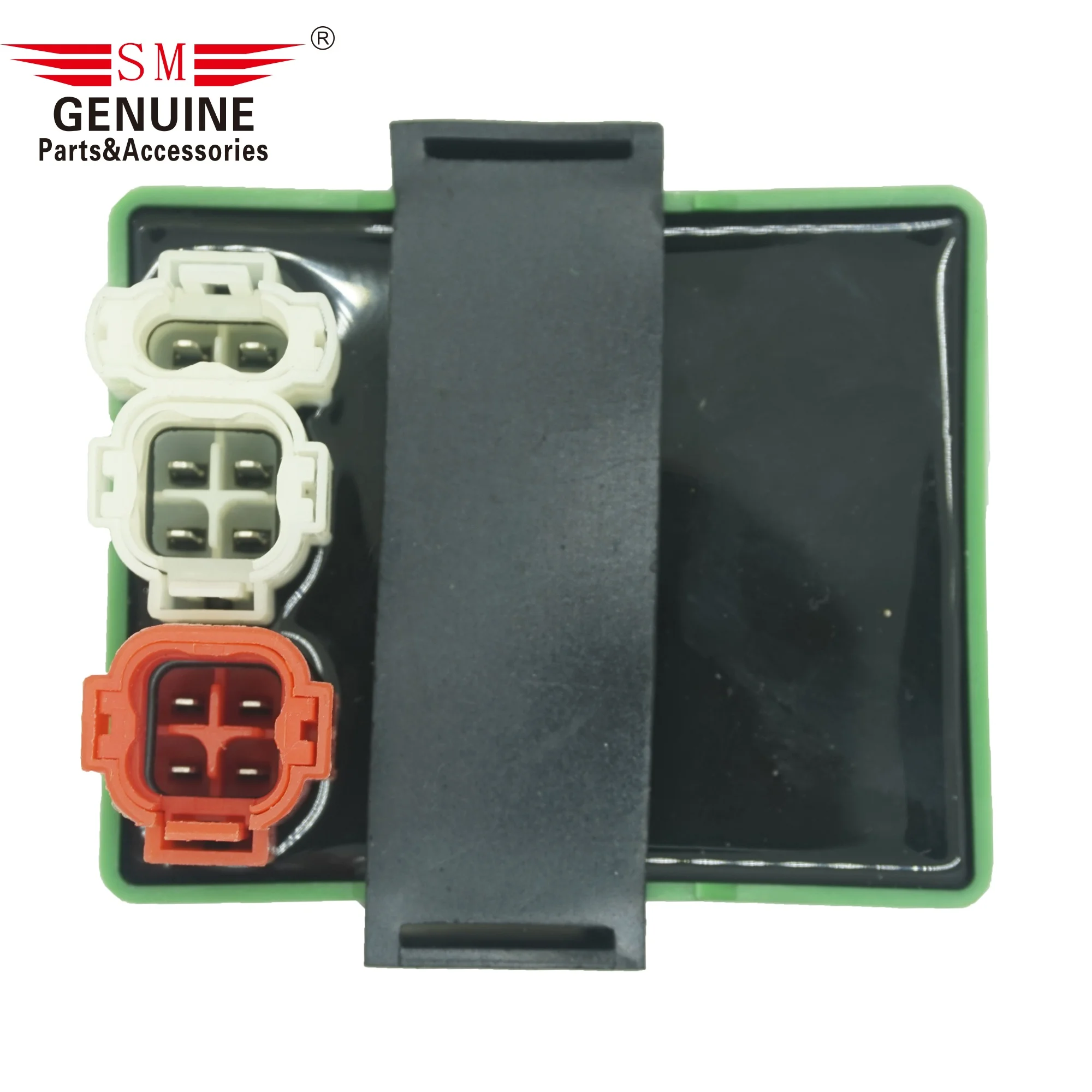

Motorcycle spare parts and accessories BAJAJ Rouser135 PULSAR 220 135 LS JE351200 10 PIN 220CC ignition kit unit cdi

Supplier: Chongqing Songhe Science & Technology Co., Ltd.
Region: Chongqing, China
Contact: Mr James Cheung
Price: $5.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

Material:	Plastic+electronic components;	Quality:	OEM and good quality 100%;
Warranty:	1year;	Brand Name:	SH SM;
Product Name:	Cdi Unit;	Type:	CDI UNIT;
Single gross weight:	0.4 KG;	Single package size:	10X8X6 cm;
OEM:	OEM Orders;	Size:	806625mm;
MOQ:	1PCS;	Selling Units:	Single item;
Certification:	CQC ISO9001;	Model:	PULSAR135LS Rouser135 PULSAR220;
Packaging Detail:	WHITE BAG/BOX PACKING, COLOR BAG/BOX PACKING, ACCORDING TO CUSTOMER'S PACKING REQUIREMENT.;	Place of Origin:	Chongqing, China (Mainland);
Color:	Green;	parts code:	JE351200;
Package Preview:	;	type:	Capacitor discharge type (CDI);

CDI-4

Motorcycle spare parts and accessories BAJAJ Rouser135 PULSAR 220 135 LS JE351200 10 PIN 220CC ignition kit unit cdi

Technical requirements

Brand	SONGHE, SM
Origin	Chongqing, China

1, The ignition characteristics:
--DC power supply, capacitor discharge ignition;CDI UNIT;
--Ignition energy into the corner, low-speed, high-speed ignition performance;
--Operating temperature range: -30°C to+65°C;
--Using SMT Surface Mount Technology, anti-jamming capability, environmental adaptability, high reliability;
2,Product performance:
--Minimum continuous ignition speed: ≤200r/min (three-pin 6mm intermittent trigger gap was 0.7mm);
--Continuous ignition speed range: ≤200r/min ~ 11000r/min (three-pin intermittent 6mm, trigger gap was 0.7mm);
--Into the corner speed: 2000±200r/min (15±1.5°);
--End angle, speed: 3800±200r/min (36±1.5°);
--Ignition advance angle: 21°±1.5°;
--Turn off the SW end of the ground, ignition should turn off;
3,Appearance requirements:
--Patch device and igniter shell at the bottom of the vertical tilt;
--Package surface should be smooth, free of cracks and other foreign matter;
--Encapsulation material and the shell is bonding well, without gaps, and should fully cover the components;
--Package surface height should not exceed the shell height, and the surface is smooth and no bubbles;
4, Igniter insulation resistance shall be not less than 1MΩ (measured with 500V megger);
5, In line with the motorcycle JB/T8123.1 ~ 8123.2-1999 standards;
