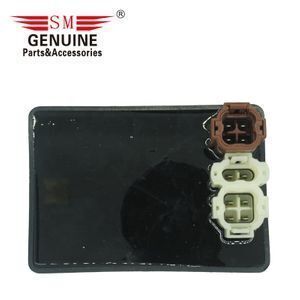

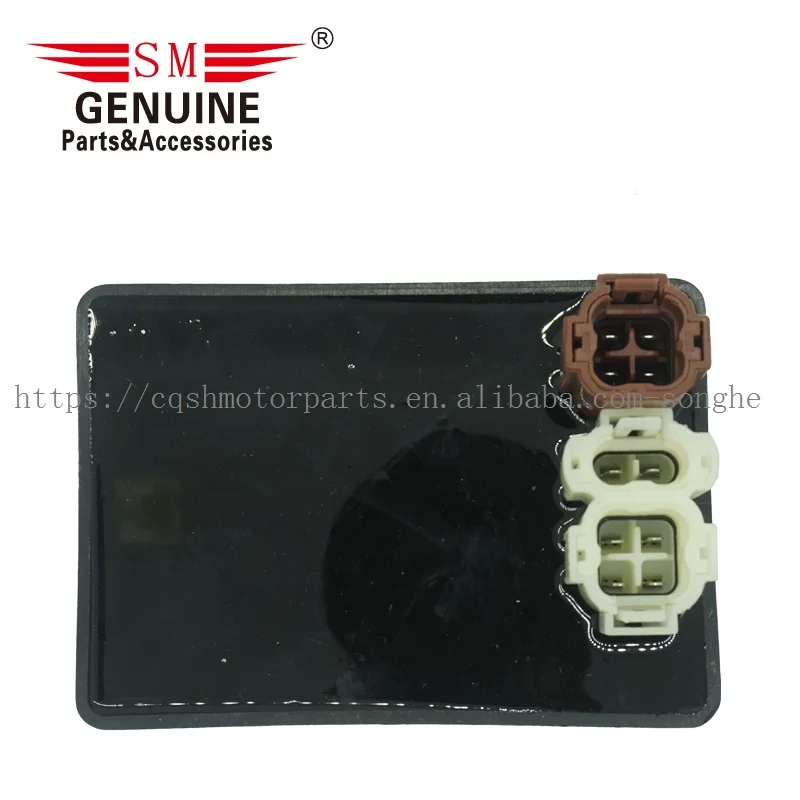

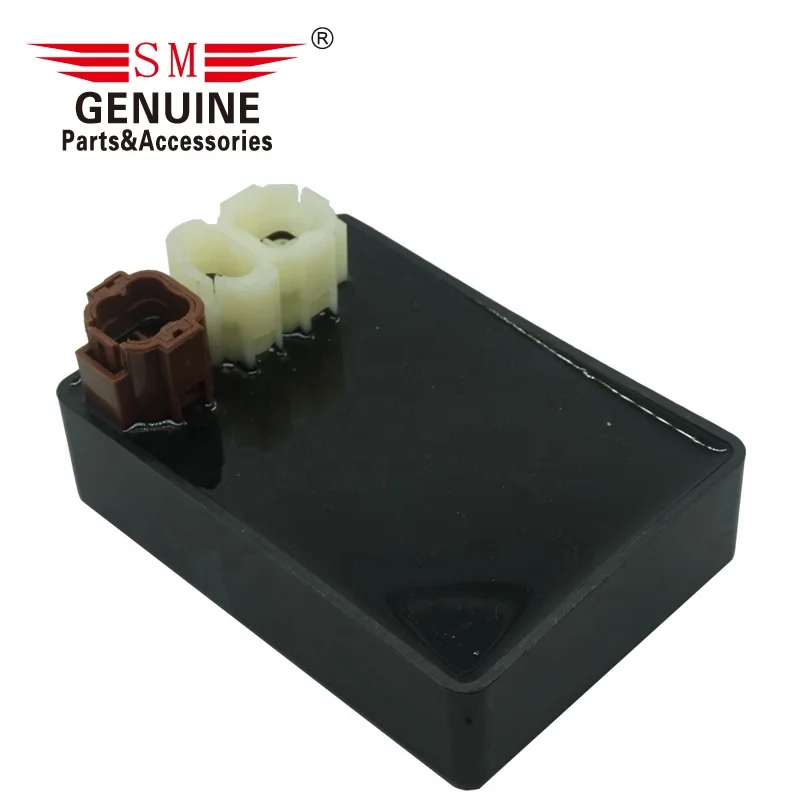

Motorcycle racing CDI racing unit for Hyosung GT250 RNaked V2S-250 Comet GT250R 03-07 32900HM8153

Supplier: Chongqing Songhe Science & Technology Co., Ltd.
Region: Chongqing, China
Contact: Mr James Cheung
Price: $11.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Model:	Hyosung GT250 RNaked V2S-250 Comet GT250R 03-07 32900HM8153;	Selling Units:	Single item;
Size:	1007027mm;	OEM:	YES;
Product Name:	Cdi Unit;	Warranty:	1year;
Quality:	OEM and good quality 100%;	Packing:	Standard;
Type:	CDI UNIT;	Color:	Black;
Package Preview:	https://sc02.alicdn.com/kf/H09c995c0458d42a3a3395d28ab488c7d7.jpg_640x640.jpg;	Single package size:	10X10X5 cm;
parts code:	32900HM8153;	Brand Name:	SH SM;
Material:	Plastic+electronic components;	Single gross weight:	0.8 KG;
Package Type:	WHITE BAG/BOX PACKING, COLOR BAG/BOX PACKING, ACCORDING TO CUSTOMER'S PACKING REQUIREMENT.;	Place of Origin:	Chongqing, China (Mainland);
Certification:	CQC ISO9001;	type:	Capacitor discharge type (CDI);

CDI-4

Motorcycle cdi unit For Hyosung GT250 RNaked V2S-250 Comet GT250R 03-07 32900HM8153

Technical requirements

MANUAFCTORY	SONGHE
ORIGIN	CHONGQING,CHINA

1, The ignition characteristics:
--DC power supply, capacitor discharge ignition;CDI UNIT;
--Ignition energy into the corner, low-speed, high-speed ignition performance;
--Operating temperature range: -30°C to+65°C;
--Using SMT Surface Mount Technology, anti-jamming capability, environmental adaptability, high reliability;
2,Product performance:
--Minimum continuous ignition speed: ≤200r/min (three-pin 6mm intermittent trigger gap was 0.7mm);
--Continuous ignition speed range: ≤200r/min ~ 11000r/min (three-pin intermittent 6mm, trigger gap was 0.7mm);
--Into the corner speed: 2000±200r/min (15±1.5°);
--End angle, speed: 3800±200r/min (36±1.5°);
--Ignition advance angle: 21°±1.5°;
--Turn off the SW end of the ground, ignition should turn off;
3,Appearance requirements:
--Patch device and igniter shell at the bottom of the vertical tilt;
--Package surface should be smooth, free of cracks and other foreign matter;
--Encapsulation material and the shell is bonding well, without gaps, and should fully cover the components;
--Package surface height should not exceed the shell height, and the surface is smooth and no bubbles;
4, Igniter insulation resistance shall be not less than 1MΩ (measured with 500V megger);
5, In line with the motorcycle JB/T8123.1 ~ 8123.2-1999 standards;
