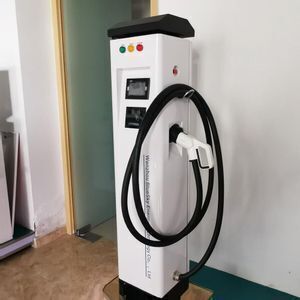

CE approved high quality ac ev charger type 2 for charging station for electric vehicle

Product details
Logo:Customer Specifications;Package Preview:;
Supply Ability:200 Piece/Pieces per Month;Brand Name:BES;
Power:7KW/11KW/22KW;Model Number:LT;
Packaging Detail:Standard wooden case;Place of Origin:Zhejiang China;
Application:Customer Specifications;Color:Customer Specifications;
Payment Terms:L/C,T/T;Warranty:12 Months;
Port:ningbo;Input voltage:220V/380V;

Overview

BSEC series DC charger is the charging equipment specially developed by Wenzhou Bluesky Energy Technology Co., Ltd. for electric vehicles. This series of products have three phase type and are equipped with floor-mounted installation modes. The product has integrated charging interface, HMI, communication, billing system together aims to achieve a higher safety, stronger adaptability and more convenient operation. With waterproof, dustproof, anti-corrosion functions. Streamline design adopted in the charger appearance makes users feel more comfortable. Bluesky DC charger could be applied in large parking lots, residential areas, shopping malls, hospitals, parks and scenic spots, etc.



Key Features
1. Strict Control Pilot

Charging pile could fit well with all European/Japanese/National standard EVs with its perfect compatibility. Precise control of power supply and cut off to avoid safety incident.
2.Robust Protection
The charging pile has been equipped with robust protection functions of overload, surge, overvoltage, undervoltage, short circuit, earthing, overheat, lightening, emergency stop, etc to avoid damages by accident caused by abnormal weather or grid.
4. Appearance with Perfect Sealing
Appearance design adopts zinc-plated board + multi-layer spraying process to achieve excellent sealing, which can resist the rainstorm effectively. The multi-layer spraying technology could prevent rust from causing damage to the product. Anti-ultraviolet treatment adopted in the coating process aims to restrain the cabinet from aging, which has ensured longer life cycle of the product.


Technical Parameters:

11/43KW- AC400V type 2 specification

Outlet specifications

 (option)

Connection standard

IEC 61851-1

Connector/socket type

IEC 62196-2 Type 2 Mode 3

Vehicle Safety Communication

IEC 61851-1 PWM (AC Type 2)

System output voltage range

400VAC

Number of output interface configuration modules

11kW×1

22kW×1

43kW×1

Connector maximum output current

16A

32A

63A

Compliance and safety

CE

CE

CE

Cable length

4m

4m

4m

General specifications

Environment

Indoor / outdoor

Operating temperature

,-20 ºC to +50 ºC(de-rating characteristic applies) Option: -35 ºC to +50 ºc

Storage temperature

,-40 ºC to +70 ºC

RFID system

ISO/IEC14443A/B,

Payments

Smart Card, Server based Online Payments or equivalent

Network connection

10/100 Base-T Ethernet(3G/4G option)

Interaction Display

Full-color  (4.3 in 480x270 TFT ) LCD display for driver interaction

Visual Indicators

Error indication, Presence of input supply indication, Charge process indication and other relevant information

safety protection

Over current, under voltage, over voltage, Residual current, Surge protection, Short circuit, Earth fault at input and output, Input phase reversal, Emergency shut-down with alarm, Over temperature, Protection against electric shock

Push Button

Mushroom type emergency stop switch (Red)

Supported Communication Protocols

OCPP1.6

Residual Current Device

30mA Type B

Protection

IP54

Dimensions (D x W x H)

205×450×650mm

Input Chracteristics

AC Supply System

Three-Phase, 5 Wire AC system (3Ph.+N+PE)

Nominal Input voltage

400VAC,±10%

Input Frequency

50Hz, ±10Hz

Input Supply Failure backup

Battery backup for minimum 1 hour for the control system and billing unit. Data logs should be synchronized with CMS during back up time, in case battery drains out

Connector parameters 1#

Rated voltage

AC480V

Rated current

3AC  / 16A

3AC  / 32A

3AC  / 63A

standard

IEC 62196-2 Type 2

Electromagnetic lock

NO

Temperature Sensor

NO

communication interface

PWM


How to Use

A. How to start charging

1. Make sure the charger is well connected with the power.

2. Use EV charging cable to connect the charger with the EV.

3. Press the button on the charger to start



B. How to stop charging

1. The charger will stop automatically when the charging is finished.

2. Disconnect the EV cable from the the EV .

3. You can stop charging by pressing the button in case of an emergency.



Application

Bluesky charging piles have been applied in more than 10 cities in China. The specially developed European Standard Charging Pile has passed strict test procedure of TUV SUD and been awarded with CE and TUV certificates. Bluesky products have been exported to more than 10 countries and regions such as England, Russia, India, Bhutan, Serbia, Romania, France, Jordan, etc.



Good to Know
-This EV charger is special for home use. It doesn't have the billing function.
-This charger have auxiliary support and charging connector, which could be used directly with the EV.
-This charger has precise internal structure. Please do not take it apart without any professional technical support. Any questions, please contact our Customer Service Manager at the first time.
-This charger is only for EV charging. Please don't use it in any other occasions.

About Bluesky
Bluesky Energy is a national high-tech enterprise specialized in R&D, production and marketing of smart charging piles, key components and the integration of energy storage systems. The company is located in No.460 Jinhai 1st Road, Binhai Etdz, Wenzhou, Zhejiang, China, which covers an area of 50000 square meters. With over 170 professional worker, 30 after-sales technician and R&D engineer, Bluesky are on the postion to offer any customized design and turu-key projiect according to different products and different areas, bluesky can offer complete solution from design, R&D, manufacturing, shipping, installation, commissioning, training and maintenance service.

 We are always committed to controlling products quality from the source, striving to provide customers with high-quality products, and truly realizing charging freely.

Customers First and Dedication is what bluesky standing for.

We believe in that diligent service is the soul of an outstanding company. No matter if you are our regular customers or new customers who just find us in the first time, any questions of you will be replied within the shortest time. And we have conscientious after-sale services, any problems of products will be followed up responsibly by our professionals until be solved perfectly.



We would like to show our honesty, top quality, competitive prices and high efficiency to establish business relationships with you. Our goal is to provide not only products, but also a complete solution including product design, tooling, fabrication and service to our customers to achieve their upmost satisfaction.



Business card



Exhibition Information



Certificate



Packageing&Shipping

Standard Wooden and Carton Box Package.

Mode of transportation: sea, air, railway, DHL, EMS, etc.

(depending on the size and weight of the product)



FAQ

Q1. What is your term of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q2. How about your delivery time?
A: Our production time is about 35 days, from receipt to advance payment. We ship immediately after receiving the final payment.
Q3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q4.Can you use my logo and brand?

Yes, We can provide OEM service. we can produce by your technical drawings.

Q5: Do you have a factory?

Yes,We do.Welcome to our factory to visit. We can also video chat to show our factory.

Q6: Can it be customized?

Yes, products can be configured according to customer needs. With or without screen, with OCPP or without OCPP, supporting gun line or without configuration, etc.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
