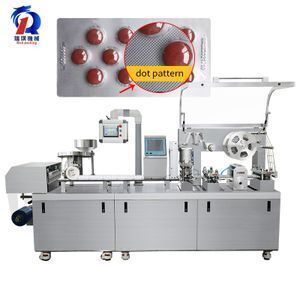

dpp260r high speed heat sealing pill blister packaging capsule blistering machine for pharmaceuticals tablets
-
Supplier: Guangdong Rich Packing Machinery Co., Ltd. -
Region: Guangdong, China -
Contact: Mr Haoran Fu -
Price: $15300.00 /piece -
Min. Order: 1 piece
| Condition: | New; | Single package size: | 350X74X168 cm; |

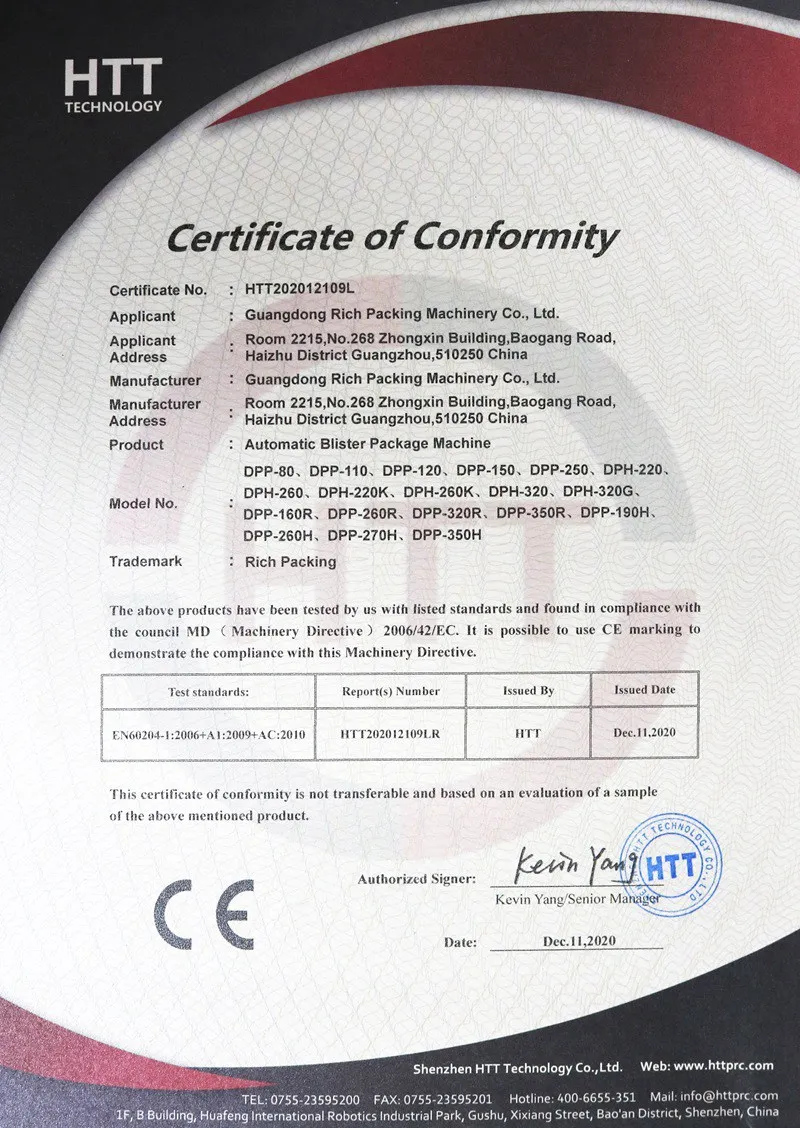

| Thickness and Width of PTP: | 260*0.02~0.03mm; | Certification: | ISO CE SGS; |
| Brand Name: | Rich Packing; | Dimension(L*W*H): | 3500*740*1680 mm; |
| Core Components: | PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump; | Package Preview: | ; |
| Standard Plate: | 80*57mm; | Key Selling Points: | Flexible Manufacturing; |

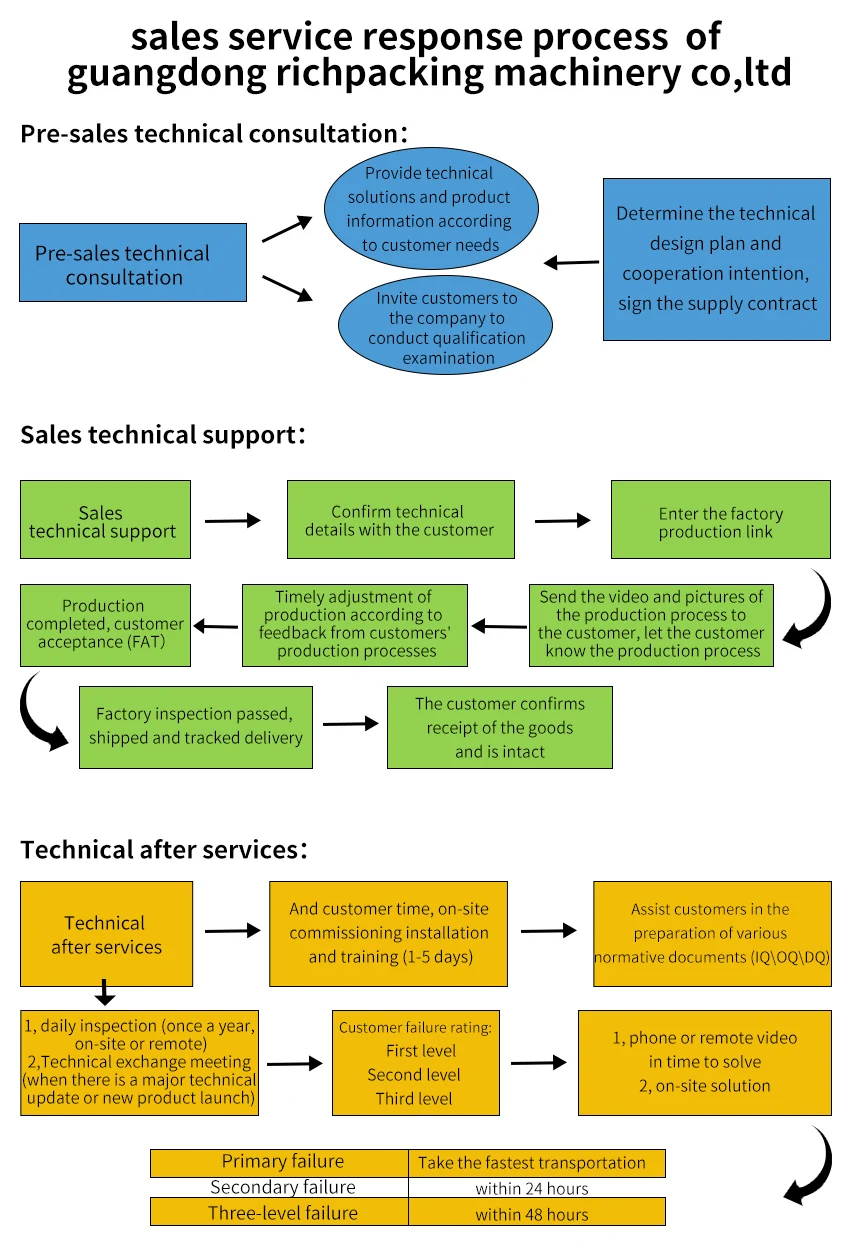

| After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Voltage: | 220/380V 50 Hz; |
| Driven Type: | Electric; | Max. Shaping Dia.: | 250*160*15mm; |
| Machinery Test Report: | Provided; | Selling Units: | Single item; |
| Single gross weight: | 2600.0 KG; | Max. Depth: | Max. Depth 26mm(custom-made); |
| Dialyzing Paper: | 50~100g*260mm; | Video outgoing-inspection: | Provided; |
| Packaging Detail: | Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation.; | Local Service Location: | Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Mexico,Russia,Spain,Thailand,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan; |
| Warranty: | 3 years; | Warranty of core components: | 3 years; |
| Applicable Industries: | Manufacturing Plant,Food & Beverage Factory,Pharmaceutical,Medical beauty/pharma; | Marketing Type: | New Product; |
| Automatic Grade: | Automatic; | Place of Origin: | Guangdong China; |
| Type: | Blister Packaging Machine; | Thickness and Width of PVC: | 260*0.15~0.45mm; |

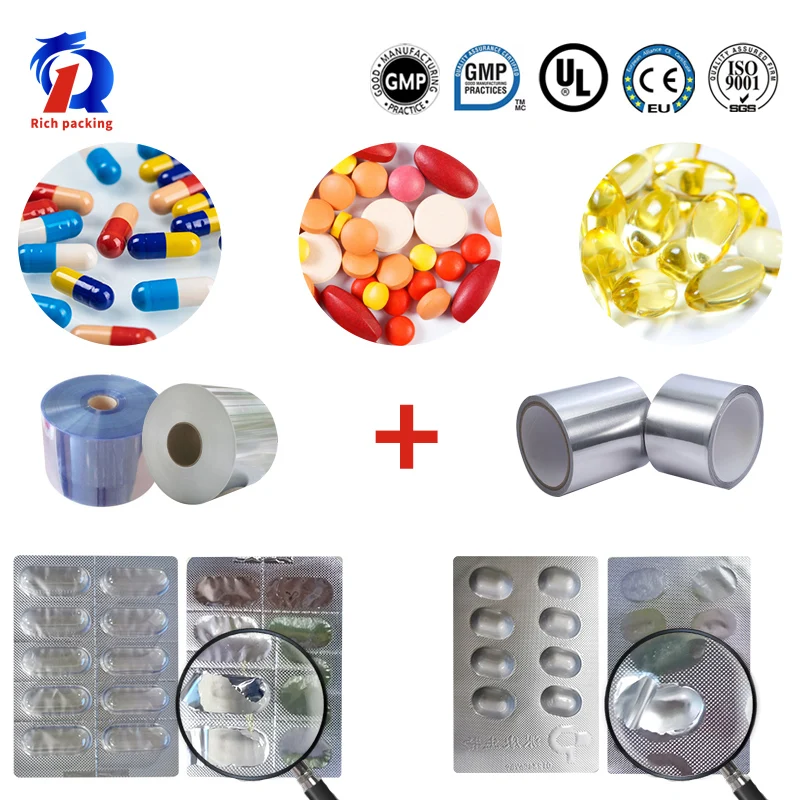

| Application: | Commodity,Food,MEDICAL,Pharmaceutical; | Weight: | 2600kg; |
| Production Capacity: | 10800plates/hour; | After-sales Service Provided: | Engineers available to service machinery overseas,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support; |
| Showroom Location: | Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Malaysia,Australia; | Power of Main Motor: | 1.5kW; |
| Standard Travel Range: | 40~160mm; |
|
Production Capacity |
18,000~236,000 pcs/hour |
|
Max. Shaping Dia. And Depth |
250*160*15mm Max. Depth 26mm(custom-made) |
|
Blanking |
20~180 blisters/min (aluminum plastic) 20~120 blisters/min (aluminum aluminum) |
|
Power of Main Motor |
1.5kW |
|
Total Power |
6.0kW |
|
Power supply |
380V/220V/50Hz |
|
Standard Travel Range |
40~160mm |
|
Standard Plate |
80*57mm |
|
Thickness and Width of PVC |
260×0.15~0.45mm |
|
Thickness and Width of PTP |
260×0.02~0.03mm |
|
Dialyzing Paper |
50~100g*260mm |
|
Vacuum |
0.4MPa-0.6MPa |
|
gas consumption |
≥0.2m3/min |
|
Noise |
<75dBA |
|
Mold Cooling |
Runing water or circulating water It is recommended to use constant temperature cold water 60L/H |
|
Weight |
Net weight 2600kg |
|

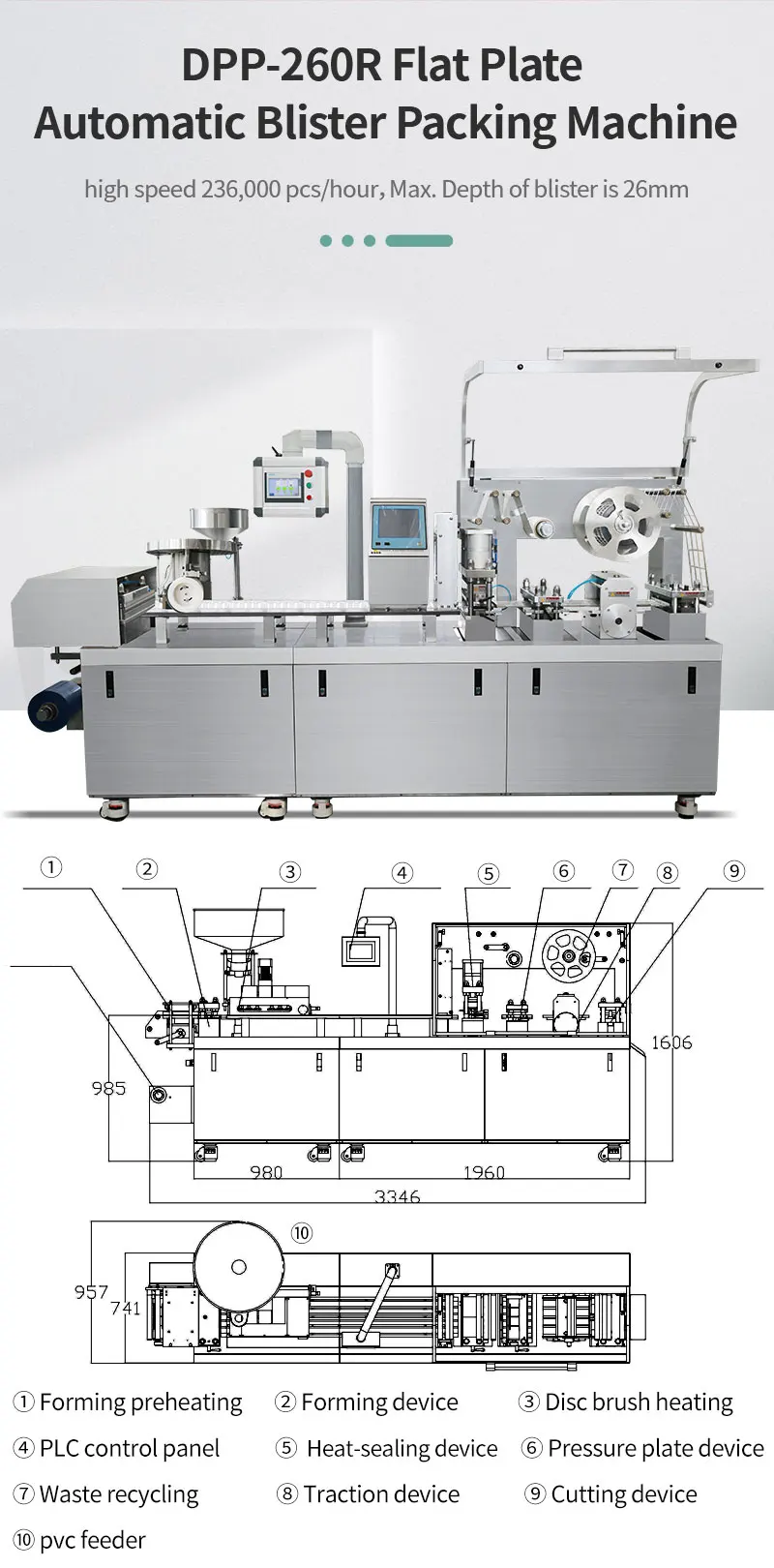

Overall Size of Machine |
3500*740*1680 mm(L*W*H) |
|
Capsule Filling Machine |
Tablet Capsule Counting Machine | Tablet Press Machine |
 |
 |
 |

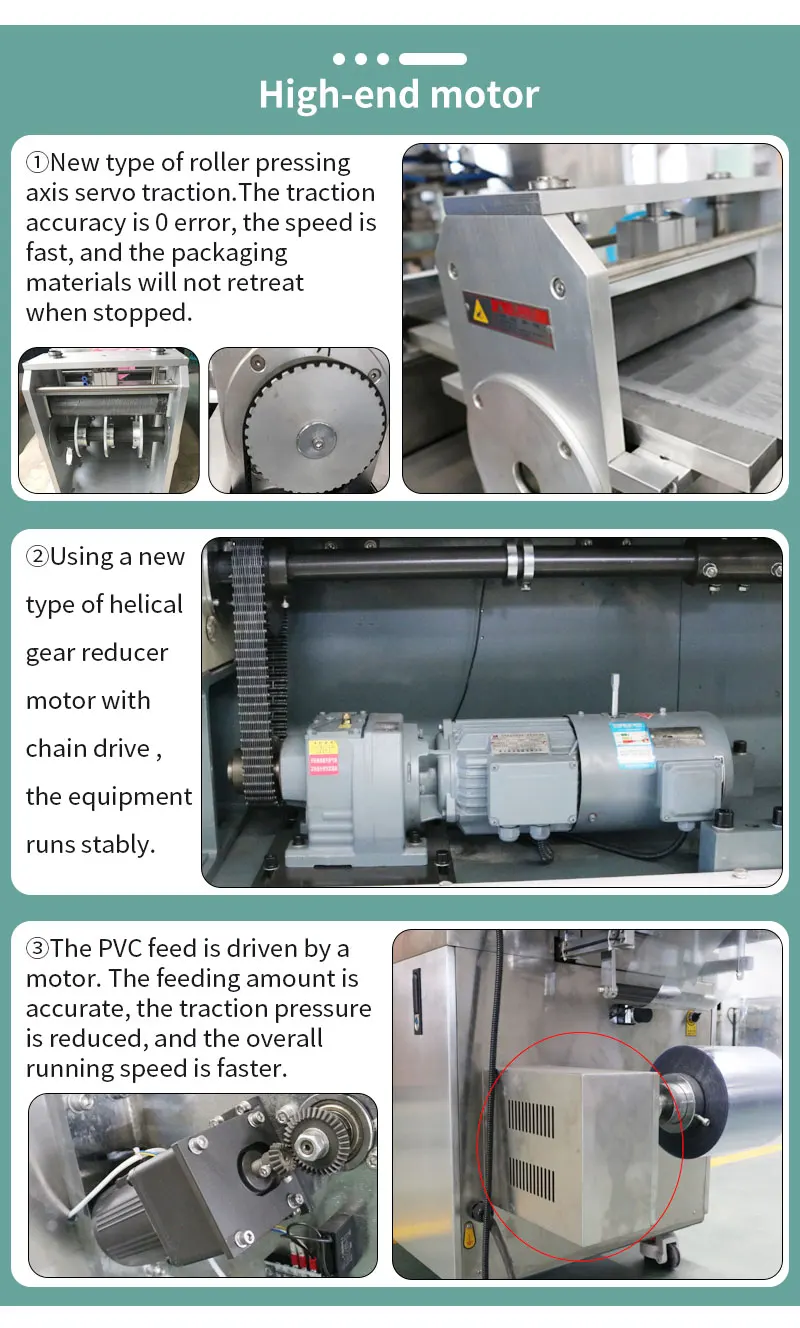

The most important part of 260r blister packing machine is the servo motor. The feed motor and the servo motor are selected from Taiwan Delta. It has the extremely high traction accuracy and precise feeding and no error in the traction accuracy, and brings the characteristics of the faster running speed to 260R machine. The towing station Even if the 260R blister packing machine is stopped, the 260R material in the towing station will not retreat, making it easier for the customers to operate.

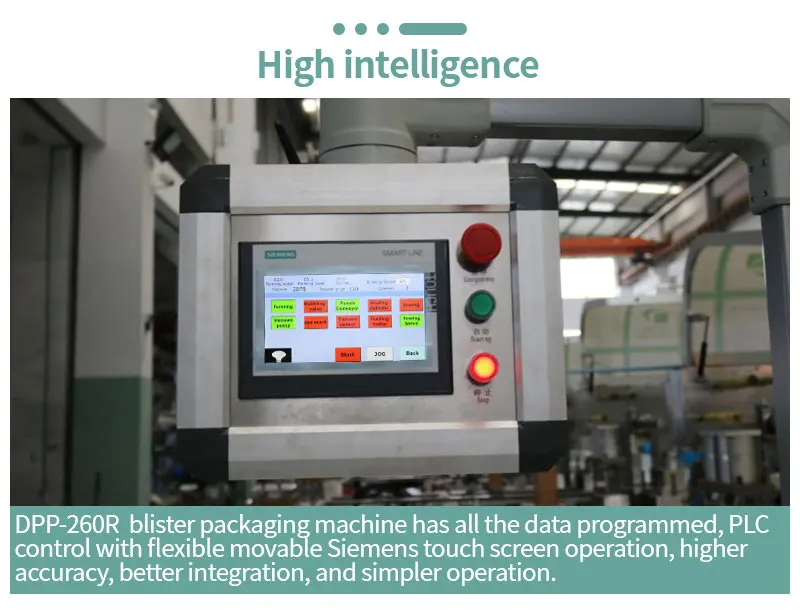

The PLC touch screen is selected from the German Siemens, and the PLC module is selected from the Japan Omron. The PLC module and the touch screen are more convenient for the customers to use data management. 260r has the data programming for easy operation for customers and high integration.
The emergency stop button of the 260r is made by the Schneider of France. When the blister packing machine is in the trouble, please press the emergency stop button to stop the 260R machine.
-
