new ofset model german latest 6 8 color cap tabletop offset printing machine price

Supplier: Wenzhou Guangya Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Carol Chan
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Type:	Offset Printer;	Place of Origin:	Zhejiang China;
Name:	LK106MT ( longitudinal 3, transversal 2, 5 Groups Foil Feeding );	Color:	White;
Brand Name:	LEE-KING;	Raw material:	Casting Iron & Stainless Steel;
Dimensions(LWH):	605042002260mm;	Applicable Industries:	other;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Color & Page:	Multicolor;
Supply Ability:	50 Set/Sets per Month;	Weight:	17000kg;
Product name:	Automatic Foil Stamping and Die Cutting Machine;	Certification:	CE;
Speed:	7500s/h;	Condition:	New;
After-sales Service Provided:	Field maintenance and repair service;	Voltage:	380V;
Usage:	Paper Printer,Label Printer,Card Printer,Tube Printer,Bill Printer,Cloths Printer;	Plate Type:	Flatbed Printer;
Automatic Grade:	Automatic;	Warranty:	1 Year;
Port:	NIngbo;	Packaging Detail:	1.outside package: standard export wooden case 2.inner package: stretch film;

new ofset model german latest 6 8 color cap tabletop offset printing machine price

Product Description

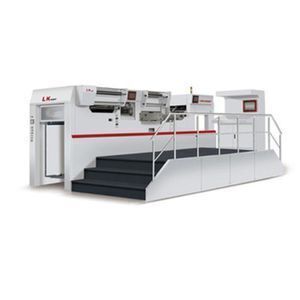

LK 106MT

Automatic Foil Stamping and

Die Cutting Machine (5 Groups Foil Feeding)

The machine is equipped with 3 sets longitudinal and 2 sets lateral foil feeding system, to ensure the foil feeding stable, accurate, reliable tension controlling, less stretching, the foil feeding difference is only about 1mm. The waste foil collecting hair wheel is driven by imported servo motor, which ensures the high speed, stable, precise stamping work. Strong heat-resistant special material formed and processed honeycomb plate, could be located at any position. The heat-resistant stick and the anti-side-moving special block lay, making the stamping more accurate and perfect. 12 individual temperature controlling zones, independent researched and developed "PID" precise controlled heating system, to keep the stamping molds temperature be stable, ensure the whole heating system's temperature control be more equal and fast response.

TECHNICAL PARAMETER
Max. sheet size	1060*770mm
Min. sheet size	450*370mm
Max. die cutting size	1050*750mm
Max. stamping size	1050*750mm
Gripper margin	8-17mm
Paper range	90-2000g/m² (cardboard) 0.1-2mm (cardboard) ≤4mm (corrugated)
Maximum cutting force	300T
Max. mechanical speed	7500s/h
Max. stamping speed	6500s/h
Foil pulling shafts	longitudinal 3, transversal 4
Zones individually heated	24 heating zones (each zone can be adjusted independently, max 200 degree)
Max. foil longitudinal diameter	250mm
Max. delivery pile height	1200mm
Max. feeding pile height	1350mm
Main motor power	11kw
Machine power	46kw
Machine weight	17000kg
Overall machine dimensions	605042002260mm
Air requirements	0.6Mpa, >0.37m³/min

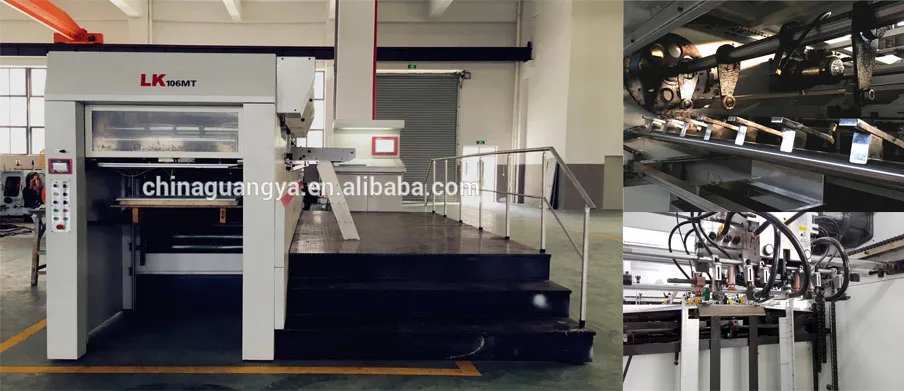

Detailed Images

Company Information

Our Services

1. We have professional sales and engineers, are ready to send emergency repair parts in 24hours,
easily damaged parts in 5 days with professional knowledge.

2. We focus on customer service, all year non-stop service, personal training and so on.

3. Not only provide customer service, but also pre-sales system,
including solution to product selection, storage of parts, technical guidance, operating training, exchange management platform and so on.

4. Realizing the idea of focusing on customer success, creating value to customer!

Trade Shows

Packaging & Shipping

FAQ

1). Q: Excuse me, are you a production company of an agent?
1): A: We are a regular production company, we have our own independent product workshop.

2). Q: What is the strength of your company?
2). A: Our company has been operating for 21 years, through continuously learning and improvement,our infrastructure of hardware and software has been greatly improved.

3). Q: What should I do if I buy your company's machine in case anything goes wrong?
3). A: All our products enjoy the benefits of one year warranty, and even send professional technicians for overseas maintenance.

4). Q: What is your company's credit standing?
4). A: Our company has obtained CE certification, and all exported products are subjected to strict customs inspection.

5). Q: If I want to buy your company's machines, can I do a field trip to your company?
5). A: Absolutely! We will arrange the time and hospitality for all foreign customers and provide the most convenient service.
