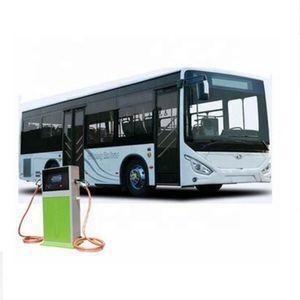

new zero emission 45 seat high speed bus electric bus
- 88900.00 unit
| ultra-long driving range: | 300km; | Front/rear overhang(mm: | 2230/2670; |
| Product name: | electric bus; | Wheelbase (mm): | 5600; |
| Brand Name: | LD; | Place of Origin: | Hubei China; |
| Dimensions (L x W x H) (mm): | 10500*2550*3150 mm; | Max Speed: | 71 - 90 km/h; |
| Steering Position: | LHD; | Manufacturer: | Shenzhen BAK; |
| Emission Standard: | Zero; | Seats: | 41 - 60; |
| Fuel Type: | Electric; | Motor layout: | rear; |
| Battery Type: | LiMn2O4 Lithium Battery; | Payment Terms: | L/C,T/T; |
| Factory set max . weight (kg): | 17400; | Port: | shanghai china; |
| Packaging Detail: | nude; | Supply Ability: | 20000 Unit/Units per Quarter; |
| Transmission Type: | Automatic; |
|
Overall specification |
Overall length (mm) |
10500 |
|
|
|
Overall width (mm) |
2550 |
|
|
|
Overall height (mm) |
3150 |
|
|
|
Wheelbase (mm) |
5600 |
|
|
|
Front/rear overhang (mm) |
2230/2670 |
|
|
|
Front/rear wheel tread (mm) |
2050/1865 |
|
|
|
Approach/departure angle |
7°/10° |
|
|
|
Max. GVW (kg) |
17400 |
|
|
|
Min. Turning diameter (m) |
11 |
|
|
|
Min. Ground clearance (mm) |
220 |
|
|
|
Max. Gradeability (%) |
≥18 |
|
|
|
Max. Speed (km/h) |
80 |
|
|
|
Max. Passenger capacity |
100/20-37 |
|
|
Driving specification |
Electric motor controller |
Controlling mode |
Turning Torque |
|
|
|
Model No. |
KTZ57X55SD01 |
|
|
Main motor |
Model No. |
TZ368XSD05 |
|
|
Driving battery |
Driving source |
BAK Battery Co., Ltd,battery LFP type |
|
|
|
Capacity |
175.3KWh(144Wh/Kg,637.3V/275Ah) |
|
|
|
Type |
Permanent magnet synchronous motor |
|
|
|
Peak power (kw) |
165KW /3000rpm/2500 N.m |
Detail picture
1.Integral body, advanced heavy city bus
2.Low entrance, wide aisle and 5600mm wheelbase
3.Ultra-large passenger capacity improves the economy
4.Ultra-large capacity battery and ultra-long driving range-300km
Charging Equipment
Shiyan RockRich Industry & Trade Co., Ltd. is a professional exporter of trucks,buses, special vehicles and parts. Our company is located in the Wudang Mountain Scenic Area and Shiyan Dongfeng commercial vehicle production base.We can provide 4X2,6X4,8X4 dumper truck ,tractor head truck, cargo truck and special trucks. Also provide 6 m to 12m city buses, coach buses, professional school buses, 4X4 off-road buses, trailer type RV, self-propelled RV etc. Currently, Our products have been sold to 20 overseas countries and regions, Marketing service network coverage Africa, Southeast Asia, Oceania, Latin America and Central and South America etc.
1. What is the warranty?
You can enjoy technical support by phone or email forever . We will provide a prompt solution. We also , offer the most convenient and efficient spare parts support with competitive price.
2. What is the delivery time?
The delivery time is usually within 15 workdays after we received your prepayment.
3. Do you provide customized service?
Yes. We offer customized service as you needs for the performance , included special requirements .
4. What is the payment method?
By TT ,L/C at sight and Trade Assurance , etc.
5. Why us ?
We guarantee professional one-stop service, competitive price with high performance and prompt response.
