KT6090 sealed co2 laser 60W/80W/100W/130W/150W engraving machine details
Certification:CE,FDA;Packaging Detail:Carton/Wooden case with foam inside.;
CNC or Not:No;Product name:C02 Laser Engraving Cutting Machine;
Place of Origin:Shandong China (Mainland);Applicable Material:Acrylic,Crytal,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood;
Payment Terms:L/C,T/T,Western Union,MoneyGram,Trade Assurance/OneTouch;Port:Qing dao / tainjin/ shenzheng port;
Cooling Mode:Water Cooling;Graphic Format Supported:AI,BMP,DST,DWG,DXF,DXP,LAS,PLT;
Brand Name:ketai;Application:Laser Engraving;
Laser power:60W/80W/100W/130W/150W;Supply Ability:1000 Set/Sets per Month;
After-sales Service Provided:Online support;Engraving Area:600*900mm;
Condition:New;Laser Type:CO2;
Model:KT6090;Software:CorelDraw;
Engraving Speed:0-1200mm/s;Dimension(L*W*H):L1360*W1010*H1050mm;
Warranty:1 Year;

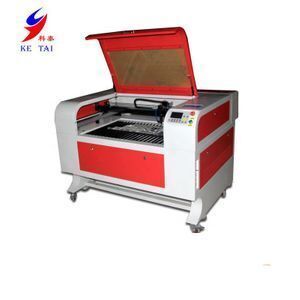

KT6090 co2 laser engraving machine

Product Description





+
Model KT6090
Working Area600*900MM
Laser power  60w, 80W, 100W, 130W, 150W
Laser Typesealed CO2 laser tube
Working Platformhoneycomb or  blade
Working Speed≤1000mm/s
Resolution Rate±0.05mm
Supported Graphic FormatsBMP,PLT,DST,AI,DXF,etc
Cooling Modewater cooling and protection system
Control SystemDSP System
Driving SystemStepper
Compatible softwareCorelDraw  AutoCAD  Photoshop
Working temperation0~45°C
Working Humidity5%~95% (without condensed water)
Dimension
 over 100* 60 *40 cm
Gross Weight over 60kg

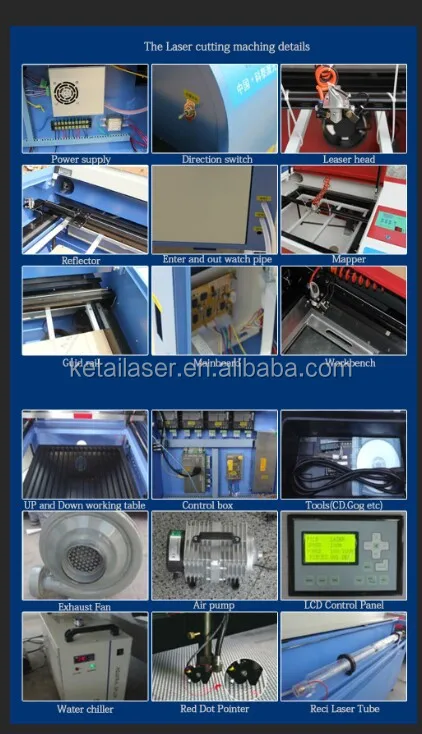

1. Adjustable Speed and Power, Smooth and Precise Engraving and Cutting

2. USB Interface, U-Flash Disk Supported, Can work without a PC.

3. Air Assist, Remove heat and combustible gases from the cutting surface.

4. Embedded Exhaust Fan, Easier intall, Safer transport.

5. Rotary Axis, Engrave any cylindrical object.

6. Cellular platform, Leave no chippings on working area.

7. Intuitive Control Panel, Set Speed, power and more controls directly from the laser.

8. Water Cooling and Protection System.

9. Lsser position.

10. Emergency Stop Button.

12. Lifting platform is electric control.

13. Drag - and - chain transmission line









Optional accessories of

1) Red-dot Pointer for Laser Head, for marking the laser shooting position at laser head during the laser engraving or cutting

 2) Industrial water chiller with better working performance than water pump

 3) Air Filter Cleaner with air filter to clean the dusts, ashes and smells produced from laser engraving or cutting

 4) Rotary Attachment for working with Round or Cylinder materials as Wine Bottles, Beer Cups, etc.

 5) lifting platform lifting platform can be carved objects within 5 cm height. platform  can be adjusted according to the height of the object height in order to make sure the focal length between the laser head to the object.without lifting platform

 6)automatic blowing flame retardantCan prevent laser tube overheating.  adding a switch at the piont of water entering in the laser tube to make sure a good security




1,Acrylic,Plexiglass Pmma Organic board Double Color Plate     2,Fabric,Cloth,Jeans,Cotton,Wool felt

3,Leather,Marten,Pig leather,Cow Leather,sheep leather              4,Bamboo,Wood,veneer,Plywood MDF

5,Paper,cardboard,press borad

6,Marble tile ceramic

 Application Industry

 1). The arts and crafts industry: wood, bamboo, bone, leather, marble and other materials shell carving exquisite designs and text head.

 2). Mainly used for color plate engraving, plexiglass engraving cutting, sign engraving, crystal, trophy engraving, sculpture and other licensing authority.

 3). Other Activities: marble, granite, glass, crystal and other decorative materials carving marks, paper cutting, greeting cards and other paper craft cutting.





Samples

 co2 laser engraving machine  for phone case /cover





laser engraving machine  for leather





laser engraving machine for acrylic





laser engraving machine for  clothes/macrame/



laser engraving machine for  stone imagine
