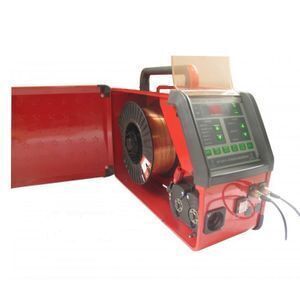

AWF-007 Multi-Function Automatic Digital Control Wire Feedin

Supplier: Guangzhou Dragon Welding Co., Limited
Region: Guangdong, China
Contact: Ms June Huang
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	T/T,Western Union;	Place of Origin:	Guangdong China (Mainland);
After-sales Service Provided:	Engineers available to service machinery overseas;	Max Material Thickness:	0.4-4.0MM;
Weight:	22KG;	Model Number:	AWF-007;
Supply Ability:	1000 Set/Sets per Month;	Welding Process:	TIG;
Packaging Detail:	Standard Export Flywood Case;	For Material Type:	Steel,Mild Steel,Stainless Steel,Aluminum,Copper Alloys;
Dimension (L x W x H):	420x270x570mm;	Port:	Guangzhou Port;
Blue and white:	automatic argon welding;	seam welder:	pipe seam welder;
Brand Name:	DRAGON WELDING;	Rated Output Current:	According to TIG Welder;

AWF-007 Multi-Function Automatic Digital Control Wire Feeding Machine

Main used for argon arc welding, laser welding, plasma welding, brazing welding process, without preheating wire filling equipment for the molten pool.

AWF-007 Multi-Function Automatic Digital Control Wire Feeding Machine

1, automatic wire filling speed can be adjusted continuously;

2, drawing the wire back function;

3, delay the wire feeding function;

4, pulse feeding function;

5,continuous wire feeding function;

6, dual drive wheel feeding system, applicable to a variety of wire diameter of wire

7, applicable to all kinds of argon arc welding machine;

8, greatly enhance the work efficiency, reduce labor intensity, save labors and equipment cost.

9, good welding effect is stable, improve the quality of products;

10, various function parameters of independent continuous adjustable.

11, adjusting the parameters with high accuracy.

12, the standardization of products and components, according to the actual application of matching.

13, can be widely used in aluminum alloy, stainless steel, welding of low carbon steel and non-ferrous metal and many other materials;

14, argon arc welding, laser welding and other welding methods.

15, and can be applied to artificial, the welding process automation and robot plane.

AWF-007 Multi-Function Automatic Digital Control Wire Feeding Machine

Voltage:AC220V 50hz/60hz

The number of phases: phase

HZ:50/60Hz

Motor: DC permanent magnet

Speed:1200rpm

Wire table size:305mm

Wire size:0.6mm,0.8mm,1.0mm,1.2mm,1.6mm,2.0mm

Wire feed speed range:0-800 cm/min

A pulsed wire feeding time: 0-10 Sec

Pulse pause time: 0-10 Sec

Time delay starting: 0-10 Sec

Back to silking time: 0-10 Sec

Power off time delay:0-5 Sec

Step control:4steps

External input voltage:DC 0~10V

Move the wire feeding speed:500 cm/min

Move back to the spinning speed:100 cm/min

High 420mm×wide 210 mm×length570 mm

Weight:22 kgz

Accuracy of speed:1%;

Our Products include Spot Welders,Butt Welders,Flash Butt Welders,Seam Welders,Medium Frequency Inverter DC

Welders,Single-phase/Three phase Secondary Rectifier Spot Welder,Wire Mesh Welding Machines,

Sink Producing Line,Automatic Argon Arc Seam Welding Machines,High/Ultrasonic/Medium Frequency Induction

Heating Machines,and other automatic equipments.

“Honesty, Practical work, Superior quality, Excellent service ”is our Corporate Culture.

The delivery time for standard machine is about 15-20days.(By Sea,by Air or by Express Way can be choosed)

7. FAQ

Q1: What does your factory produce ?

A: We produce and export all kinds of automatic welding machine and induction heating machine. We also can design and develop the welding machines according to your requirements.

Q2: What about your standard delivery date ?

A: Usually 5-7 days. Our company provide just-in-time delivery

Q3:Do your factory sale directly ?

A:YES,it is our factory sale directly,competitive price with high quality and excellent after-sale service.

Our quality products have been export to many countries,such as Germany,Russia,USA,Canada, Argentina,Peru,Turkey,Iran,Bazil,Spain,South Asia and Middle East countries.

Q4: Do you have CE Certificate?

A: YES,we have.

Q5: Can you export machines by your factory?

A; YES,we can.

Q6: Where are your factory?

A: Our factory located in Panyu District , Guangzhou City, Guangdong Province, China.

Q7: Will you send engineer to help installing the welding machine?

A : Yes, if need,we can send our engineer to go to your factory to help installing our welding machine, train the workers and make sure the welding machine running well before he leave.

Q8: If the machine get damaged, what can I do ?

A: In the guarantee time (1 year) , we will send the spare parts to you for free. And provide the technical consultant for anytime.if more terrible,we can send our engineers to your factory.

We will provide same good after-sale service as the pre-sale service, any of your questions,

we will be replied within 12 hours.
