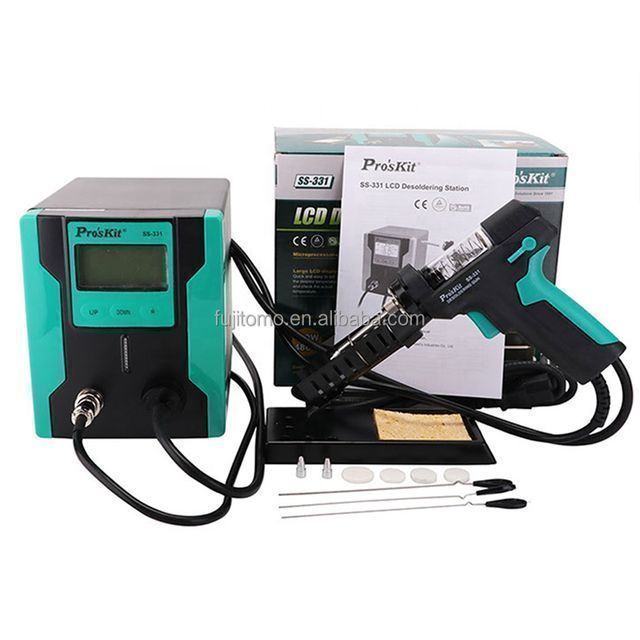

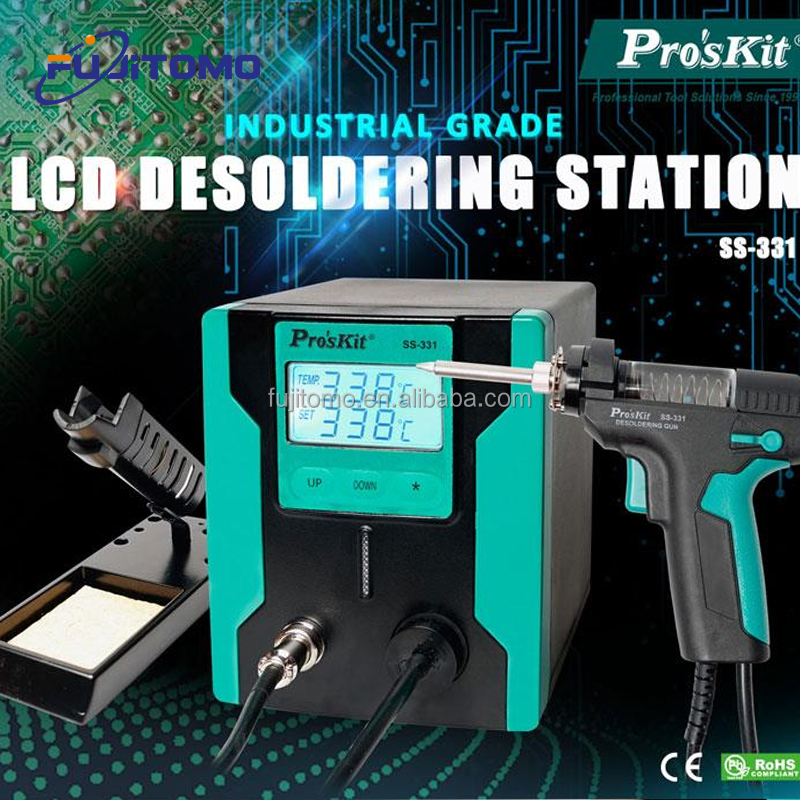

Pro's Kit ESD LCD digital electric tin suction pump BGA tin suction vacuum tin suction gun automatic sleep proskit ss331h
- 76.90 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Vacuum pressure: | >600 mmHg | Certification: | CE certification |
| Customization support: | Do not | Supply capacity: | 1000 sets per month |
| Warranty: | 1 year | place of origin; place of origin: | Guangdong, China |
| model: | SS-331 SS-331H, SS-331H | brand: | Pro'skit, proskit |
| temperature: | 160℃～480℃ | energy consumption: | 140W |
| new function: | auto sleep | Heating element: | ceramic heater |
| Package preview: | payment terms: | Western Union, L/C, D/P, D/A, T/T |

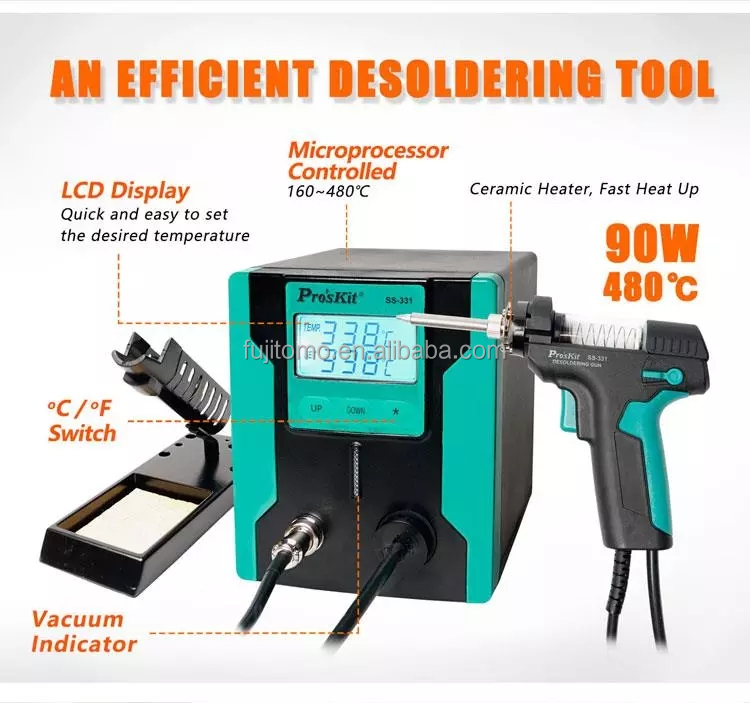

Product Description
Pro\'sKit has fully upgraded the explosive product SS-331H. After the upgrade, the function and performance of the product have been effectively improved.
The effect is doubled, and the automatic sleep function is added to effectively improve the service life.
notes:This product is 331H, which is 220v-240v version, but actually this product can be used with 110v-240v directly, so if you choose 110v, please don’t worry, just use it directly.
Specification
Voltage | 110V-240V~ 50Hz |
energy consumption | 140W |
Welding consumption | 90W |
temperature range | 160℃ ~ 480℃ |
Control System | microprocessor |
Vacuum pump system | air pump motor |
vacuum pressure | >600 mmHg |
Heating element | ceramic heater |
Insulation resistance | 100MΩ |
Ground resistance | 0.3Ω |
Cable/Hose Length | 105cm |
Power cord length | 1.2m (3-core ground plug) |
Certificate | Conforms to EU Directives |
Station size (mm) | 172 × 135 × 190 |
Weight (kg) | 1.6 |

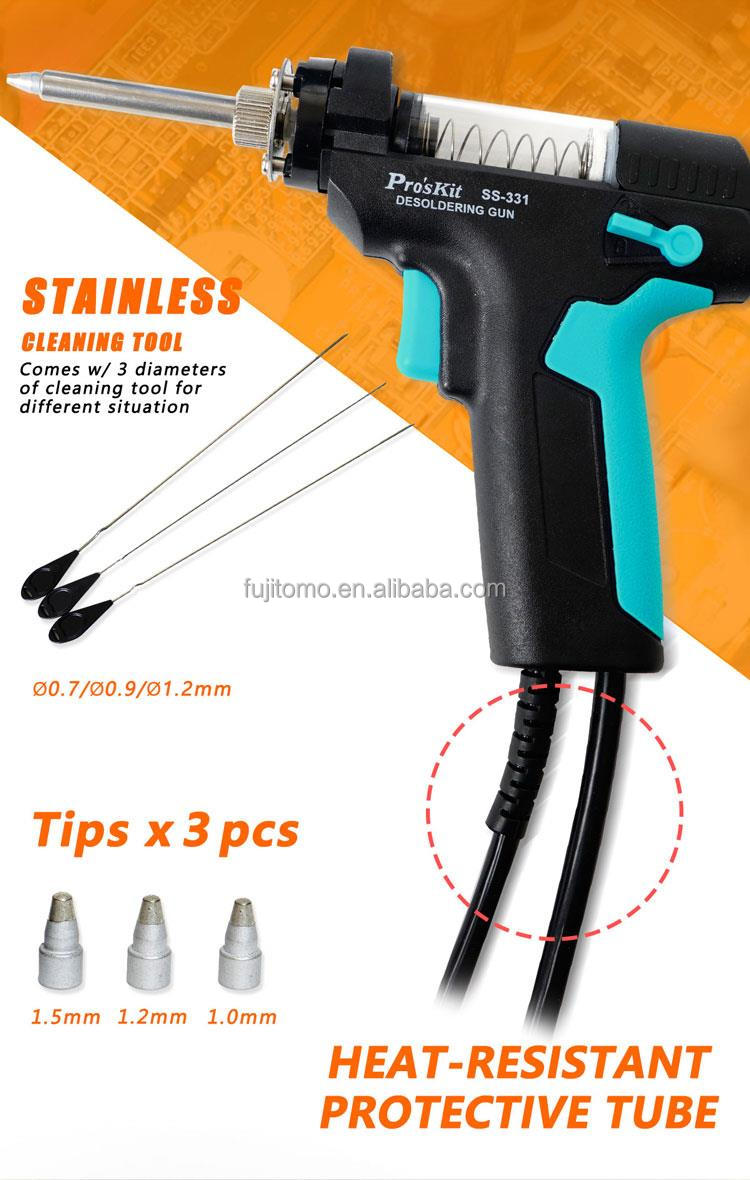

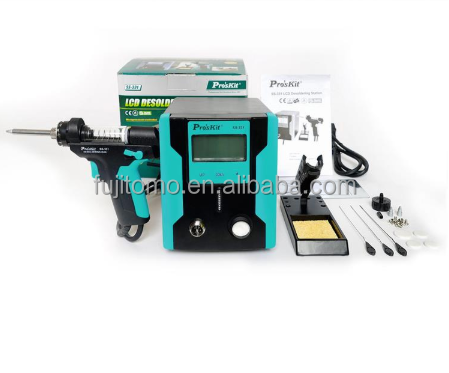

Accessories | Spare tip x 3: (ø1.2 (on the gun) ø1.0/ø1.5mm) Cleaning tool x 3 (ø0.7/ø0.9/ø1.2mm) Filter sponge x 4 (ø20.8x1+ø16.8x3 |
