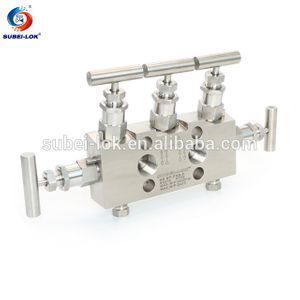

1/2 NPT SS316 6000PSI 3000PSI 5 Way Valve Manifold Water Oil
-
Supplier: Jiangsu Subei Valve Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms. lanlan wang -
Price: $25.68 /set -
Min. Order: 1 set
| Temperature of Media: | High Temperature; | Standard or Nonstandard: | Standard; |
| Working Temperature: | 240℃; | Media: | High Temperature&Pressure Oil,Water,and Gas; |
| Brand Name: | SUBEILOK; | Place of Origin: | Jiangsu China (Mainland); |
| OEM service: | Accepted; | Certificate: | ISO9001:2008;ISO14001:2008; |
| Product Modle: | SS 5F-FN8-F; | Brand Name: | Subeilok; |
| Warranty Period: | 18 Monthes; | Power: | Manual; |
| Structure: | Needle; | Application: | General; |
| Material: | Stainless Steel; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Port Size: | 1/4" to 1", 6mm to M20x1.5; | Model Number: | 5 Way Valve Manifold; |
| Pressure Class: | 6000PSI; | Pressure: | High Pressure; |
| Packaging Detail: | Wooden &Carton Case; According to customers'requirement.; | End Connection Type: | Flanged,Thread; |
| Supply Ability: | 2000 Set/Sets per Month; | Port: | Shanghai Port; |
| Material: | SS316,SS304 and other requirement; | Delivery Detail: | Shipped in 3 days after payment; |

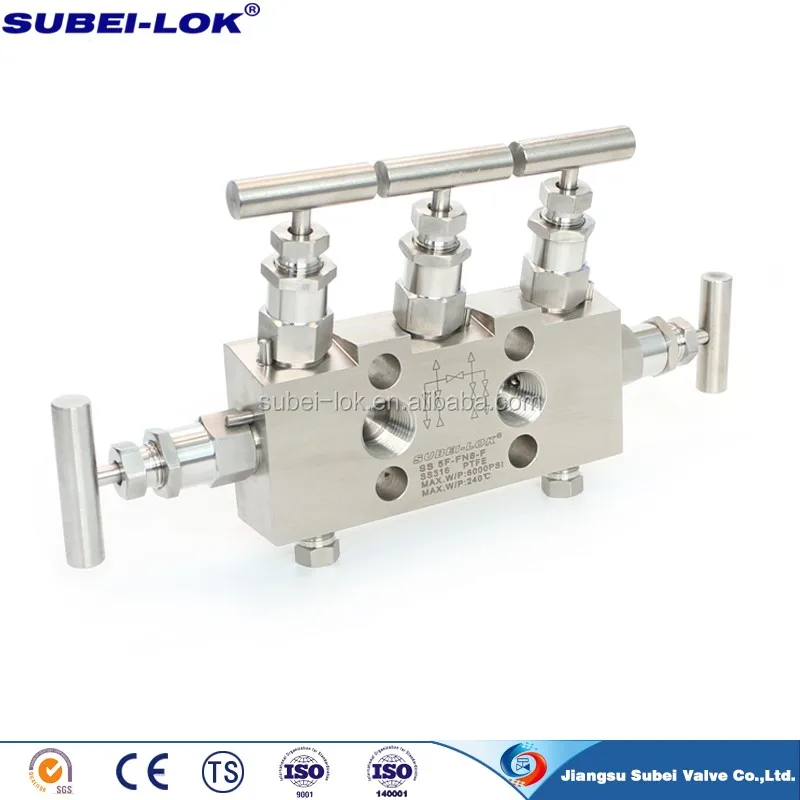

1/2 NPT SS316 6000PSI 3000PSI 5 Way Valve Manifold Water Oil Gas
| Item | SS316 SS304 3 Way Valve Natural Gas Manifolds |
| Brand | SUBEI-LOK |
| Medium | acid,water,oil,gas etc |
| Port Size | 1/4" to 1", 6mm to M20x1.5; |
| Flow Bore | 4.0mm(0.157in); |
| Flow Coefficient | Cv0.35 ; |
| Working Pressure | 6000PSI (414bar) for standard stainless steel body; 5000 PSI (345bar) for Monel 400; 6000PSI(413 bar) for Hastelloy C-276. |
Working Temperature | PTFE Packing:-65°F to 450°F (-54°C to 232°C); Graphite Packing:-65°F to 896°F (-54°C to 480°C); |
| Thread Standard | NPT,BSP,BSPT,G,SAE,PT,RP,ISO and etc |
| End Connection Type | Thread connection, Flange connection |
| Packing | PTFE,and Graphite |
| Material | stainless steel 316 / brass / Alloy400 |
Advange
1.instrument manifold are manufactured in accordance with ANSI B31.1, B31.3 and MSS-SP-105;
2.2-valve manifold are used with pressure gauges or pressure transmitters;
3.3-valve and 5-valve manifold are used with differential pressure transmitters;
4.Upper stem and lower stem design, Stem threads above packing protected from system media;
5.100% seal test under 10Mpa nitrogen before delivery;
5% seal teat under 1.5 times water pressure.
A1:Our main products are instrumentation valves&fittings: needle valves,ball valves,metering valve,check valves,globe valve,relief valve,multiport gauge valves,valve manifold,pipe fittings etc..
Q2.: Are you trading company or manufacturer ?
A: We are factory.
Q3.: How long is your delivery time?
A: Generally it is 2-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q4.: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample as request but not for free charge.
Q5.: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below.
Q6.:Can you advise suitable product to me?
A:According to your reply on Pressure,Temperature,Size,Connection Method and Flowing Medium,we will advise suitable goods to you with detailed parameters and prices.
Q7.:Do you offer customization or OEM service?
A:Yes. We offer OEM service. We accept custom design and we have a professional design team who can design products based on your requirements. And we can develop new products according to your samples or drawings. But if Brand OEM,please offer the brand letter of authorization to me for exporting later.
Q8.:How do you control the quality?
A:We will arrange sample confirmation before production. During the production, we have professional QC staffs control the quality and manufacture in accordance to the confirmed sample. We will also guarantee the accuracy of packaging and send you shipping sample.
