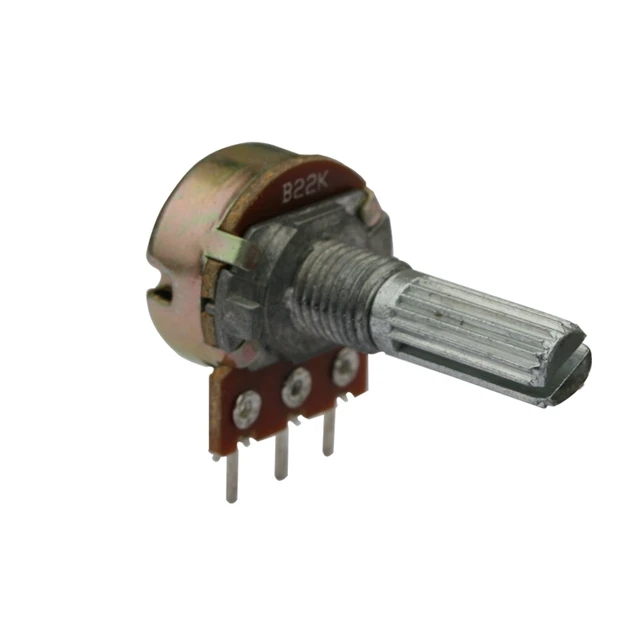

hot selling 100k 500k 20k 10k alpha rotary potentiometer for speaker
- 0.06 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Temperature Coefficient: | ±100ppm/°C; | Place of Origin: | Jiangsu China; |
| Model Number: | WH148-1A-2; | Resistive Material: | Carbon; |
| Shaft Size: | 0.236" (6.00mm); | Rated Power: | 0.125W; |
| Resistance: | 5K-2M; | Selling Units: | Single item; |
| Termination Style: | PC Pin; | D/C: | 20210301; |
| Adjustment Type: | Top Adjustment; | Single gross weight: | 0.04 KG; |
| Packaging Detail: | 2000PCS/CTN audio video amplifier 10k rotary potentiometer alps alpha cts radiohm potentiometer; | Termination: | pcb; |
| Actuator Diameter: | 0.236" (6.00mm); | Actuator Type: | Knurled and Slotted; |
| Resistance Tolerance: | 20%; | Single package size: | 2X3X4 cm; |
| Brand: | rotary potentiometer; | Power (Watts): | 0.25W; |
| Package / Case: | metal plastic; | Mounting Type: | pcb; |
| Brand Name: | SPIKE,KENNON; | Number of Turns: | 1; |
| Operating Temperature: | 100; | Type: | Rotary Potentiometer; |
| Technology: | Carbon Film; | Max. Operating Voltage: | 200V; |
| Diameter: | 16MM; | Tolerance: | ±20%; |
| Bushing Thread: | M7 x 0.75; | Built in Switch: | None; |
| Rotation: | 270°; |

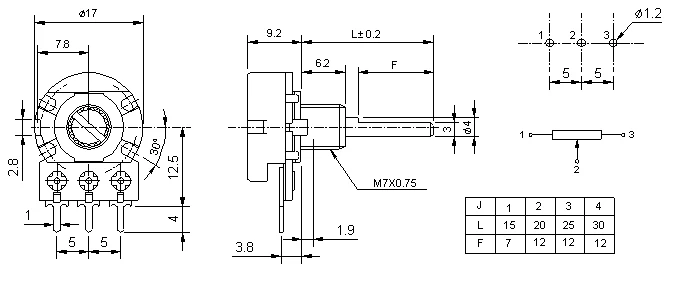

Product Description
|
ITEM |
SPECIFICATION |
|
|
Electrical Characteristics |
Temp Range |
-10℃~70℃ |
|
Rated Power |
Curve B:0.125W Other curve B:0.053W |
|
|
Max Operation Voltage |
Curve B:200V Other curve B:150V |
|
|
Resistance Range |
B250KΩ |
|
|
Allow Desistance Tolerance |
±20%(1MΩ or more30%) |
|
|
Rotational Noise |
≤47mV |
|
|
Terminal Resistance |
R≥250KΩ 0.1%R max 250KΩ>R>10KΩ 20Ωmax 10 KΩ≥R 10Ωmax |
|
|
Resistance Law |
A,B,C |
|
|
Dielectric |
AC500V,1minute |
|
|
Insulation Resistance |
More than 100MΩ at DC500V |
|
|
Mechanical Characteristics |
Rotational Torque |
2~20 mN.m(20~200gf.cm) |
|
Total Rotational Angle |
300°±5° |
|
|
Rotary life |
10,000 cycles |
|
|
Shaft Stopper Strength |
6Kgf.cm |
|
|
Push Pull Strength |
60 N |
|
|
Click position |
Center detent or 10,20,40 position clicks |
|
|
Soldering |
T≤260ºC,t≤3s |
|
