potentiometers

Supplier: Chengdu Cuanstar Union Technology Co., Ltd.
Region: Sichuan, China
Contact: Mr Li Wang
Price: $0.02 /piece
Min. Order: 1 piece

Click here to contact

Product details

Resistor Tolerance:	10%	model:	09
Packaging Details:	1000/pallet	port:	Shenzhen
Taper:	B, A, C	type:	Rotary potentiometer
product name:	Potentiometer	place of origin; place of origin:	Sichuan, China
Resist:	10~5M	brand:	CS
payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Trade Assurance, PayPal, Credit Card	rated power:	0.05W
axis:	18T knurled, flat, round	Advantage:	Small MOQ
Operating temperature:	55~+125	maximum. Operating Voltage:	500V
Key words:	carbon potentiometer	Delivery Details:	1-9 days
technology:	carbon composition	Supply capacity:	10000 pieces per week

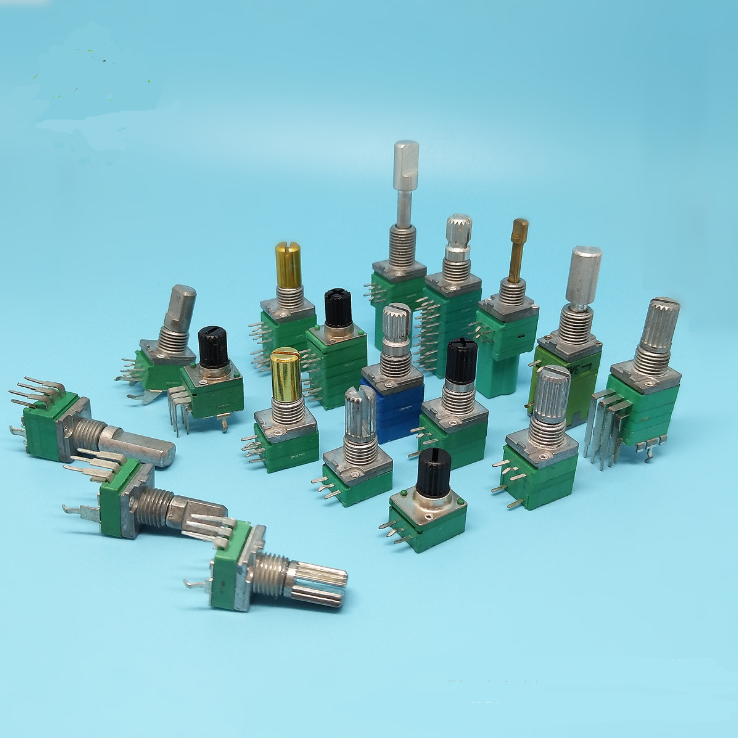

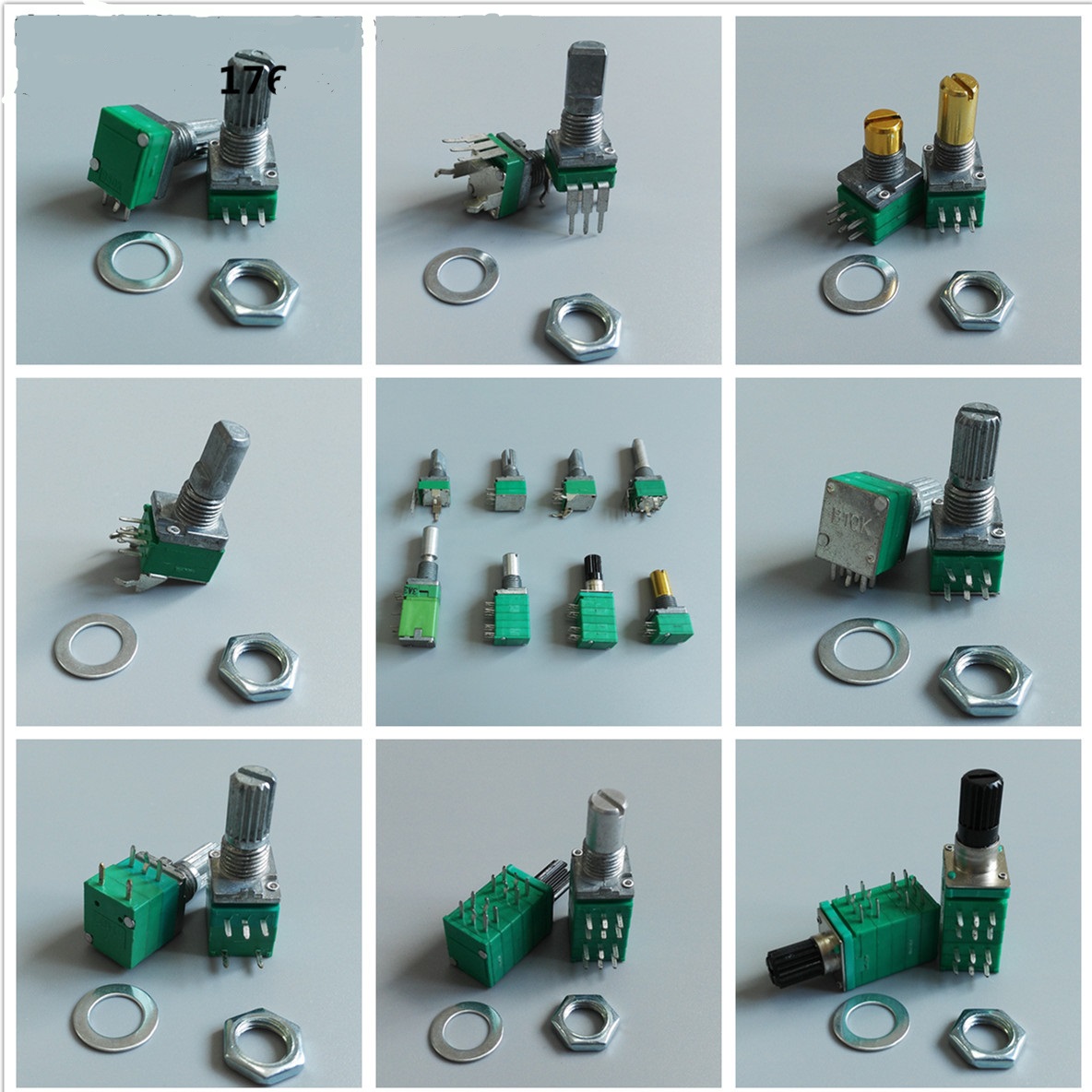

Potentiometer

Which one do you need?

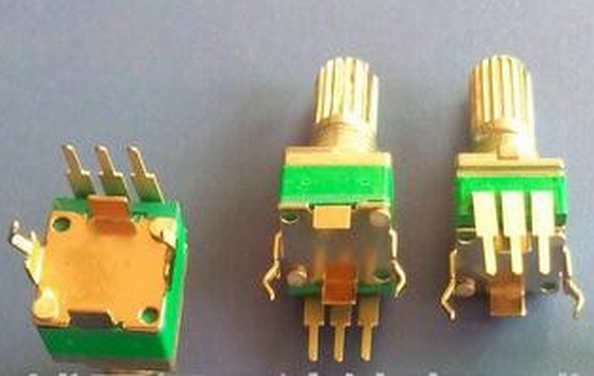

9mm single-gang linear single-turn digital potentiometer with metal shaft
Maximum working voltage: B cone 50V AC other cone 25V AC
Driving noise: 100mv
Rotation torque: 10~200gf.cm
Total rotation angle: 300°±10°
Rotation stop strength: 3Kgf.cm
Shaft strength: 8Kgf max.
Shaft shaking: 0.6×L/20mm pp max.
Resistance tolerance: ±20%
Resistance residual: R≤10KΩ 10Ω; 10K
Power: B taper 0.05W, other taper 0.025W
Insulation resistance: 100MΩ min. at 250V DC
Withstand voltage: 300V for 1 minute
