Prefabricated Concrete Roof Panel Forming Machine
- 3500.00 set
| Local Service Location: | Egypt,Turkey,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Thailand,Malaysia,Morocco,Argentina,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Uzbekistan,Tajikistan; | Panel thickness: | 120mm; |
| Production Capacity: | 1.2-1.4m/min; | Showroom Location: | None; |
| Machine color: | Customized; | Video outgoing-inspection: | Provided; |
| Main process: | Forming; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
| Marketing Type: | Hot Product 2019; | Port: | Tianjin/Qingdao; |
| Capacity: | 84 meters/hour; | After-sales Service Provided: | Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; |
| Dimension(L*W*H): | 2400X980X750mm; | Machinery Test Report: | Provided; |
| Machine material: | Steel structure; | Packaging Detail: | in standard packing for export; |
| Raw material: | Cement, sand and stone; | Place of Origin: | Shandong China; |
| Warranty: | 1 Year; | Advantage: | Durable parts; |
| Core Components: | PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump; | Supply Ability: | 200 Set/Sets per Month; |
| Warranty of core components: | 1 Year; | Power: | 8.5KW; |
| Certification: | ISO, CE; | Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Retail,Construction works ,Energy & Mining; |
| Key Selling Points: | Easy to Operate; | Brand Name: | WEIZHI; |
| Engine type: | Electric engine; | Weight: | 1200KG; |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram; | Voltage: | Customized; |
| Usage: | House floor and roof; | Panel width: | 600mm; |
| Package Preview: | ; | Condition: | New; |

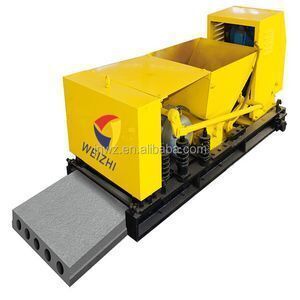

Prefabricated Concrete Roof Panel Forming Machine
Product description
The machine works on the concrete flat platform powered by the motor. The incompact materials are pushed into the forming place by the speed reducing convening and the slider’s repeatedly moving onstraight, then the materials push each other to air out.
Concrete panel usage

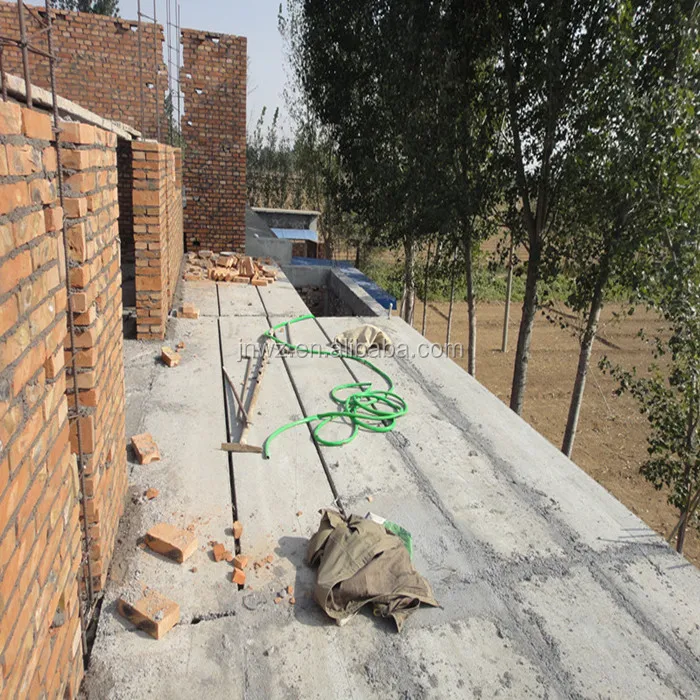

This kind of panel is the best and economical choice to produce high strength hollow core slab for workshop, school, hospital, shopping mall, office building, warehouse and residence.
Machine specifications (Your lab sizes can be customized)
|
Model |
Motor Power |
Vibrator Power |
Dimension (L*W*H) |
Weight (kg) |
Molding Speed(m/min) |
Holes (pcs) |
Hole Diameter(mm) |
|
120*600 |
5.5kw |
3kw |
2100*850*750 |
1050 |
1.2-1.4 |
5 |
Ø76 |
|
50*500 |
3kw |
0.8kw |
1800*750*650 |
700 |
1.2-1.4 |
8 |
Ø25 |
|
50/80*500 |
4kw |
1.5kw |
2030*730*660 |
930 |
1.2-1.4 |
7 |
Ø25 (Ø42) |
|
100*600 |
4kw |
2.2kw |
2100*850*730 |
975 |
1.2-1.4 |
6 |
Ø60 |
|
90*600 |
4kw |
2.2kw |
2100*840*730 |
955 |
1.2-1.4 |
6 |
Ø50 |
|
60/80*500 |
4kw |
1.5kw |
2030*830*660 |
910 |
1.2-1.4 |
7 |
Ø25 (Ø42) |
|
120*900 |
7.5kw |
3kw |
2500*1300*900 |
1580 |
1.2-1.4 |
8 |
Ø76 |
|
120*1200 |
7.5kw |
3kw |
2500*1700*900 |
1650 |
1.2-1.4 |
11 |
Ø76 |
|
180*600 |
7.5kw |
3kw |
2300*1100*950 |
1290 |
1.2-1.4 |
3 |
Ø130 |
Concrete panel machine whole production line

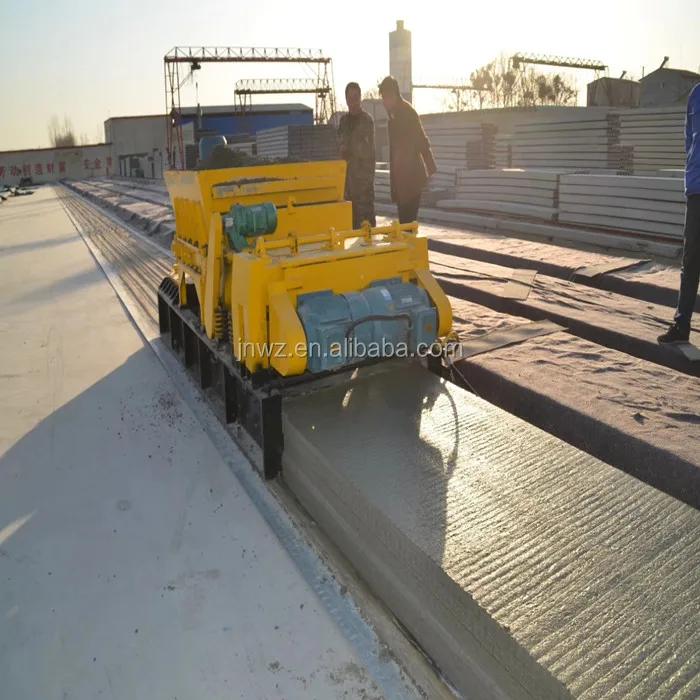

Concrete panel production from client

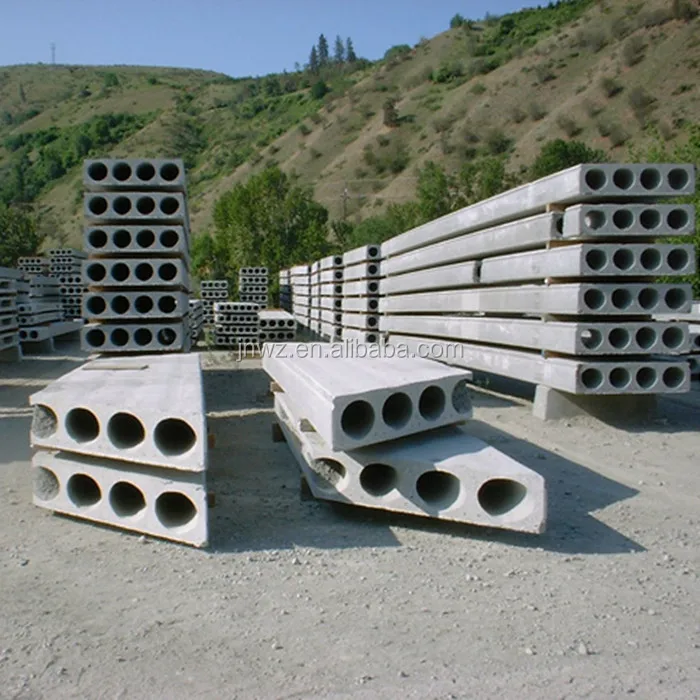

Finished panel from client

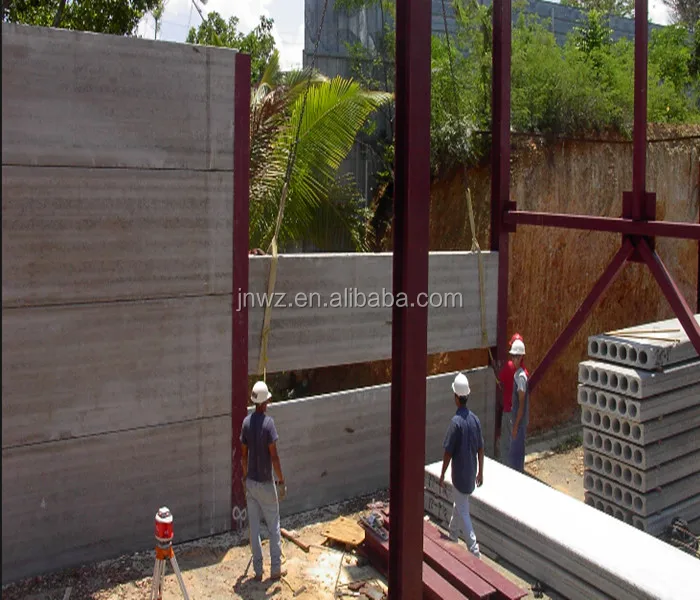

Concrete panel used for wall
Our Company

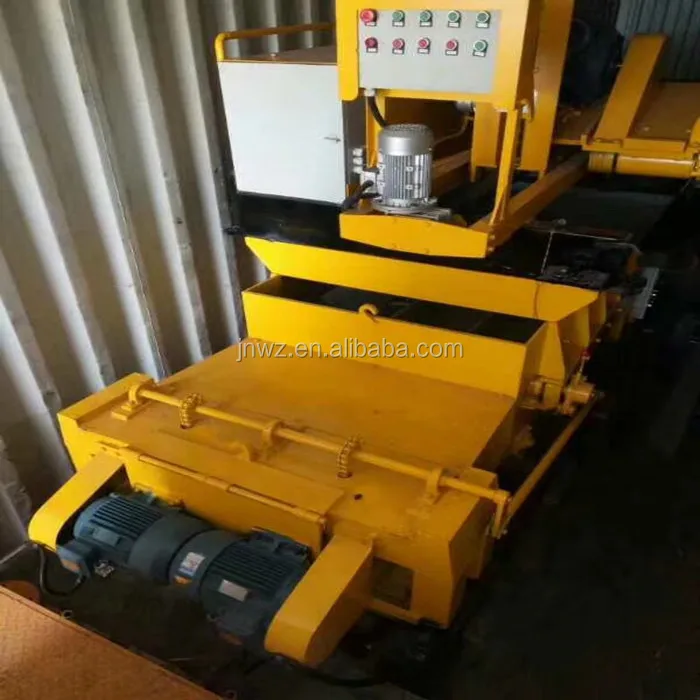

Packaging & Shipping
Clients visit our factory
Our Services
1. Customer visits and technical guidance provides 24-hour service and lifetime maintenance services, supply of spare parts.
2. Site church consumer operation, teach operating essentials, equipment maintenance and production experience, considerations.
