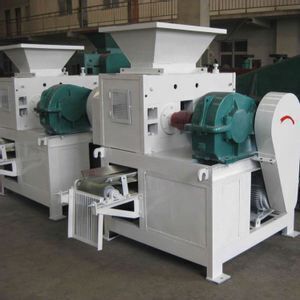

small size carbon steel charcoal/sawdust briquette machine for sale
-
Supplier: Gongyi Hengchang Metallurgical Building Material Equipments Plant -
Region: Henan, China -
Contact: Ms Freda P -
Price: $1950.00 /set -
Min. Order: 1 set
| Pressure type: | Hydraulic Pressure; | Payment Terms: | L/C,T/T; |
| Certification: | ISO9001-2015; | Color: | Client's Required; |
| Warranty: | 1 Year; | Core Components: | Engine,Bearing,Gearbox,Motor,Gear; |
| Production Capacity: | 1-2 t/h; | Brand Name: | Hengchang Machinary; |
| Applicable Industries: | Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Farms,Construction works ,Energy & Mining; | Port: | qingdao or tianjin; |
| Type: | Briquette Machines; | Marketing Type: | Hot Product 2019; |
| Package Preview: | ; | Dimension(L*W*H): | depend on model; |
| After-sales Service Provided: | Free spare parts,Online support,Video technical support; | Condition: | New; |
| Raw material: | Charcoal Powder; | Place of Origin: | Henan China; |
| Machinery Test Report: | Provided; | Video outgoing-inspection: | Provided; |
| Packaging Detail: | packed in wood case or customers' requirement.; | Name: | Briquette Making Machine; |

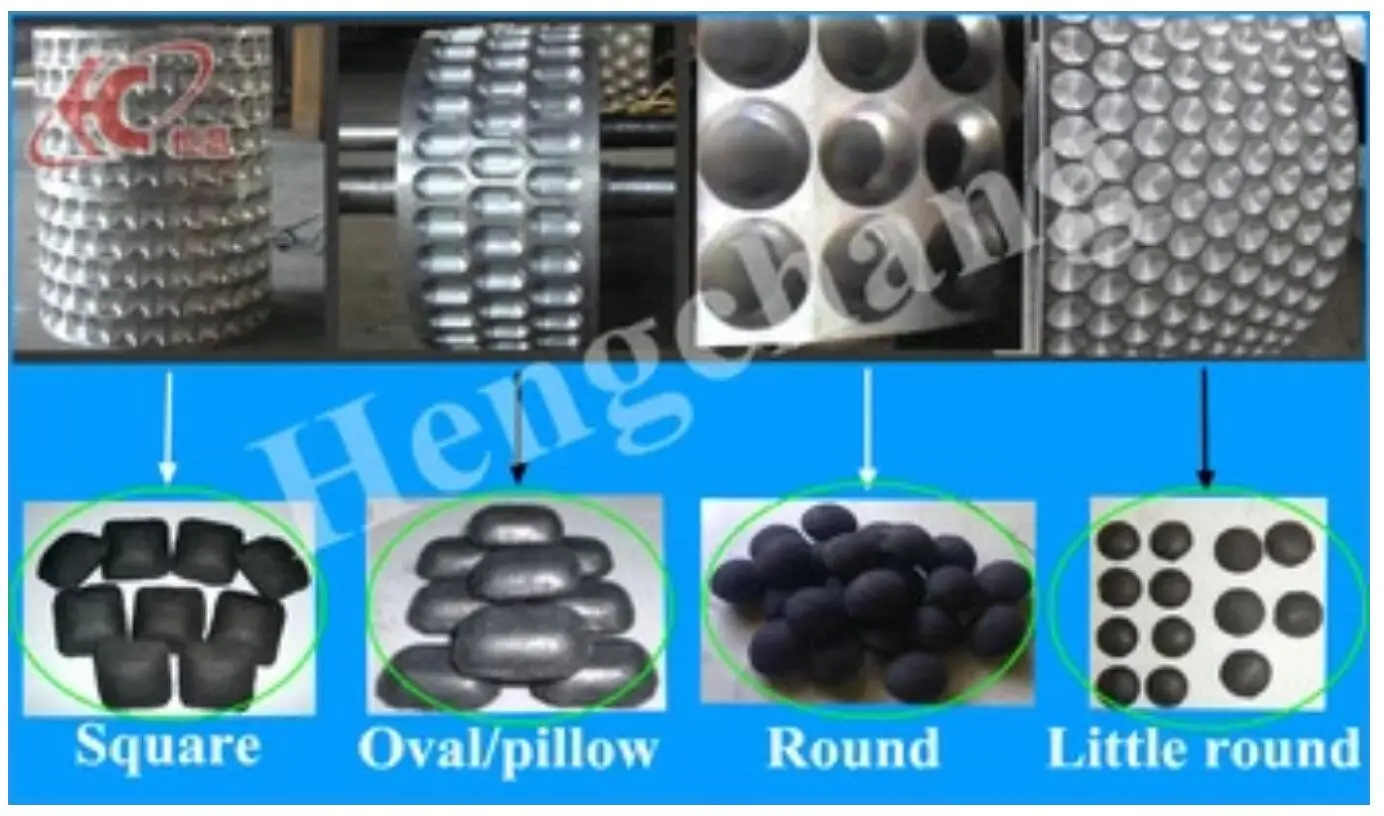

| Briquette shape: | Round Cylinder Square Hexagonal Pillow; | Application: | Briquette Production; |
| Warranty of core components: | 1 Year; | Showroom Location: | None; |
| Materials: | Carbon Steel; | Local Service Location: | None; |
| Product name: | Brequitte Making Machine; | Keyword: | Charcoal Coal Briquetting Machine; |
| Usage: | Coal Briquette Shaping Machine; | Motor Type: | AC Motor; |
Introduction of small size carbon steel charcoal/sawdust briquette machine
The briquette making machine is an advanced equipment which can press variety of coal charcoal powder, coal dust, coal slime, sawdust, coking coal, coke powder, aluminum powder, iron powder, iron scurf, iron oxide skin, active carbon, slag, gypsum, limestone, kaolin into different shapes of briquette.
The final product will be smokeless,non-toxic,no peculiar smell, environment protective and stong hardness. it is applicable to both outdoor or indoor barbecue with ventilation, and the heating time is twice longer than traditional.
Our factory have been in the industry since 1992, so we have rich experience of making briquette machine.
our briquette machine is suitable for civil and industrial coal production. It features in excellent technical performance, compact structure, reasonable assembly process, special alloy material rollers, and long life. It also solves the coal problems of low molding pressure and low strength of the production briquette in the coal briquette production process. It is the ideal equipment for coal briquette production.

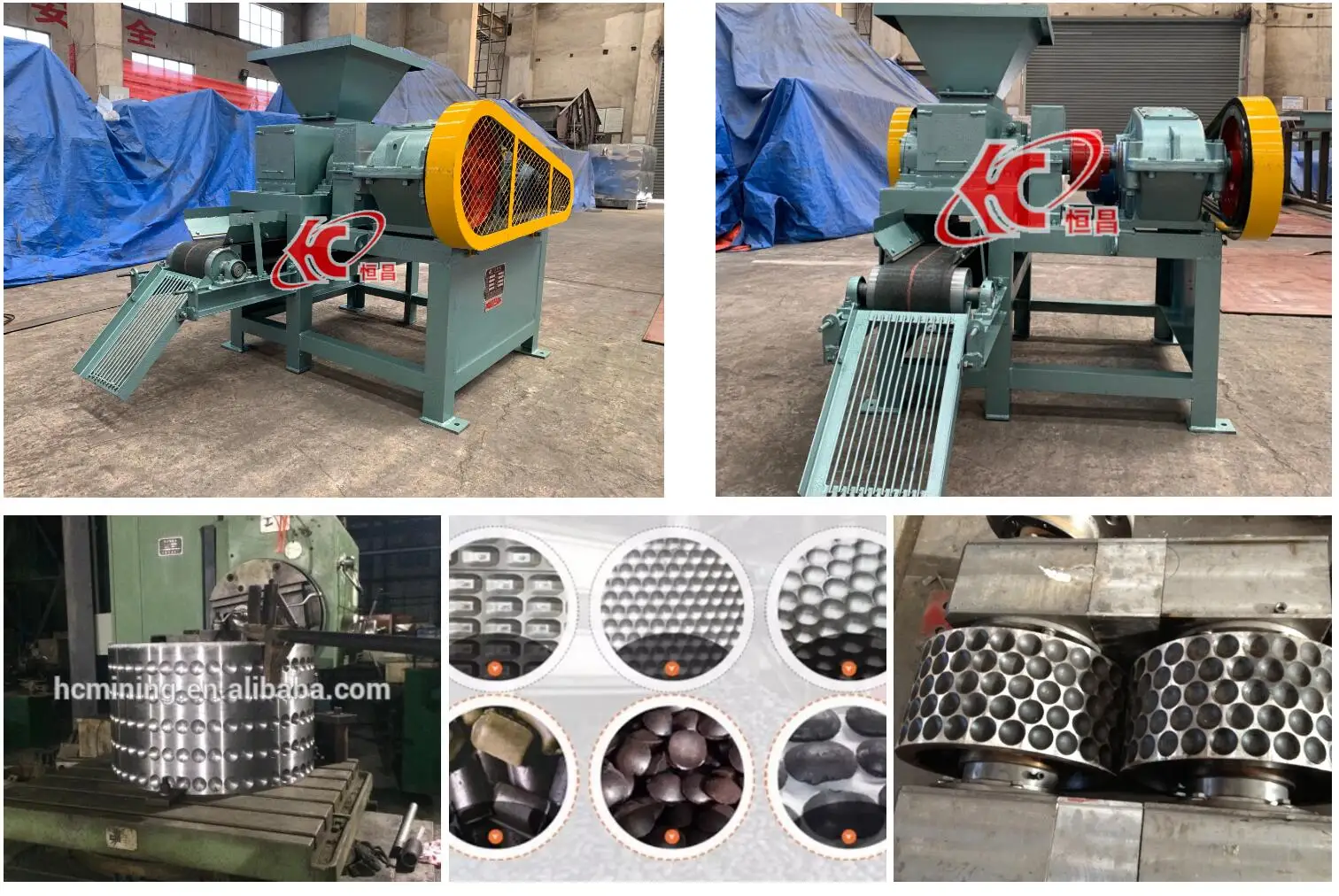

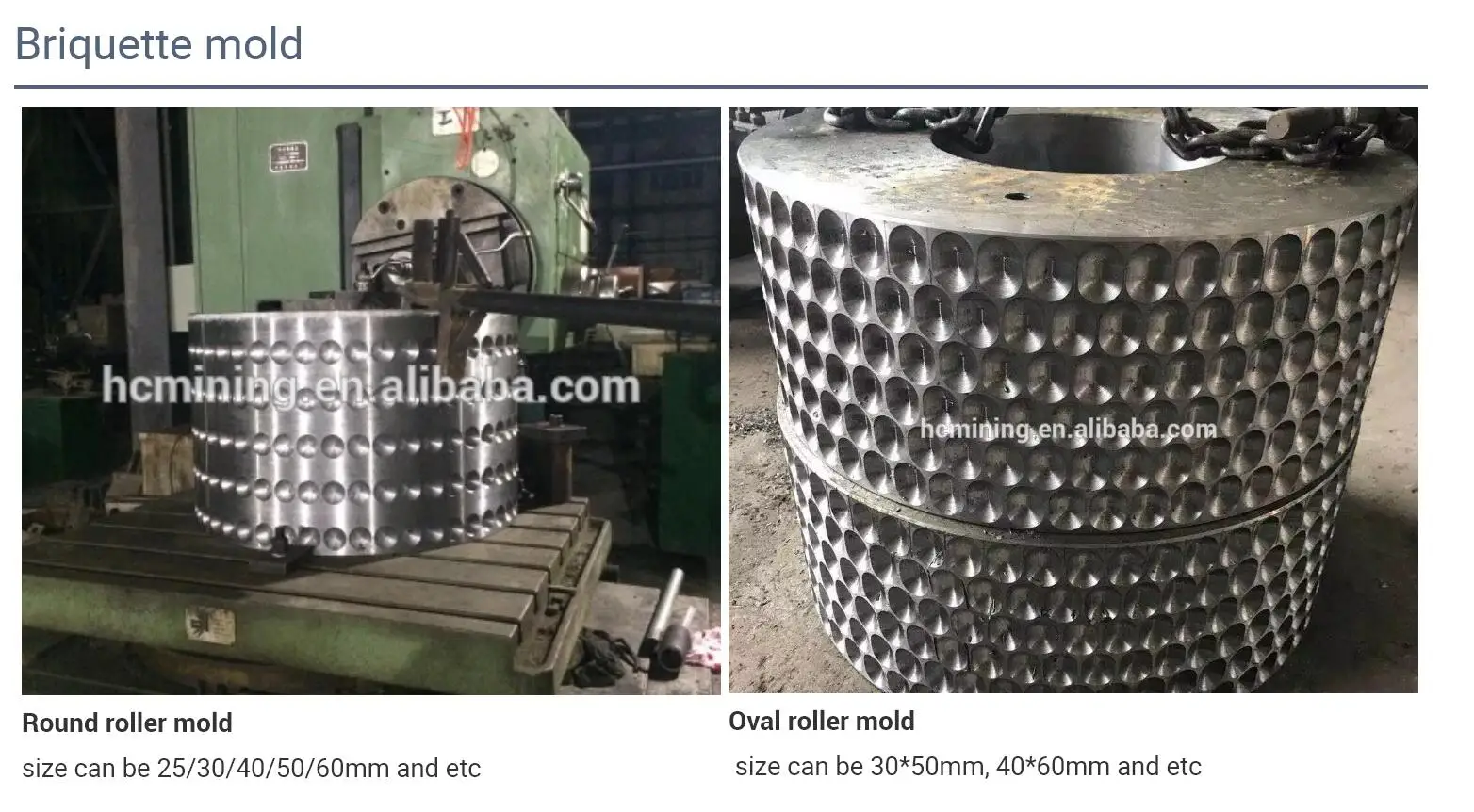

Main machine parts
Product advantages
1. Good price with CE ISO certificate.
2. Different type:roller type,hydraulic type, high pressure type coal briquette machine
3. Strong structure,high briquetting ratio because the briquette machine excellent design
it can be the single machine or whole production line.
4. Since the system out of the briquettes have desulfurization, reducing sulfur emissions, it is also conducive to environmental protection, the State Environmental Protection Agency emission reduction industry, civilian machinery
5. The device is superior technical performance, compact structure, reasonable assembly process, forming rolls made of special 65Mn, 9Cr2Mo, alloy materials, long life.
Operating principles
Our factory's briquette machine is very easy to operate, the briquette machine consist of the feeder hopper, motor, press roller (two molds) decelerator, gears and discharge.
there are mainly five steps of briquetting

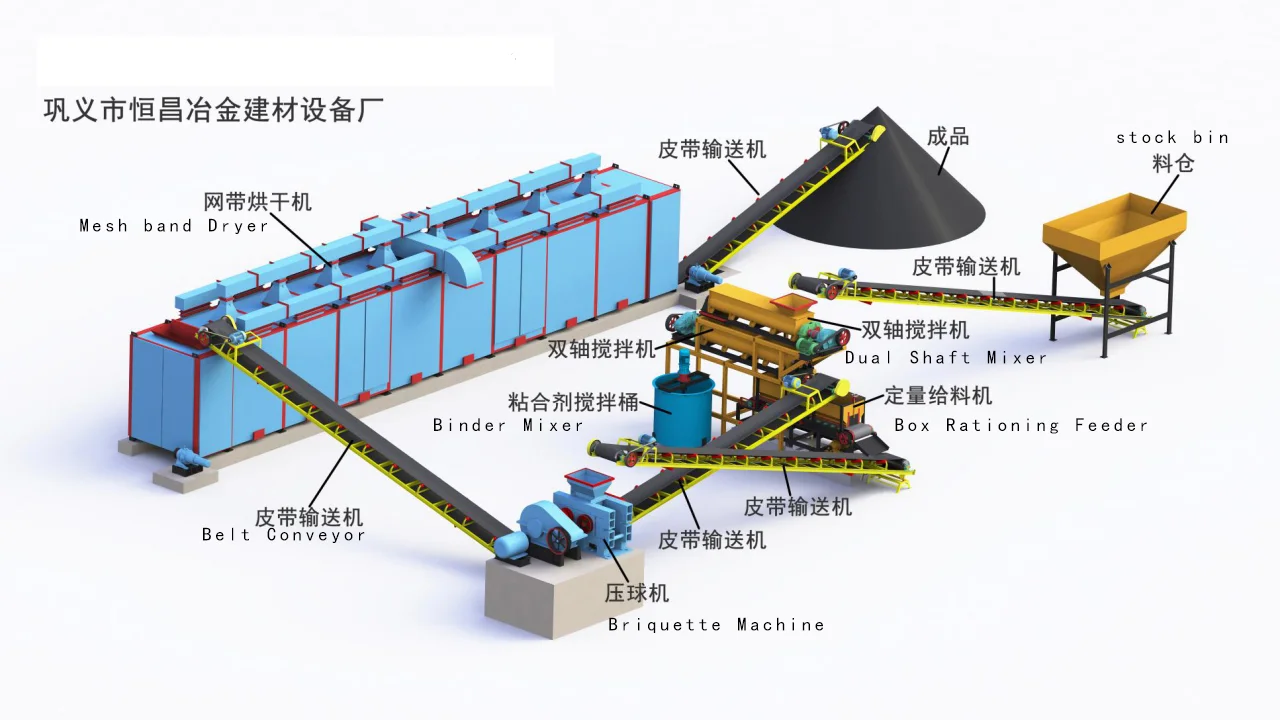

briquette machine briquettes making process can be devided into the following steps: Feeding-- crushing---- mixing------ ball pressing------ drying------final product.
Feeding and crushing: Feed the material into the compound crusher, to crush the material into the very small powder.
Mixing and briquetting: To fully mixing the powder in the dual shaft mixer and add the binder into the powder. Then the fully mixed powder will be feed into the briquette machine.To press the powder into ball shape that you required.
Drying: After the briquettes come out. It contains the humidity. you have to dry the ball become it come to the practical use. we can provide you the horizontal dryer or the vertical dryer to dry the briquette
Technical parameters
|
Model |
RollerDia.r(mm)
|
Roller Width (mm) |
Shaft Speed(r/min)
|
Reducer Model |
Pressure Form
|
Motor Power (kw) |
Capacity (t/h) |
|
YQJ-290 |
290 |
200 |
18 |
ZQ350 |
Constant Wedge Pressure |
5.5 |
1-2 |
|
YQJ-360 |
360 |
250 |
18 |
ZQ400 |
constant wedge pressure |
7.5 |
2-4 |
|
YQJ-400 |
400 |
250 |
18 |
ZQ400 |
Constant Wedge Pressure |
11 |
4-6 |
|
YQJ-500 |
500 |
300 |
13 |
ZQ500 |
Constant Wedge Pressure |
18.5 |
6-10 |
|
YQJ-650 |
650 |
336 |
13 |
ZQ650 |
Constant Wedge Pressure |
30 |
10-15 |

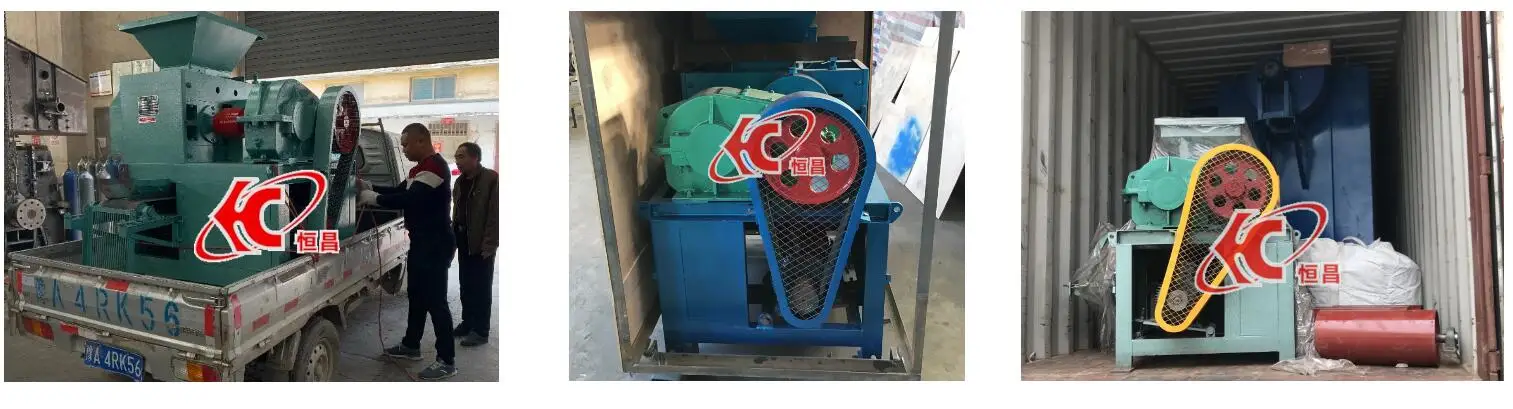

Product package
Our service
1) Installation and guidance
When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client's factory.
(2)Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
(3)Warranty:
Three guarantees of our product quality, warranty for one year (not include man-made damaged). We will maintain the machine for free for the quality problem. If the damage is caused by your improperly operation, the cost of the maintenance burden by you. we also provide you the life-long follow-up service.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 30% advanced payment by T/T, balance paid before shipment.
Why Choose Us?
1.We are true Manufacturer.
2.Alibaba Assessed Gold Supplier.
3.Inspected by the Inspection Institution of ISO CE Certification.
4.100% QC inspection Before Shipmeng.
5.Best Quality & Best Service with Competitive price
Contact us
If you want to know more details, please contact me!!
Website:http://www.hcmachinary.com
Wechat: 554065895
Tel: +86-15516999978
-
