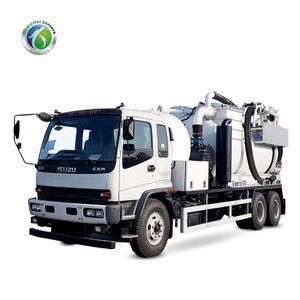

10CBM Industrial Dry and Wet Vacuum Truck for Sucking and Discharging

Product details
Bag filter unit:heat-resistant and anti-corrosion;Brand Name:Xiang Long;
Name:10CBM Industrial Dry and Wet Vacuum Truck for Sucking and Discharging;Package Preview:;
Payment Terms:L/C,T/T;Roots blower Brand:HIBON France;
Transmission Type:Automatic;Fuel Type:Diesel;
Air flow:5700CBM/h;Rear door:Hydraulically open and lock;
车身尺寸:10850X2490X3140mm;Suction boom:Remote controlled;
Suction hose:10m;Emission Standard:EURO 5;
Shipping method:Flat rack container;Gross Vehicle Weight:25000;
Horsepower:221kw;Condition:New;
Port:Shanghai Port;Tank Volume:15000L,15,000L;
Supply Ability:50 Unit/Units per Month;Packaging Detail:As customers reqired;
Tank Tipping angle:50degree;Place of Origin:Jiangsu China;

10CBM Industrial Dry and Wet Vacuum Truck for Sucking and Discharging

Product Description





Item

Description

  1

Make

DongFeng, SINOTRUK, ISUZU

2

PTO



Famous brand

3

Powder tank

Volume

10,000L

Material

16Mn mild steel

Tank shell thickness

6mm

Manhole

450mm

Designed pressure

-0.9bar

Inlet valve

6inch

Tipping angle

≥50degree

Rear door

Hydraulically open and lock



4



3 grades shut off

Float ball

SS304

solid material amount measurer



ultrasonic liquid level indicator

Works as double float ball, cut off vacuum pump once tank is full



5

Suction filtration system

Bag filter unit

32units of filters, with heat-resistant and anti-corrosion

Manhole

450mm



Filter mesh





6



Vacuum system

Brand

Hibbon

Type

Roots Blower

Power source

Driven by PTO

Vacuum level

-0.5bar

Air flow

5700cu.m3/h

Material dimension

15mm

Suction horizontal distance

≥50m

Silencer



7

Discharge system

Compressor brand

Outstanding brand

Working pressure

2bar

Discharge flow

500m3/h

Discharge ability

30-70t/h

Discharge height

15-30m

Outlet valve

4inch, SS304

Material left

≤2‰

Butterfly valves

SS304



8

Suction boom

Operation

Remote controlled retractable boom, 300degree horizontal rotation, max 6m working radius



Material

SS304

Knife valve

SS304, pneumatic control

Diameter

6inch

Suction hose

10m, can be lengthened to be above 50m

9

Hydraulic control

Pressurized oil pipe

SS304 pipe

10

Control box

Manual control and radio remote control

Pump and engine speed meters, pressure meters, switches, emergency stop,  boom control, English labels...



11

Painting

All steel parts are sand blasted before painting.

Passiviation

One coat of anti rust primer inside and outside of the tank

Two coat of finish painting.

Heat dry process

Color and logo on truck body advised by customer.
