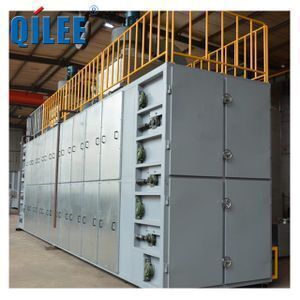

Steam dryer sewage sludge drying equipment

Supplier: Shanghai Qilee Environmental Protection Equipment Co., Ltd.
Region: Shanghai, China
Contact: Ms Tina miao
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Steam pressure(MPa):	0.3-0.6;	Brand Name:	QILEE;
Water removal(kg/24h):	22300;	Packaging Detail:	Steam dryer sewage sludge drying equipment is packed in standard export packing;
After-sales Service Provided:	Engineers available to service machinery overseas;	Structure type:	Assembled set;
voltage:	380V/50HZ;	Type:	steam dryer;
Place of Origin:	Shanghai China;	Product name:	drying equipment;
Pelletier motor(kw):	0.75;	Voltage:	220v/380v;
Warranty:	1 Year;	Port:	shanghai;
Condition:	New;	Supply Ability:	10 Set/Sets per Month;
Dimension(LWH):	15000024102458;	Model Number:	QB-S-2-15-5;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Material:	SUS304;
Delivery Detail:	Shipped in 60 days after payment;	Drying driver motor(kw):	0.75*5;
Certification:	CE ISO;	Circulation fan power(kw):	55;
Weight:	18;	Water removal(kg/h):	930;
Power:	750W;

Product Category

PRODUCT
CATEGORIES

Sludge dewatering machine

Belt filter press

Screw filter press

Powder dosing system

Industrial RO water treatment system

Sludge drying machine

Metering chemical dosing pump

Water Analysis Equipment

→ VIEW ALL

Screw filter press

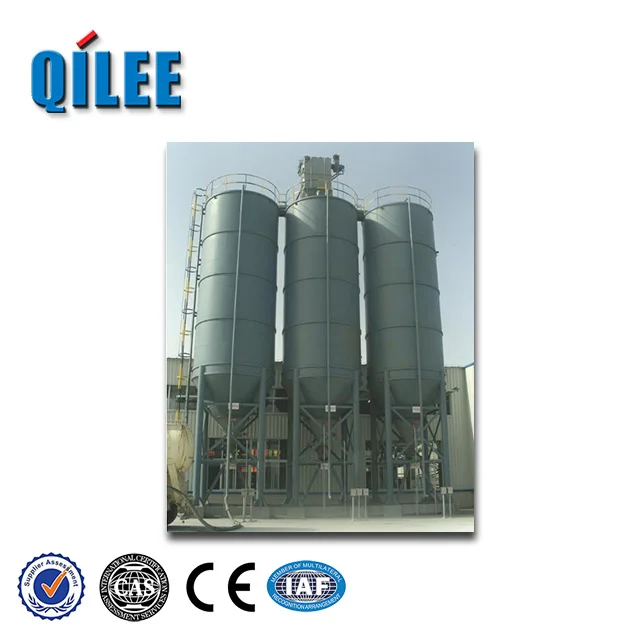

Powder dosing system

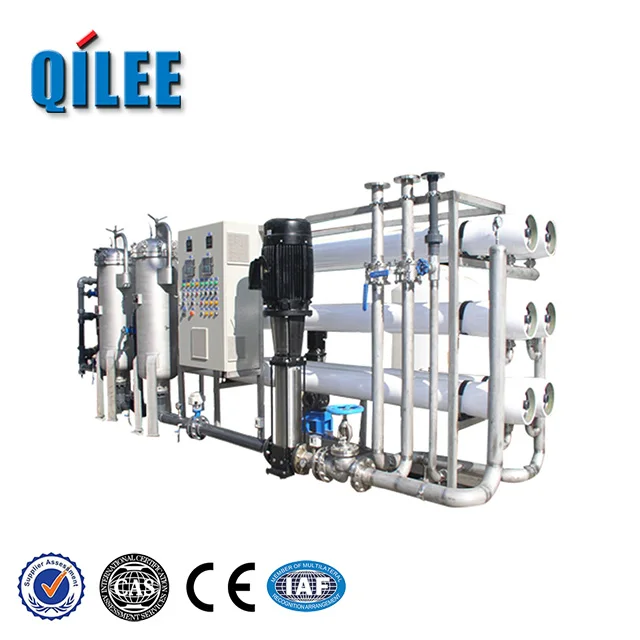

Industrial RO water treatment system

Sludge drying machine

Steam dryer sewage sludge drying equipment

Product Description

Drying equipment Features:
1.The water content rate of the discharged sludge can be less than 10%. And the maximum sludge volume reduction can be more than 85%.
2.High thermal efficiency. Less than 1 ton steam consumption for 1 ton wet sludge.
3.It occupies a small area. Equipment for treating capacity of 100ton/day wet sludge occupies less than 500m2.
4.Drying under low temperture make sure the small volatile quantity of organics.
5.Thorough and mature tail gas treatment technology.
6.Standardized design and easy to install in site. Made of stainless steel ensures the service life more than 15 years.

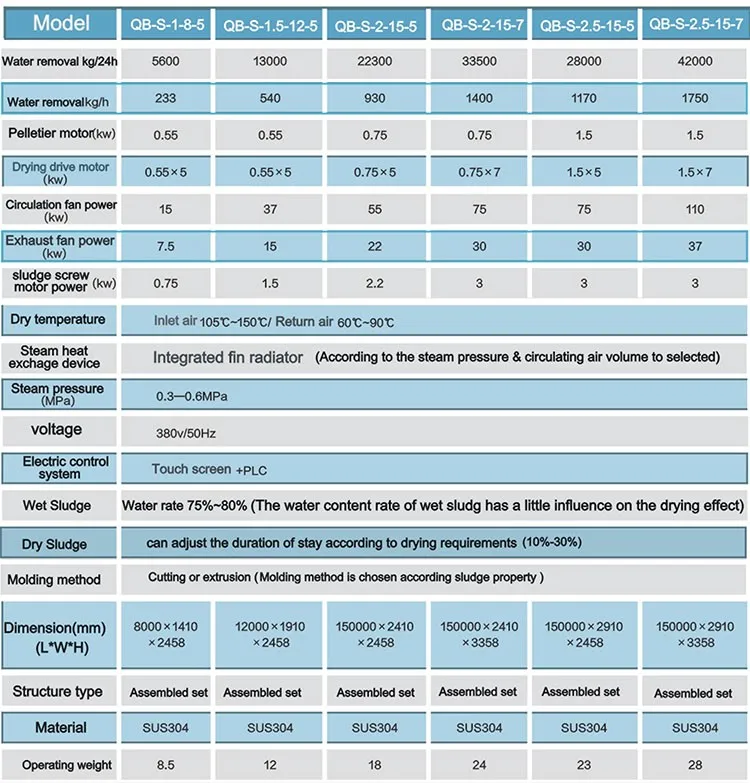

Drying equipment selection of models:

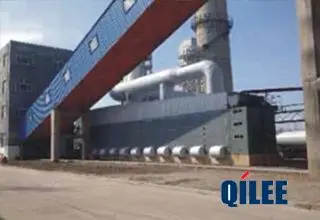

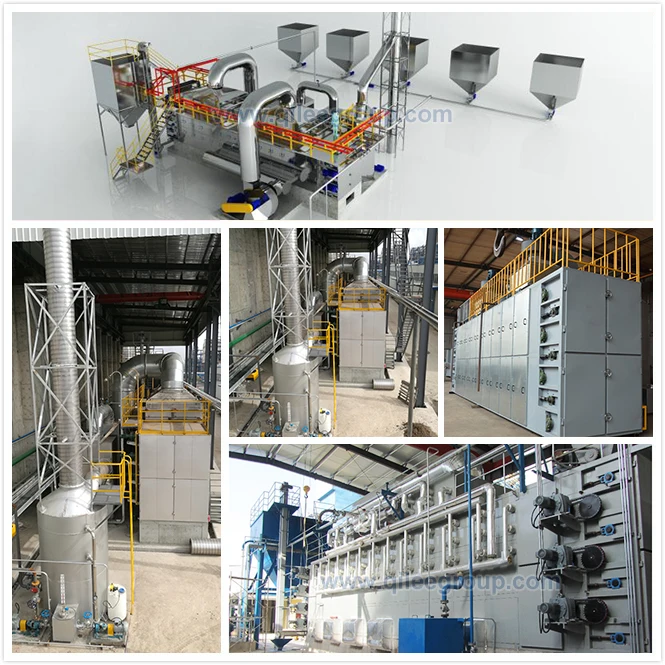

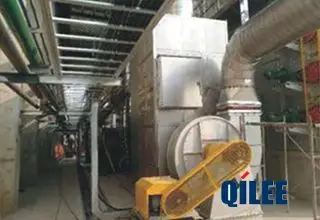

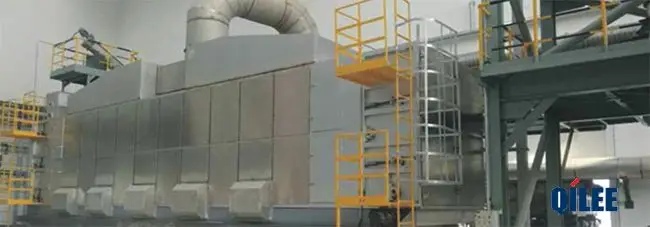

Drying equipment Examples:


Type of sludge: Municipal sludge Dewatering machine used: belt press Wet sludge capacity: 68t/d Moisture rate before drying: 75% Moisture rate after drying: <15%

Type of sludge: Paper & pulp sludge Dewatering machine used: centrifuge press Wet sludge capacity: 35t/d Moisture rate before drying: 80% Moisture rate after drying: <10%	Type of sludge: PTA sludge Dewatering machine used: belt press Wet sludge capacity: 35t/d Moisture rate before drying: 80% Moisture rate after drying: <10%
