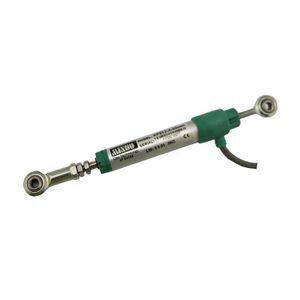

KPZ12-A-25mm 0-12V Conductive Plastic Linear Position Motion Crack meter Linear scale details
Resistance Tolerance:20%;Brand Name:MINUO;
Packaging Detail:Packaging Details: Each linear sensor was packed in every cardboard tube. Delivery Detail: Shipped in 2 days after payment;Warranty:12 months;
Temperature range:-50℃--+120℃;Resistance:1K/5K OHM,1K ohm, 5K ohm;
Selling Units:Single item;Factory:15years;
Single gross weight:0.2 KG;Install fitting:free;
Model Number:KPZ12-A-25mm;Place of Origin:Guangdong China;
Operating Temperature:55 ~+125;Rated Power:0.5W,0.5 w;
Delivery time:Stock;Technology:Carbon Film;
Output:0-5V,0-10V,0-12V,0-24V,4-20mA;Max. Operating Voltage:24 V;
Single package size:18X4X4 cm;Input:5V,10V,12V,24V;
Type:Slide Potentiometer;

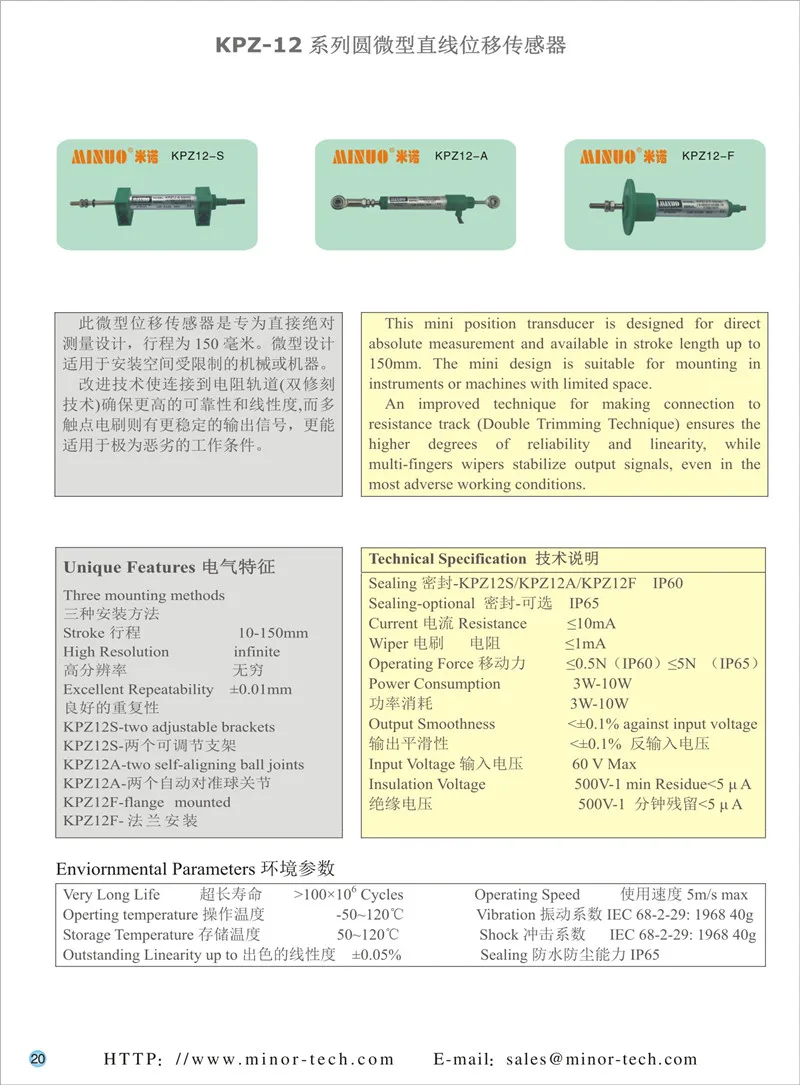

                                                  KPZ Linear Position Sensor and Components

Standard Dimensions:

                           This mini position transducer is designed for direct absolute measurement and available in stroke length up to 150mm. The mini design is suitable for mounting in instruments or machines with limited space.

      An improved technique for making connection to resistance track (Double Trimming Technique) ensures the higher degrees of reliability and linearity, while multi-fingers wipers stabilize output signals, even in the most adverse working conditions.


Output signal mode



+
Output signal mode
A.Resistance: 1K,2K, 5K,10K,20K Ω
B.Current: 4-20mA
C.Power: 5V,10V,12V,24V
D.Related digital indicator: up-limit and bottom-limit setting function
 (relay output, analogue, RS232/485 interface)



Product Characterist

1.Simple structure, small size, light weight, affordable, but with stable and high

   precision quality.

2.Less impact generated by the environment (Such as temperature, humidity,

   magnetic interfere etc).

3.Any function of input and output can be implemented.

4.Strong output signal, normally no need to additional amplifier.

5.Suitable for the condition which any optical rule or rotary encode can not be used.

6.Easily installing and maintaining.

7.Save mechanical costs about 30%



Application Range

     Apply to a lot of industrial branch, especially in OEM market, such as: Plastic (Injecting

molding machine), glass machine, printing machine, medical machine, wood and coal

mine machine and so on.

    MINUO products can be used with PLC industrial control systems, servo, frequency

converter, singlechip microcomputer, supporting the use of achieve frequency control,

the precise position detection and control signal feedback ect.
