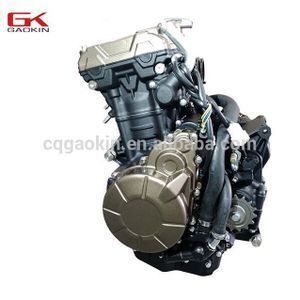

500CC Inline Two Cylinder Motorcycle Engine

Supplier: Chongqing Gaokin Industry Co., Ltd.
Region: Chongqing, China
Contact: Ms Nicole li
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	Gaokin;	Cold Style:	Water-cooled;
Start:	Electric;	Packaging Detail:	Wooden case;
Displacement (ml):	500CC;	Ignition Method:	CDI;
Cylinder NO.:	2 CYLINDER;	Supply Ability:	30000 Set/Sets per Year;
Place of Origin:	Chongqing China;	Delivery Detail:	30-45 days;
Model Number:	500CC;	Port:	Chongqing;
Payment Terms:	T/T;	Stroke:	4 Stroke;

486CC Inline Two Cylinder Motorcycle Engine

1.Gaokin mainly produce large displacement engine ( 300CC to 1100CC) and transmission system products(gear box, CVT, differential). Moreover, we can reserch and develop the products as per customers’ requirement, both forward-engineer and reverse-engineer.

2. Gaokin compliance TS16949, ISO9001, ISO14001, OHSAS18001 etc system certification, also bulit a complete quality operating system. Our engines after matched vehicle exhaust system reached and passed the EU IV emission certification.

NO.	Twin cylinder integrated engine(Including Gearbox)
1	Engine type	4 stroke,two cylinder,water cooling,8 valve
2	Engine displacement	486cc
3	Bore dia. X Stroke mm*mm	68*67
4	Compression	10.7:1
5	Max. power & RPM kW(Hp)/rpm	35.3(48)/8000
6	Max. torque & RPM N.m/rpm	45.3/6000
7	Min. fuel consumption g /Kw.h	≤270
8	Min. Idling stable RPM r/min	1250±100
9	Electric Generator type	Permanent magnet AC type
10	Magnetor generated power W	>420
11	Engine wire harness	Delphi EFI system
12	Oil filter type	Primary filtration + refined filtration
13	Gasoline grade	Above 92#
14	Lubrication oil grade	Above SG grade
15	Lubrication oil total volume	3L
16	Fuel pressure bar	3.5
17	Lubrication type	Pressure + Splash
18	Start type	Electric Start
19	Transmission type	Foot control,Forward International 6 Gears
20	Clutch type	Oil bath multi-disc type
21	Primary Transmission Ratio	2.03
22	Output type	Chain Transmission
23	Outline dimension (a×b×h) mm	See drawing
24	Mounting dimension	See drawing
25	Total N.W Kg	55
26	Applied to Vehicle	Two-wheel Vehicle

Engine Dimensions

486cc Engine	a	b	c	d	e	f	g	h	i	j	k	m	n
486cc Engine	432	569	133	76	415	279	225	106	83	266	156	193	68

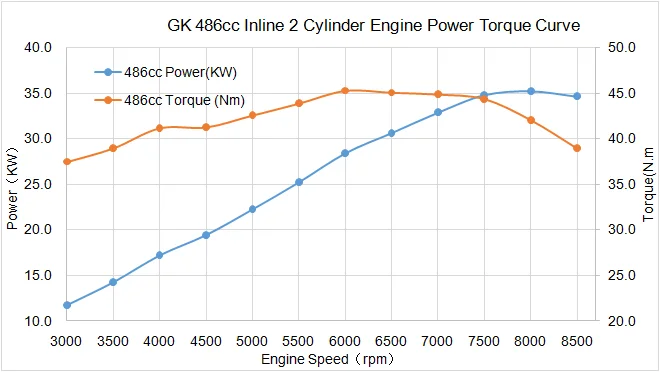

486cc power OR torque

Speed (rpm)	486cc Power(KW)	486cc Torque (Nm)
3000	11.8	37.5
3500	14.3	39.0
4000	17.2	41.2
4500	19.5	41.3
5000	22.3	42.6
5500	25.3	43.9
6000	28.4	45.3
6500	30.7	45.1
7000	32.9	44.9
7500	34.8	44.4
8000	35.3	42.1
8500	34.7	39.0
