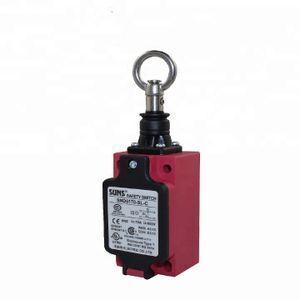

Waterproof Pull Cord Safety Switch

Product details
Contact Resistance:<25mΩ(Initial Value);Insulation Resistance:>100mΩ@500V DC;
Mechanical Life:10,000,000 Operations;Supply Ability:100000 Piece/Pieces per Month;
Humidity:95% RH Max;Max. Current:10A;
Operating Speed:0.05mm-0.5m/sec;Weight:400~450g;
Max. Voltage:600V;Port:Xiamen;
Place of Origin:Fujian China;Contacts:Galvanically Seperated;
Payment Terms:L/C,T/T;Model Number:SND6170;
Electric Life:500,000 Operations;NC Contacts:Positive Opening;
Operating Temperature:-25~+80℃;Packaging Detail:Packaging: 1 Unit/Box, 50 Boxes/Ctn Dimension (mm): Box 162*62*41, Carton 360*220*330;
Body:Metal;Protection Level:IP67;
Brand Name:SUNS;

Basic Parameters:  Waterproof Cable Pull Safety Switch

Features: 10A cord switch
1)Zn/Al die cast body
2)Increased wiring space
3)Earth grounding surface on same level as switching
4)Easily interchangeable contact block
5)Fine adjustment of switching point via adjusting screw
6)Galvanically separated contacts
7Screw terminals with self-lifting clamps for easy wiring
8Positive Opening of NC contacts
94×90º actuator positions
10Cable entry available: M20, PG13.5 and 1/2NPT
11Conform to EN 50041 standard
12UL CSA CE CCC Approved
Specifications:
Operating Speed: 0.05mm-0.5m/sec
Operating Frequency: Mechanical: 120ops/min Electrical: 30ops/min
Insulation Resistance: >100mΩ@500V DC
Contact Resistance: <25mΩ
Rated Current/Voltage: 10A/600V AC (EN60947-5-1)
UL/cUL Listed (E216958) AC15 A600/DC13 Q300
Dielectric Strength: 1000VAC for 1 min between current carrying parts
2500VAC for 1 min between non-current carrying parts
Service Life: Mechanically 1.0×107 (operations)
 Electrically  5×105 (operations)
Operating Temperature: -25~+80℃ (-13~+176°F) without formation of ice
Humidity: <95%RH
Weight: 400-500g
Degree of Protection: IP67

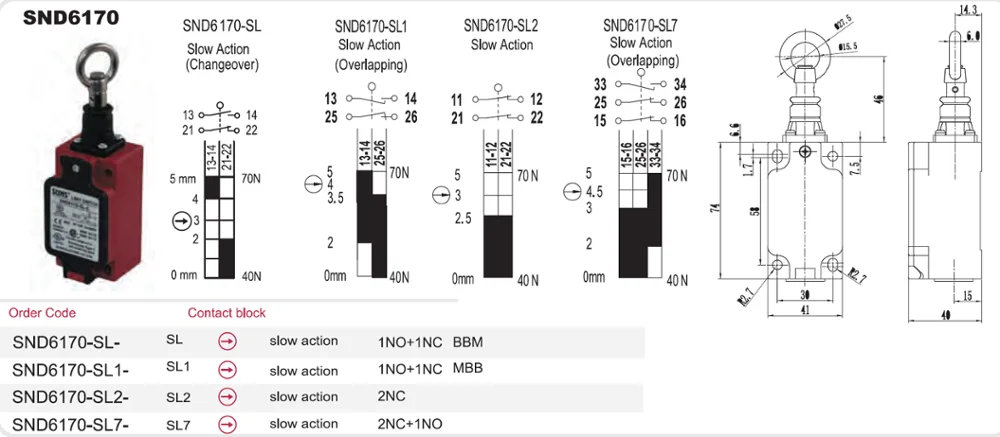

Technical Drawing: Waterproof Cable Pull Safety Switch
