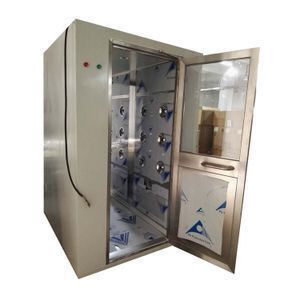

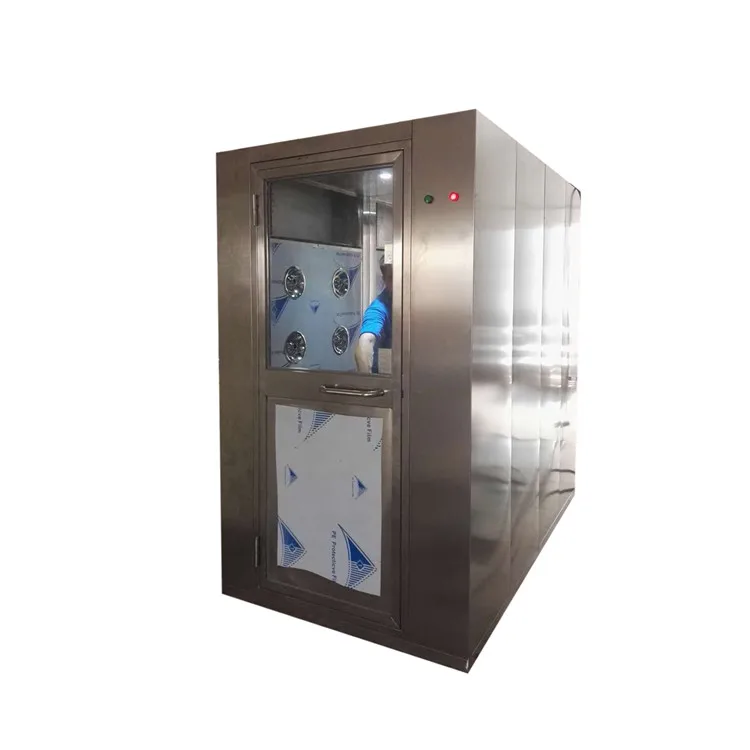

1 Year Warranty Stainless Steel Custom Size Two Single Person Double Pharmaceutical Industry Air Shower Clean Room

Product details
Internal dimensions:730*1800*1930;physical dimension:1100*2000*2080;
Warranty:1 Year;Voltage:380V/50HZ;
Applicable Industries:Machinery Repair Shops,Food & Beverage Factory;Power:1.1KW;
After Warranty Service:Video technical support,Online support;Dimension(L*W*H):1100*2000*2080;
Weight:450KG;Supply Ability:5000 Piece/Pieces per Week;
power supply:380V/50HZ;Port:Shenzhen;
Machinery Test Report:Provided;Certification:CE ISO9001:2008;
Wind speed:>25 m / sec;Warranty of core components:1 Year;
Place of Origin:Guangdong, China (Mainland),Guangdong China;Payment Terms:Western Union,T/T,MoneyGram,paypal;
Product name:Air shower;Marketing Type:Ordinary Product;
Core Components:Engine,Motor,Pump,Filter;Blowing time:0-99 seconds;
Filter efficiency:99.99% 0.3um;Material:stainless steel;
Packaging Detail:Outer packaging carton + PE carton Wood carton , or paper carton with basement;Brand Name:Youjie,YouJie;
Showroom Location:None;After-sales Service Provided:Online support;
Package Preview:;Video outgoing-inspection:Provided;
Local Service Location:None;Condition:New;





Air shower





Recommended Applications

Air shower rooms are local purification equipment, used for the removal of dust particles larger than 0.5μm brought in by people or goods when entering a high cleanliness clean room from a low cleanliness clean room. Air flow when opening the door may cause pollution, which is why an air shower room confines the airflow inside the room, thus preventing air pollution and minimizing pollution problems.

It is a required purification equipment for clean rooms and ladder cleanliness workshops, and is widely used in microelectronics, optoelectronics, semiconductors, pharmaceutical, food, chemical, aviation, and automotive industries, as well as many other product manufacturing workshops and laboratories.



Details

Filter system: Standard high efficiency paneled filter with an efficiency of 99.99% @0.5μm to ensure dust removal.



Nozzle: The wind velocity reaches as high as 20m/s. The material (stainless steel) is 1mm thick stainless steel and the diameter is 25mm. In a double sided shower, there are 6 nozzles on each side of a 1-meter deep air shower room, for a total of 12 nozzles. With 12 nozzles on each side of a 2-meter depth air shower room means there is a total of 24 nozzles, and the nozzle direction can be adjusted at multiple angles.



Box: Cold-rolled steel sheet with surface paint, electrostatic spray treatment on the surface of the steel sheet, stainless steel is also optional.



Door: The door is made using 201 stainless steel and equipped with a strong transparent glass window. Both doors have electronic interlocking functions to ensure that when the air shower room is in operation, both doors cannot be opened simultaneously, thus preventing pollution from entering the clean room.



Control system: The air shower room is controlled using advanced integrated circuits. The microcomputer has an intelligent voice prompt function and uses touch-type micro switches, for smooth, convenient operation.

Time relay: Adjust the air shower time between 0-99 seconds.



Motor: 0.75 KW for each motor.



Applicable power supply: 380V/50Hz.



Features:

· The air shower room is automatically controlled by the system, photoelectric sensors can detect people passing through, and will automatically conduct an air shower.

· The stainless steel made door, bottom plate and nozzle are all beautiful in appearance. A modular design makes the assembly and transportation extremely convenient.

· The shower time set by the factory is generally 10 seconds. However, it can be adjusted anywhere between 0 to 99 seconds, with the shower time displayed on the LED screen.

· Primary-efficiency and high-efficiency two-stage filtration systems are used to ensure the air shower cleanliness.



Optional specifications

Air shower patterns

External dimensions

Inner dimension

Single person double air shower room

1240×1000×2050mm

790×860×1930mm

Two person double air shower room

1240×2000×2050mm

790×1860×1930mm

Three person double air shower room

1100×2000×2080mm

730×2900×1930mm

Goods air shower room-1

2000×2000×2080mm

1500×1900×1930mm

Goods air shower room-2

2000×3000×2080mm

1500×2900×1930mm
