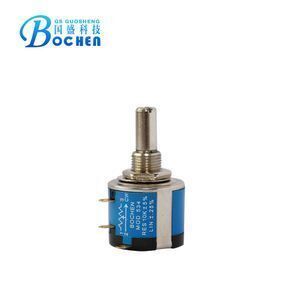

Multiturn Precision 10k linear Wirewound Potentiometer 534

Click here to contact

Product details

Insulation Resistance:	≥1G Ω;	Technology:	Wirewound;
Rated Power:	2W;	Max. Operating Voltage:	315V;
Rotation:	3600°;	Payment Terms:	L/C,D/P,T/T,Western Union,Paypal;
Brand Name:	BOCHEN;	Model:	BOCHEN 534 wirewound potentiometer;
Service:	OEM/ODM;	Termination Style:	Solder Lug;
Number of Turns:	10;	Independent Linearity:	±0.25%;
Resistance Tolerance:	±5%;	Actuator Length:	Not Applicable;
Type:	Rotary Potentiometer;	Supply Ability:	3000000 Piece/Pieces per Month;
Diameter:	22.2;	Operating Temperature:	-55°C~+125°C;
Resistance:	100 ohm~100K ohm;	Length:	Not Applicable;
Mounting Type:	Not Applicable;	Model Number:	WXD534;
Built in Switch:	Not Applicable;	Package / Case:	Not Applicable;
Delivery Time:	1-7 for normal orders;	Resistive Material:	Wirewound;
Termination:	Not Applicable;	Electrical Travel:	≥3600°±10°;
Tolerance:	±5%;	Adjustment Type:	User Defined;
Bushing Thread:	Not Applicable;	Brand:	wire-wound potentiometer;
Terminal Resistance:	≤0.2%R or 5Ω;	Port:	Chengdu Shenzhen Ningbo Shanghai;
Packaging Detail:	534 Precision Multiturn Wirewound Potentiometer 1. 50PCS/Box; 200 PCS/4 Boxes/Small Carton; 2. 1000PCS/25KG/673530cm/Master Carton.;	Package Preview:	;
Power (Watts):	2;	Temperature Coefficient:	±100ppm/°C;
Place of Origin:	Sichuan China;	Shaft Size:	0.250" (6.35mm);
Actuator Diameter:	Not Applicable;	Packaging:	Not Applicable;
Noise:	≤3%R or 3Ω;	Actuator Type:	Not Applicable;

534 Precision Multiturn Wirewound Potentiometer

Electrical Characteristics	Range of nominal resistance	100Ω~100KΩ
	Resistance tolerance	±5%
	Terminal resistance	≤±0.2%R or 5Ω
	Peak Noise	≤100Ω
	Insulation resistance	≥ 200MΩ (100V AC)
	Withstand voltage	500V (DC or AC peak value)
	Electrical angle	3600° ± 10 °
Environment Characteristics	Rated power	2W ( 300V 70 °C )
	Temperature range	-55°C~+125°C
	TCR	±100×10-6/°C
	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
	Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)	ΔR≤±2%R, ΔUab/Uac≤±2%R
	Climate category (IEC68-2-2)	ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ
	Electrical endurance (2W, 1000h)	ΔR≤± 3%R
	Mechanical endurance (1000 cycles)	ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤± 3%R, Insulation Resistance≥100MΩ
Physical Characteristics	Total mechanical travel	3600° ± 10 °
	Starting torque	≤36mN.m
	Standard package	25 pcs /box
