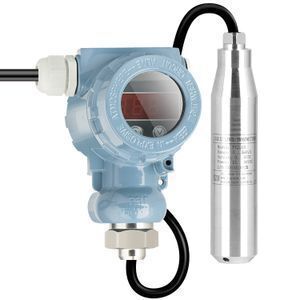

liquid level transmitter 4-20MA water tank level sensor 0-5V water tower liquid level sensor
- 135.00 >=10 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Certification: | IECEE; | Material: | 304 SST; |
| Brand Name: | yezon; | Power Supply: | 12V(9~24VDC) , 24V(15~30VDC); |
| Single package size: | 14.8X2.8X2.8 cm; | Packaging Detail: | standard export packing , including instructions and certificate/ Carton Packing, Water Proof, Shock Resistance Industrial 4-20mA 0-10V Pressure Transmitter; |
| Application: | Liquid level measurement of water, oil, etc.; | Display: | 4 Digits 10 Mm LCD; |
| Accoracy: | ±0.25%FS,±0.5%FS; | Package Preview: | ; |
| Place of Origin: | Guangdong China; | Warranty: | 1 years; |
| Product name: | level transmiter; | Ouput signal: | 4~20mA , 0~5v , 1~5v , 0~10v , RS485 , RS232; |
| Place of Orign: | Foshan, China; | Level range: | 0-1M,0-2M,0-3M,0-4M,0-5M....200M; |
| Working Temperature: | -20°C~80°C; | Selling Units: | Single item; |
| Customized support: | OEM,ODM; | Single gross weight: | 0.35 KG; |
| Model Number: | PY201S; |
| Application | Liquid Level |
| Range | can be customized within the range of 0 ~ 0.2 ~ 500m |
| Accuracy | 0.5FS% (recognized) 0.3FS% (need to be customized) |
| Limit overload | 200% |
| Medium temperature | Medium temperature |
| Power supply voltage | DC24V [15 ~ 36VDQ (default), 12VDC power supply needs to be customized |
| Input signal | 4 ~ 20mA, 0 ~ 5V, 1 ~ 5V , 0 ~ 10V,RS485, RS232, wireless short distance (within 2000 meters) network transmission, GPRS wireless transmission. |
| Stability | ± 0.2% FS/year |
| Sealing level | IP68 |
| Process connection | Input type, put into the test liquid |
| Electrical interface | Connect the tight-wire waterproof nose to the five-core air guide cable |
Product Feature
[1] Imported diffusion silicon pressure sensing chip
[2] Advanced placement technology, with zero and span compensation, temperature compensation
[3] High-precision, high-stability amplifier IC
[4] Up to twice the instantaneous pressure shock
[5] 3 types of intelligent protection (overvoltage / overcurrent / reverse connection)
[6] Various input value numbers, including current type and voltage type
[7] Full-scale compensation, temperature compensation
[8] Protection grade up to IP68 standard, can be immersed in water for a long time
