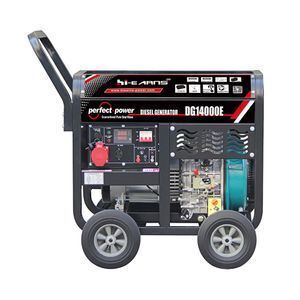

Hi-earns New product 10KW 12KVA single cylinder engine 1102 three phase diesel generator

Click here to contact

Product details

Panel:	Start key, voltmeter, AC breaker, AC socket;	Color:	Yellow/White/Green/Red/Orange/Blue;
Speed:	3000/3600rpm;	Port:	Shanghai;
Certification:	CE ISO;	Power factor:	0.8;
Noise:	lower;	Wheel:	big rubber solid wheel;
Supply Ability:	300 Piece/Pieces per Day;	Type:	open and electric;
Warranty:	1 YEAR;	Frequency:	50/60HZ;
Payment Terms:	L/C,Western Union,T/T;	Rated Current:	15A;
Model Number:	DG14000E;	Packaging Detail:	1.Packing way: Carton. 2.Payment way: If less $10000, 100%T/T payment in advance. If more $10000, 30% T/T deposit in advance, 70% T/T balance before shipment. 3.Producing day: 15-25days.;
Place of Origin:	Jiangsu China;	Package Preview:	;
Engine type:	HR1102F;	Rated Voltage:	220/380, 230/400, 240/415V;
Phase:	Three phase;	Design:	New;
Price:	More competitive price;	Brand Name:	Hi-earns;

Related Products

10KW open type portable single phase diesel generator price

Product Description

Model		DG14000E/DG14000E3
GENERATOR	Frequency (HZ)	50	60
	Max.output (KW/KVA)	10KW/KVA	10KW/12.5KVA
	Rated output (KW/KVA)	9.5KW/KVA	9.5KW/11.5KVA
	Rated AC voltage (V)	120, 220, 230, 240, 220/380, 230/400, 240/415
	Power factor	1
	DC output (V)	12V/8.3A
	Phase	Single phase or Three phase
	Alternator type	Self-excited, 2-pole alternator
	Starting system	Electric
	Noise level (Dba/7m)	80-85
	Fuel tank capacity (L)	27
	Continuous running time (hr)	10.3	9.9
ENGINE	Engine model	HR1102F
	Engine type	Single-cylinder, vertical, 4-stroke air-cooled diesel engine
	Bore×Stroke (mm)	102×88
	Fuel consumption rate (g/kw.h)	≤230
	Fuel	0# or -10# light diesel oil
	Lubrication oil volume (L)	1.65
	Combustion system	Direct Injection
STANDARD FEATURES	Voltmeter	YES
	AC output socket	2
	AC circuit breaker	YES
	Oil warning light	YES
	Oil alert	YES
OPTIONAL FEATURES	DC circuit breaker	OPTIONAL
	Calculagraph	OPTIONAL
	Big wheel	OPTIONAL
	Three phase voltage	OPTIONAL
	Current meter	OPTIONAL
	ATS	OPTIONAL
	Remote control	OPTIONAL
DIMENSIONS	Packing dimention (LxWxH) (cm)	90x59x70.5
	Gross weight (kgs)	155
	20FT loading pcs	63
	40HQ loading pcs	156
