With CE Small cold paint airless road line marking machines

Supplier: Jining Oking Tec Co., Ltd.
Region: Shandong, China
Contact: Mr Bob Oking
Price: $600.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Max line speed:	122m/min;	Max Flow:	3.8L/Min;
After-sales Service Provided:	Engineers available to service machinery overseas;	Selling Units:	Single item;
UNIQUE SELLING POINT:	Long lifetime;	Certification:	ISO CE;
Line Width:	50mm-350mm;	Warranty:	12 months,12 months;
Warranty of core components:	1 Year;	After Warranty Service:	Video technical support,Online support,Spare parts;
Usage:	Traffic Line;	Packaging Detail:	plywood case;
Dimension(LWH):	1120mm790mm950mm;	Power:	Honda 6.5HP,6.5HP;
Mark width:	50-350mm;	Weight:	60kg;
Biggest support nozzle:	0.028 foot;	Machinery Test Report:	Provided;
Brand Name:	OUKE;	Core Components:	Engine;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Farms,Home Use,Printing Shops,Construction works ,Advertising Company;	Place of Origin:	Shandong China;
Condition:	New;	MWP:	22.8MPa;
Showroom Location:	None;	Local Service Location:	None;
Features:	stable, easy-operated;	Marketing Type:	New Product 2020;
Single gross weight:	45.0 KG;	Video outgoing-inspection:	Provided;
Single package size:	1120X790X950 cm;

narrow line spray airless cold painting field track marking machine for sale For Wholesale

With CE Small Cold Paint Airless Road Line Marking Machines

Product Description

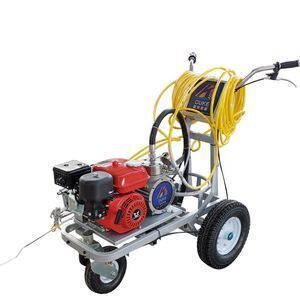

Front Universal Wheel Cold Painting Road Line Marking Machine use the strong frame, universal wheel in the front, you can control the director very easy, we also increase 6 pieces damping block to reduce the vibration, the line will be very straight.

We also use the big power pump, the line very clearly.

We also could supply Honda gasoline and variable piston pump if you need, the detail price please contact us.

Product parameters

Model	HQ55	HQ65	HQ85
Type	Cold paint	Cold paint	Cold paint
Engine	Honda/China	Honda/China	Honda/China
Power	5.5HP/6.5Hp	5.5HP/6.5Hp	5.5HP/ 7 Hp
Weight	75KG	90-120 KG	90- 120 KG
Overall dimensions	1000800900mm	1120790950mm	1120790950mm
Maximum flow	2.8L/min	3.8L/min	3.8L/min
Line width	80-250mm	80-250-500mm	80-250-500mm
MWP	22.8 Mpa	22.8 Mpa	25 Mpa
Maximum line speed	83m/min	122m/min	122m/min
Biggest support nozzle	0.5mm	0.7mm	0.77 mm
Start model	Hand	Hand	Hand
Warranty	12 month	12 month	12 month
Nozzle type	217/ 517	217/ 517	217/ 517
Nozzle number	1	1-2 PCS	1-2 PCS

Product Details

Big power pump, Uniform paiting line. the handle control the paiting and walk. it can use for school, park, airport.

According different work request, road marking machine can use 1 nozzle, 2 nozzle, or use apron, spraying width is 50mm-500 mm.

Front universal wheel cold paint spray road line marking machine painting width up tp 50cm, according to requirements, this type road line marking machine can paiting narrow line 5cm, you can use our machine in plastic runway.

If used in garages, car park, roads, this is very suitable, the machine has a shock absorption module to ensure that the spray is more straight and more uniform.
If used in plastic runways, epoxy floors, lawns, please choose barrier/ baffle, this type of spray can ensure a smooth dash, no burrs, can spray thinner lines, and the plastic track is generally narrow, we also have a return hopper.
