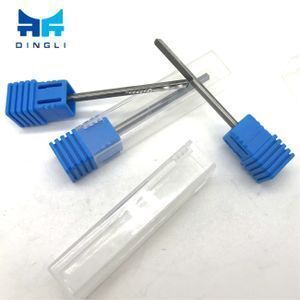

tungsten cemented carbide broach reamer

Product details
Model Number:R-7;Overal Length:60 mm;
Diameter:3.05 mm;T.R.S:2600 N/mm2;
Single package size:10X1X1 cm;Single gross weight:0.015 KG;
Package Preview:;Material:Tungsten Steel,tungsten carbide;
Brand Name:DINGLI;Hardness:HRA 91;
Size:OD3.05*22*L60 mm;Selling Units:Single item;
Density:14.8 g/cm3;Place of Origin:Sichuan China;
Packaging Detail:plastic boxes and cartons: 1>One piece in a platic pipe, 10 pieces per group. 2>Use the air bubble paper to encase the plastic pipe. 3>Put the goods encased with air bubble paper in the carton. 4>Other packing will be accept according to your needs;Flute:4 flute, or customized;
Grain Size:1.2 μm;Grade:YG6;

- Tungsten Cemented Carbide Grade:

 Grade   ISO  Code

   Chemical Component

(%)

  Grain size um

   Physial Mechanical Properties

(≥)

WC Co Others  Density g/cm3 Hardness (HRA) T.R.S   N/mm2
  D10UF  K05-K15  93  6 1  0.6 14.7093.0 2600
 D30UF K20-K30  89 10 1 0.6 14.5092.0 3800
 D30SF K20-K30  89 10 1 0.5 14.4092.5   4000
 D40SFK40 87121 0.4 14.3092.5 4200
 DB10X K20-K30   89  10  1   0.6  14.50 91.5   3800
 DP12XK30-K40  87  12  1   0.6   14.15  91.0   3300
 DP13XK40  86  13  1   0.8   14.10  90.5   4400
  YG6 K05-K10  93    6  0  1.2  14.95  91.0   2600
 YG6X K10   93    6  0   1.0   14.95 92.0  2500
 YG8K20-K30 92  80  1.2  14.70 90.0   2800
 YG10XK30-K40  89  10 1  0.8   14.50  91.0   3500
 YG15K40  85  15 0 1.2 14.0087.5  4500
 YG25 --  75  25 0 1.2  13.15 82.5  4800





Zigong Dingli Alloy Co., LTD. Locates at the new industrial park in Zigong, Sichuan, the famous production base for cemented carbide in China. The factory is mainly working on the production and development of all kinds of cemented carbide products, like rods pipe, diamond tip drill bits and flat bars. In China, our goal is to become the central base of manufacture of extruded rods, carbide boring bar, standard cutters, non standard cutters and hard-machining cutters, establishing a good and healthy company image among coterie.



Main Production Equipment:

At present,the company can. In general, our products can be used in manufacture of mould, electronics, car engine and accessories, military device, petroleum machinery, machinofacture, etc. We have stable customers, such as the United States, Russia, Indonesia, South Korea, Japan, Australia and so on.



Testing Machine:

Our company was established in July, 2011, the company’s product quality and public praise have reached the domestic middle upper level, merely behind several the most competing cemented carbide companies. we continuously improve techniques and introduce advanced equipment, enhancing the professionalism and production scale to a large extent.





Production Flow Chart:



                    Packing of Custom tungsten carbide end mills

                    1>One piece in a platic pipe, 10 pieces per group.
                    2>Use the air bubble paper to encase the plastic pipe.
                    3>Put the goods encased with air bubble paper in the carton.
                    4>Other packing will be accept according to your needs.
