6.6KW OBC Battery Charger on board charger details
Efficiency:>95%;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Application:EV car motorcycles boats;Packaging Detail:Standard Export Carton Box with Crash foam 6.6KW OBC Battery Charger on board charger;
Package Preview:;Size:420*294*123mm;
Place of Origin:Sichuan China;Product name:6.6kw on board battery charger;
Output Voltage:96v/144v/312v;Battery type:Lifepo4,18650,Lead-acid battery / lithium ion battery;
Model Number:LX-LongRun-Q2-6.6kw,Q2-6.6KW;Brand Name:LX-LongRun;
Rated output power flow:20A/40A/50A/60A;Supply Ability:1000 Set/Sets per Month;
Port:guangzhou/shanghai;IP Grade:66;
Input Voltage:90v-265v;

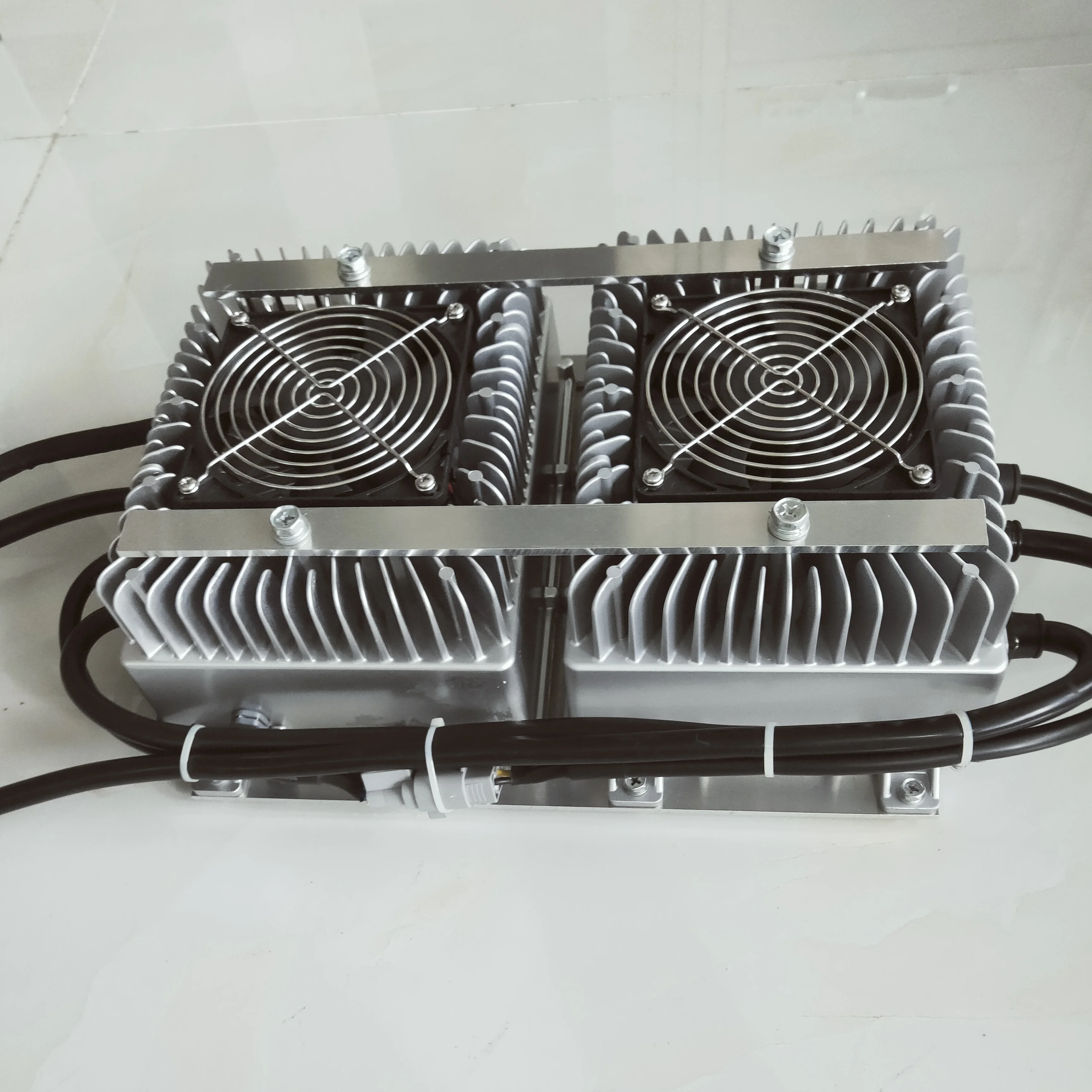

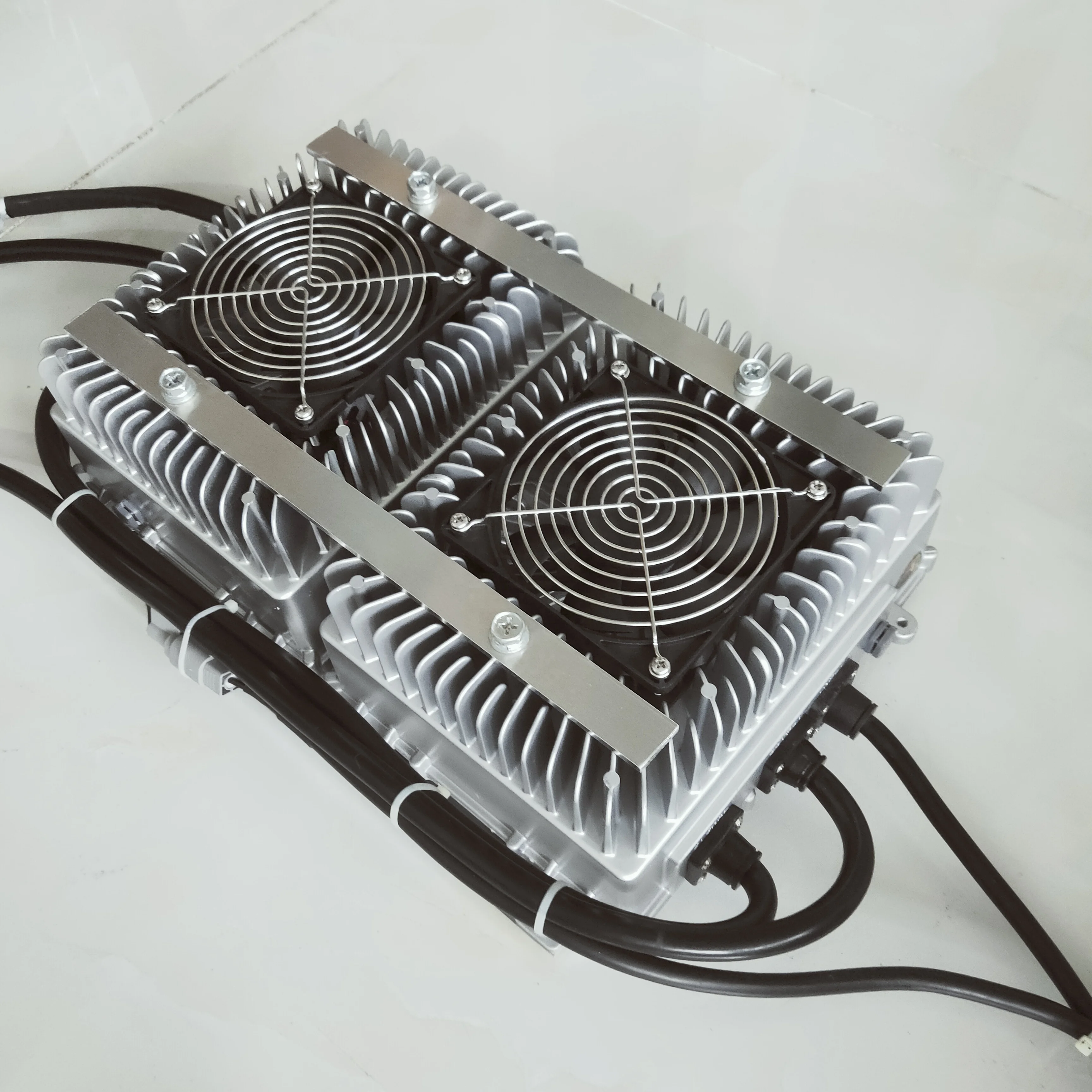

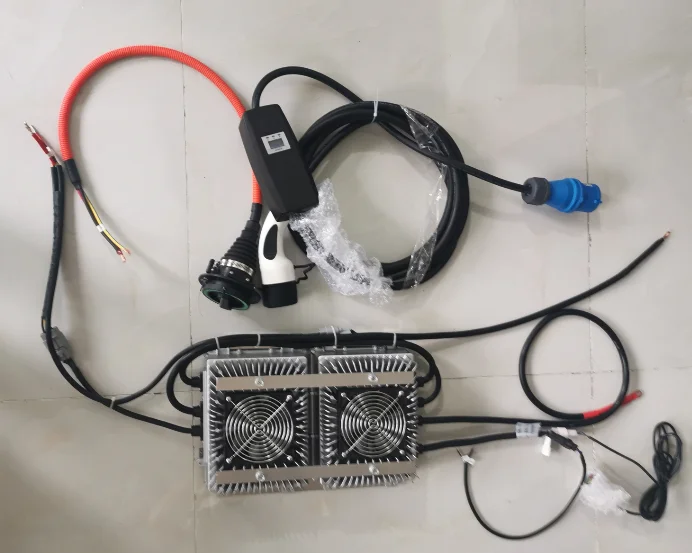

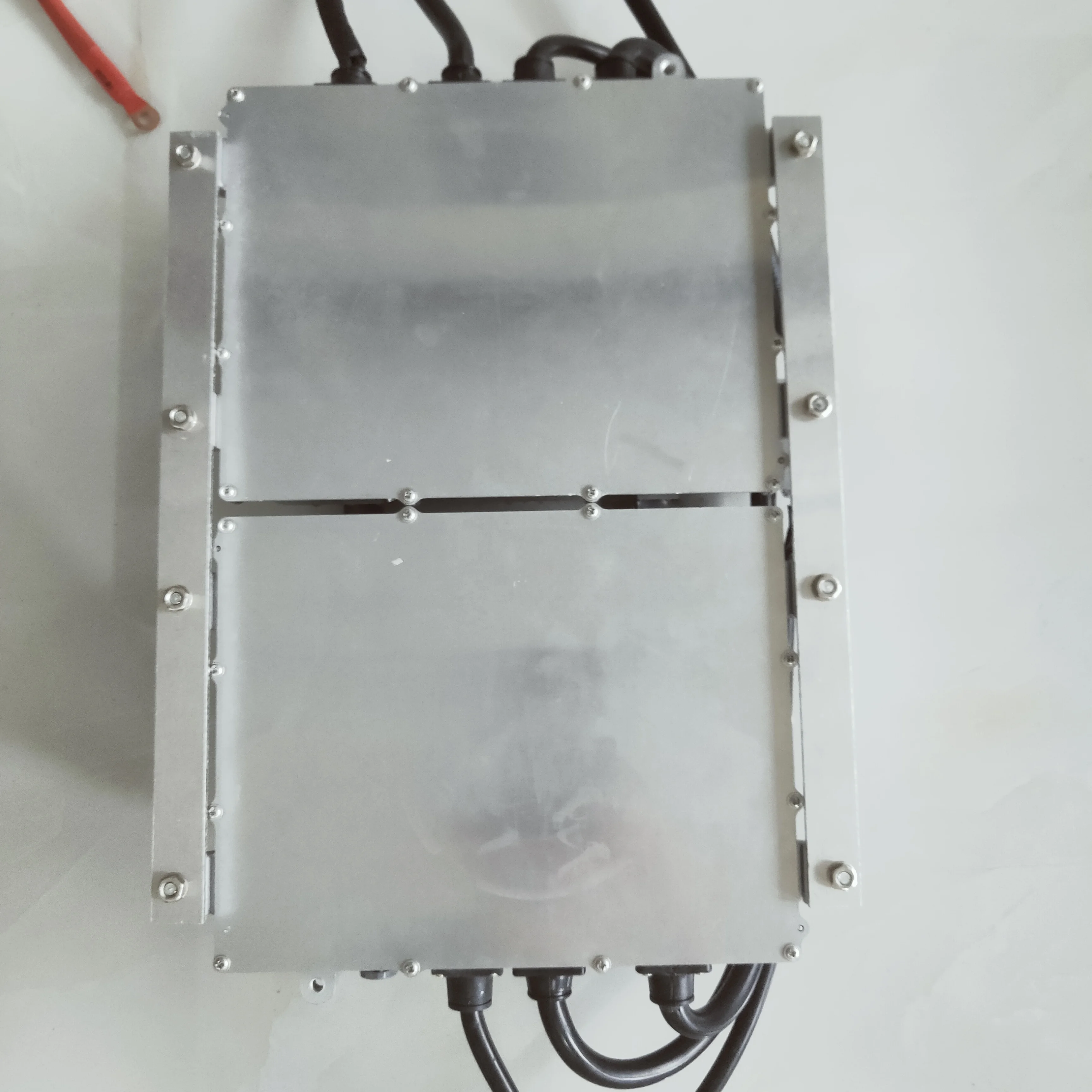

6.6KW OBC Battery Charger on board charger

Batteries Chargers & Charging System Solutions





Hot Sales Products

Product Description











Name

Fully enclosed variable frequency pulse charger

Model

LX-LongRun-Q2-6.6kw

Installation Portable or On board (optinoal)
Cooling Way Air cooling
Size 420*294*123mm
N.W 12KG

Efficiency

>95%

IP 66

Input Voltage

90v-265v ,50-60Hz

Input Connectors

EU/US/UK/AU plug;

EU/US charging gun and socket (optional)

Output Power  6600w





Output parameters
Rated voltage/Max voltage(V)
Rated current(A)

48/66 45-90
72/99 40-80
84/116 40-80
96/132 30-64
144/198 25-46
312/430 10-20
others others





Widely Applications

Battery Type

Lifepo4,18650, Lithium ion battery



lead-acid battery



Nickel-metal hydride, nickel-cadmium, nickel-chromium batteries, etc

Application

Electric sightseeing car, golf cart, club car,patrol car, electric cleaning equipment, sweeper, lawn mower;



Material handling equipments: electric forklift, electric lift truck, electric pallet truck and stacking truck,lift.



Electric boat ,ATV,Kart,cars,Vans and buses;



Others: marine, aerospace, military, Solar energy storage batteries, power station energy storage batteries,UPS uniterruptible power supply, etc.











         For  More  Details, Please  Click  Here

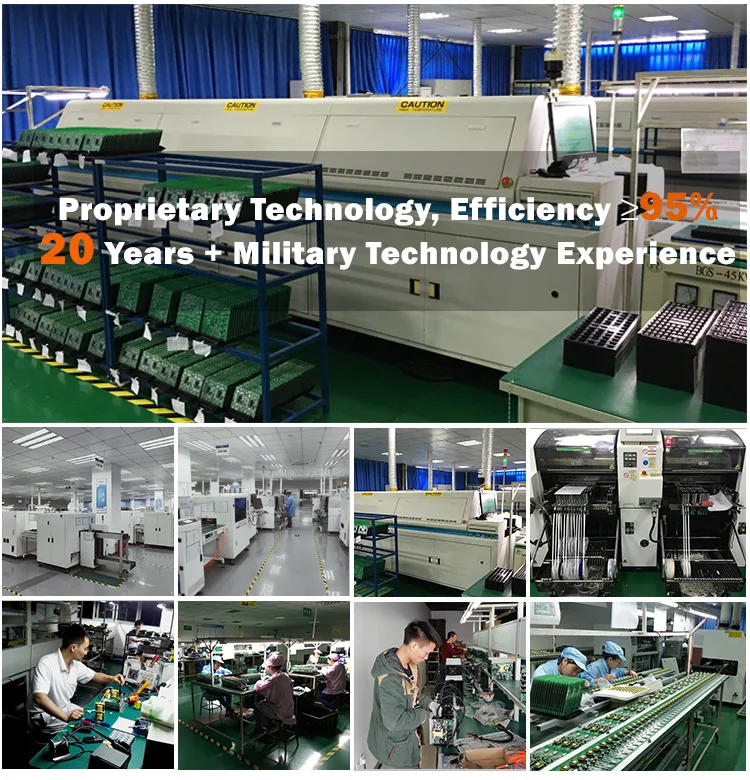

Company Information

Research and development, production, sales, import and export: charger, controller,

mechanical and electrical products, electronic products, software, etc.

Exhibitions



Certifications



FAQ

Q1:What is the MOQ(Mini Order Quantity)?
A1:1unit.



Q2:Do you accept customization?
A2:Yes, We offer OEM and ODM .



Q3:Leadtime

A3:1-7 days for sample, 15-30 days for bulk.



Q4:Warranty

A4: 24 months

Packaging & Shipping

Packaging Details:Each unit is packed with film, plastic foam and paper carton.


Delivery Details: Express, air freight, special line, sea freight.


Ports:shanghai/shenzheng/guangzhou.
