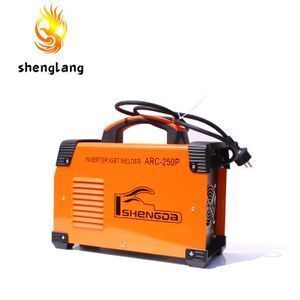

Tig Mma Mig Mag Arc Welding Machine Germany Portable Electri

Product details
Efficiency:80%;Voltage:220V;
Dimensions:35*15.5*24CM;Brand Name:Shenglang;
Voltage:220V;Pilot Arc Current:125-220A;
Rated Duty Cycle:60%;After-sales Service Provided:Online support;
Certification:CE, CCC, ISO9001;Condition:New;
Port:Qingdao;Motor Type:AC Motor;
Payment Terms:L/C,T/T;Key words:Arc Welding Machine;
Package:Carton Package;Color:Customized Color;
Weight:3.5-4.2KG;Type:Inverter;
Arc Current:125-220A;Supply Ability:1000 Piece/Pieces per Week;
Feature:Energy-saving;Power(W):6-8KVA;
Packaging Detail:Standard exporting carton. Customized packing is available.;Warranty:2 Years;
Function:Arc DC Welding Machine;Cover:IRON;
Usage:Welding;Pulse Frequency:50-60HZ;
Place of Origin:Shandong China (Mainland);
Product Description

xiang qing (1).jpg

ModelARC-200ARC-250ARC-300ARC-315ARC-400
Intput voltage(V)220V220/380V220V220/380V220/380V
Frequency(Hz)50-60HZ50-60HZ50-60HZ50-60HZ50-60HZ
Rated input capacity(KVA)67.581014.4
Max no-load voltage(V)6262626262
Current range (A)20-20020-25020-30020-31520-400
Rated Duty Cycle(%)6060606060
Welding rod size(MM)1.6-3.21.6-3.21.6-41.6-41.6-5
Protection degreeIP21SIP21SIP21SIP21SIP21S
Weight (KG)3.5-4.34-6.54.2-4.39.512.5
Dimension (CM)33*13*20.535*15.5*2435*15.5*2441*23*2742*23*29



Product Description



1. With automatic compensation for voltage fluctuations capacity, anti-network fluctuation strong, stable welding current;
2. With automatic over-voltage over-current protection function;
3. A good thrust compensation, dynamic characteristics, and flying small, high efficiency, weld appearance;
4. Through pulse width modulation(PWM) output power DC source, stable performance, small size, light weight, energy-saving , above 30% more efficient than traditional welding efficiency;
5. Current continuously adjustable, easy to use;
6. Suitable for all kinds of electrode welding.

xiang qing (2).jpgxiang qing (3).jpgxiang qing (4).jpgxiang qing (5).jpgxiang qing (6).jpg
