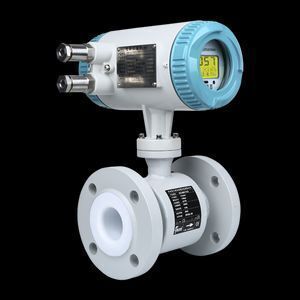

QTLD CE Atex Approved Magnetic Flow Meter 0.5% Electromagnetic Flow Meter

Click here to contact

Product details

Power supply:	220VAC, 24VDC;	Single package size:	35X25X25 cm;
Flange standard:	DIN, JIS, ANSI, GB, Table D/E;	Selling Units:	Single item;
Accuracy:	0.5%;	Protection grade:	IP65 / IP 68(optional);
Brand Name:	Q&T;	Package Preview:	;
Single gross weight:	10.0 KG;	Certification:	CE,ATEX;
Body material:	Carbon steel;	Model Number:	QTLD;
Meddium temperature:	-20~120℃;	Electrode material:	SUS316L, HC, HB, Ti, Tan, Pt;
Signal output:	4~20 mA, pulse;	Connection:	Flange, thread, wafer, tri-clamp, union;
Warranty:	2 Years;	Packaging Detail:	1:Export plywood packing with foam liner.with DN150MM 2:Carton box with thin film wrapped,if caliber less than 150mm 3:Export standard packing according to buyer's requirements for Water Flow Meter Measuring Instrument;
Liner material:	PTFE, FEP, PFA, CR, hard rubber, PU, FLS;	Type:	Magnetic Flow Meter;
Customized support:	OEM,ODM;	Place of Origin:	Henan China;

CE Atex Approved 4~20 mA Pulse RS485 Output Magnetic Flow Meter 0.5% Electromagnetic Flow Meter

WHY CHOOSE US?
Refined Material & Accurate Measurement

ENVIRONMENTAL TEST

High & Low temperature tests, Different Humidity Test ,

Make sure instruments can resist any harsh environments

Size	DN3-DN3000mm
Nominal Pressure	0.6-1.6Mpa(2.5Mpa/4.0Mpa/6.4Mpa...Max 42Mpa)
Accuracy	+/-0.5%(Standard) +/-0.3% or +/-0.2%(Optional)
Liner	PTFE, Neoprene, Hard Rubber, EPDM, FEP, Polyurethane, PFA
Electrode	SUS316L, Hastelloy B, Hastelloy C Titanium, Tantalum, Platinium-iridium
Structure Type	Integral type, remote type, submersible type, ex-proof type
Medium Temperature	-20~+60 degC(Integral type)
Medium Temperature	Remote type(Neoprene,Hard Rubber,Polyurethane,EPDM) -10~+80degC Remote type(PTFE/PFA/FEP) -10~+160degC
Ambient Temperature	-20~+60deg C
Ambient Humidity	5-100%RH(relative humidity)
Measuring Range	Max 15m/s
Conductivity	>5us/cm
Protection Class	IP65(Standard); IP68(Optional for remote type)
Process Connection	Flange (Standard), Wafer, Thread, Tri-clamp etc (Optional)

Output Signal	4-20mA/Pulse
Communication	RS485(Standard), HART(Optional),GPRS/GSM (Optional)
Power Supply	AC220V (can be used for AC85-250V) DC24V (can be used for DC20-36V) DC12V (optional), Battery Powered 3.6V (optional)
Power Consumption	<20W
Alarm	Upper Limit Alarm / Lower Limit Alarm
Self-diagnosis	Empty Pipe Alarm, Exciting Alarm
Explosion Proof	ATEX

Electrode Material	Application
SUS316L	Applicable to industrial/municipal water, wastewater and low corrosive mediums. Widely used in petroleum, chemical industries.
Hastelloy B	Strong resistance to hydrochloric acids below the boiling point. Resist against oxidable acids, alkali and non-oxidable salts. For instance, vitriol, phosphate, hydrofluoric acids, and organic acids.
Hastelloy C	Exceptional resistance to strong solutions of oxidizing salts and acids. For example, Fe+++, Cu++, Nitric acids, mixed acids
Titanium	Titanium can withstand corrosive mediums such as seawater, chloride salt solutions, hypochlorite salts, oxidable acids(including fuming nitric acids), organic acids, and alkali. Not resistant to high purity reducing acids such as sulphuric acids, hydrochloric acids.
Tantalum	Highly resistant to corrosive mediums. Applicable to all chemical mediums except Hydrofluoric Acids, Oleum and Alkali.
Platinum-iridium	Applicable to all chemical mediums except for Ammonium salts and Fortis.
