Flexible Multicore Braiding Copper Shielded 9 Core 1.5mm CY Control Cable

Supplier: Shanghai Wanpu Cable Co., Ltd.
Region: Shanghai, China
Contact: Mr Econ Zhang
Price: $0.50 / >=1000 meters
Min. Order: 1000 meters

Click here to contact

Product details

Conductor Material:	Copper;	Place of Origin:	Shanghai China (Mainland);
Payment Terms:	L/C,D/A,T/T,Western Union,MoneyGram;	Filling:	PET;
Working temperature:	-15℃ - +70 ℃;	Size:	1.5mm;
Port:	Shanghai Port;	Supply Ability:	700000 Meter/Meters per Month;
Voltage:	300/500V;	Packaging Detail:	Package: wooden reel, Paper box, Plastic reel or as client's request. Such as the following:Delivery time: Within 15 days after receiving the payment.;
Model Number:	CY 9 Core 1.5mm Control Cable;	Insulation:	PVC;
Insulation Material:	PVC;	Brand Name:	WPRZ;
Color:	Black Brown , or as your point;	Shielded:	Braiding Copper;
Jacket:	PVC;	Conductor:	Bare Copper;
Product Name:	CY Control Cable;	Jacket:	PVC;
Application:	Industrial;

Product Description

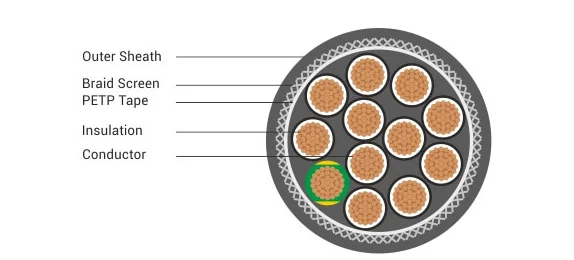

Product Name	9 Core 1.5mm2 CY control cable
Conductor	plain annealed copper
Type	Stranded copper
Insulation	PVC
Shield	Tinned copper braiding
Filling	PET
Sheath	PVC
Sheath Color	Grey RAL 7001

Description:

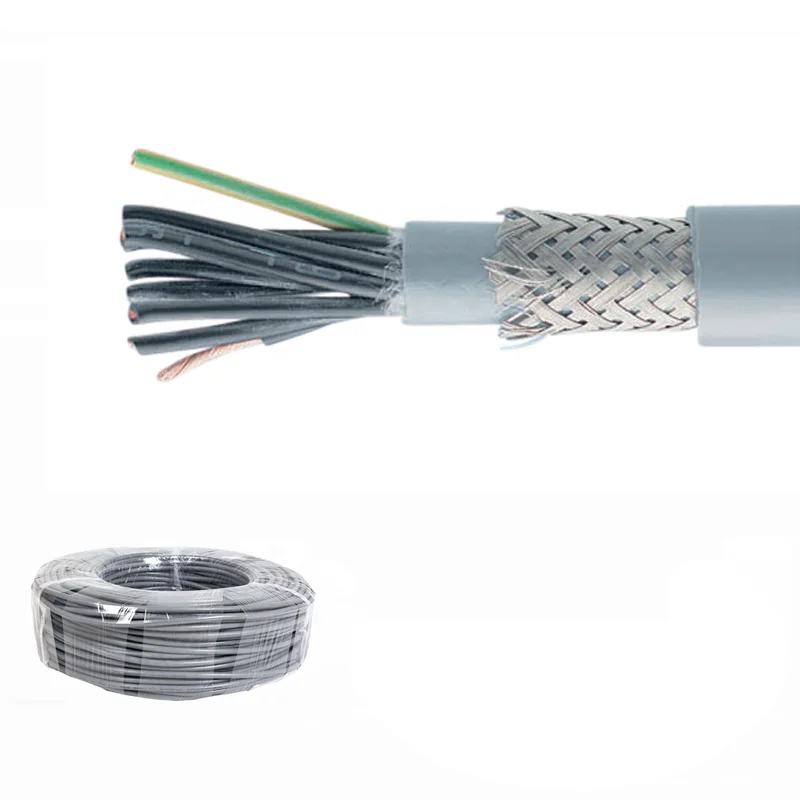

Copper braided multicore PVC CY cable for protection against electrical interference.

Application:

Control cable to connect equipment in production/assembly lines. Can be used between both fixed and mobile equipment and air conditioning systems. CY Cables are not suitable for direct connection to the public mains supply. Suitable as data and control cables in machinery, computer systems etc as well as a signal cable for electronics.

Core identification:

Single core: blue

2 core: brown & blue

3 core: brown, blue & green/yellow

4 core: brown, grey, black & green/yellow

5 core: brown, blue, grey, black & green/yellow

7 core and above: black cores with white number inc Green/Yellow

2 – 5 core: also stocked with number coded conductor

Characteristics:

Voltage: 300/500V

Operating temperature: Flexing: -15°C / + 70°C

Fixed: -20°C / + 70°C

Minimum bending radius: 6 x overall diameter

Standards: VDE0295: General specifications

BSEN50266-1:2001: Common test methods for cables under fire conditions. Test for vertical flame spread of vertically-mounted bunched wires or cables

Usage characteristics:

Printing: Shanghai Wanpu Cable Co., Ltd. CY 9G1.5mm2 Control Cable Meter Print

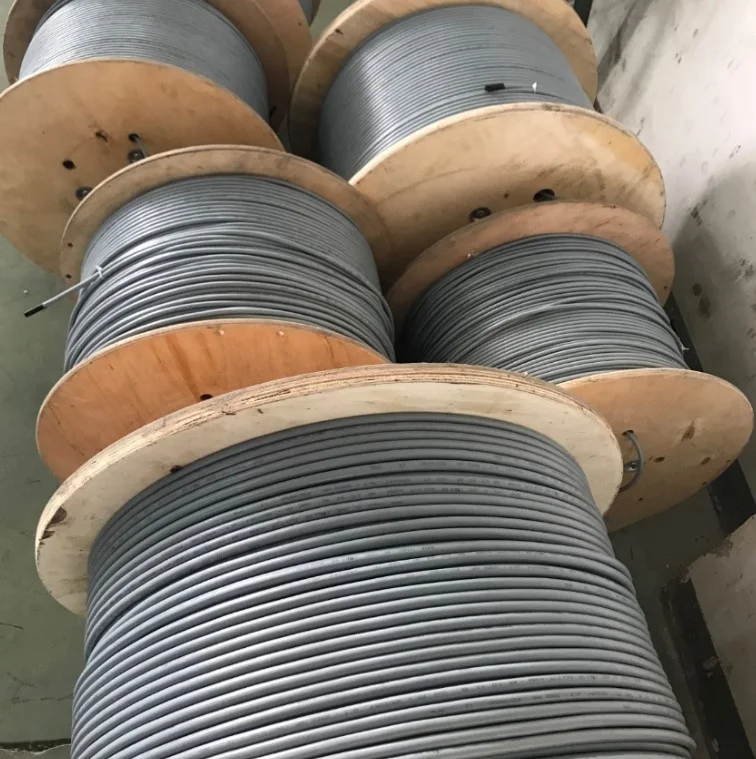

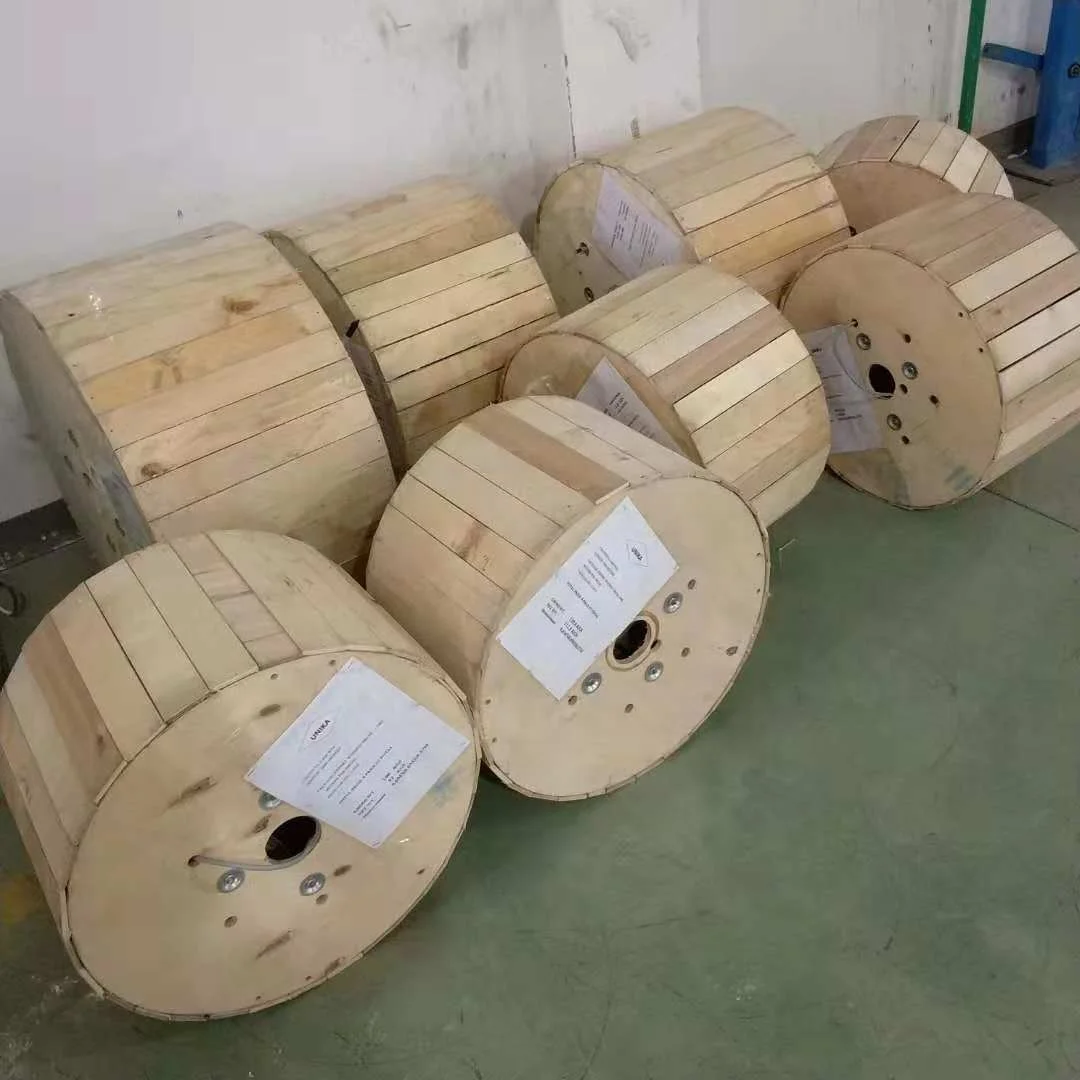

Package: Coil, Wooden drum or OEM

FAQ

Q1: Are you a cable and wire manufacturer?

--Yes, We are a professional wire and cable manufacturer with more than 20 years experience. And we have CCC, UL, RoHs, CE, ISO14001:1996 certifications. Our cables are well accepted in Europe and other countries.

Q2: Can you offer a discount on cables?

--Sure, the price is negotiable. It can be changed according to your quantity or package. When you are sending an inquiry, please let us know the quantity you want.

Q3: Can you offer free samples?

--Of course,the sample is Free, but the freight is collect or you pay us the cost in advance.

Q4: What about your MOQ?

--Usually, our MOQ is 3000 Meters. Also, It depends on what types of cables you need.

Q5: Do you accept customize cables?

--Yes, you can send your own design or sample, we can open new mold and product any cables for you.
