Diesel Mobile Machine to Make Wood Pellets

Product details
Brand Name:AG Mach;Supply Ability:30 Set/Sets per Month Machine to Make Wood Pellets;
Showroom Location:None;Condition:New;
Weight (KG):450;Voltage:380V/220V/440V;
Core Components:Bearing,Motor,Gear,PLC,Engine,Gearbox;Place of Origin:Henan China;
Warranty of core components:12 months;Warranty:12 months;
Applications:Wood Sawdust, Biomass Waste, Straw, Stalk, Rice Husk, etc.;Diameter Size of Fuel Pellets:6mm, 8mm, 10mm;
Payment Terms:L/C,Western Union,T/T;Output (kg/h):100 - 500 kg/h;
Video outgoing-inspection:Provided;Keyword 3:Wood Pellets Making Machine;
Machinery Test Report:Not Available;Motor Power Range of Electric Type:7.5-45Kw;
Keyword 1:Machine to Make Wood Pellets;Packaging Detail:Wooden Box;
Local Service Location:None;Package Preview:;
Marketing Type:Hot Product 2019;Port:Qingdao, China;
After Warranty Service:Video technical support,Online support;Capacity Range:100-500Kg;
Raw Material Processed:Rice Husk,Wood Sawdust,Biomass,Straw,Cotton Stalks;Types of Flat Die Wood Pellet Mill:Electric or Diesel Type;
Dimension(L*W*H):1250*650*1200mm;Keyword 2:Wood Pellet Machine;
Certification:CE, ISO;Moisture of Raw Materials:13% is Better;
Key Selling Points:Easy to Operate;Applicable Industries:Manufacturing Plant,Home Use,Energy & Mining;
HP Range of Diesel Type:15-42Hp;Pellet Diameter (mm):6 - 10;

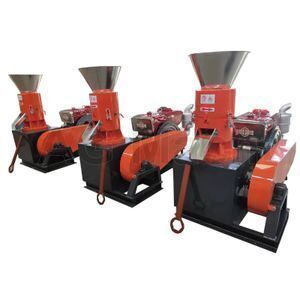

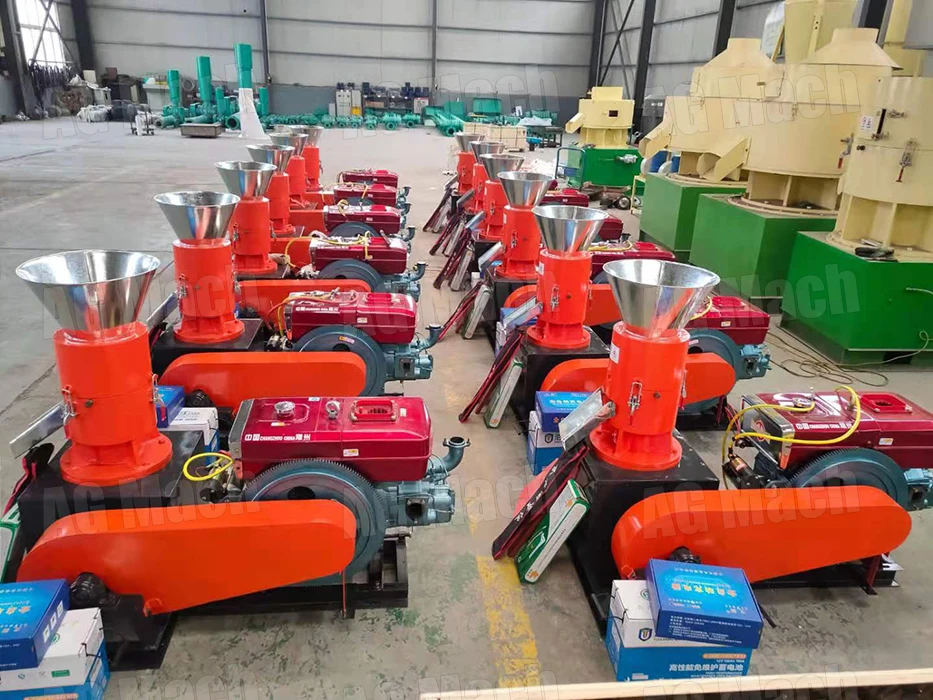

   Diesel Mobile Machine to Make Wood/Feed Pellets









Our wood pellet machine is a newly developed energy saving equipment. The finished pellets are smooth in surface and shapely in posture. Its hardness is closely to European standard. Pellet fuel is convenient in the process of manufacturing, packing, storing and transporting as a clean renewable energy. This kind of wood pellet mill is easy to operate and maintain with lower price.

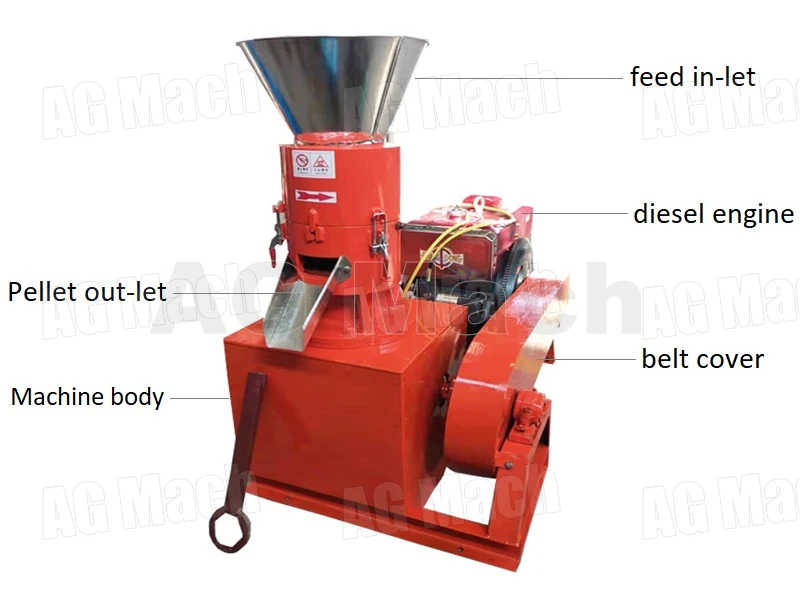

This flat die pellet making machine are powered by Diesel engine .It is mainly used to compress crushed sawdust, straw ,hay, soya ,corn, stalk ,bamboo powder, rice husk , seed skin ,peanuts shell clover, cotton seed Husk cotton/corn/sunflower stalk.etc all kinds of powder materials into cylindrical shape particles(pellet) for the fuel or feed.



1-1. Specifications of (Diesel) Machine to Make Wood Pellets:

Model

Output

(kg)

Power

(hp)

Pellet Size (mm)

Fuel consumption (L/H)

Packing size

(mm)

Weight

(kg)

200D

100-120

15 hp

6,8

2.3

1250*650*1200

450

250D

150-200

22 hp

3.36

1300*700*1300

650

300D

250-350

32 hp

6,8,10

4.10

1650*750*1400

800

350D

300-500

42 hp

5.88

800*700*1200

1350*1100*1100

950













The main electrical control system uses the international standard-delta starter, running, extremely stable. It is mainly used to compress crushed corn straw, plant waste, bamboo powder, grass, straw, rice husk and wood chips etc. into cylindrical and square shape particles. Machines adopt bipolar speed adjusting, and have the characteristics of low power consumption, reasonable structure, economic and durable.

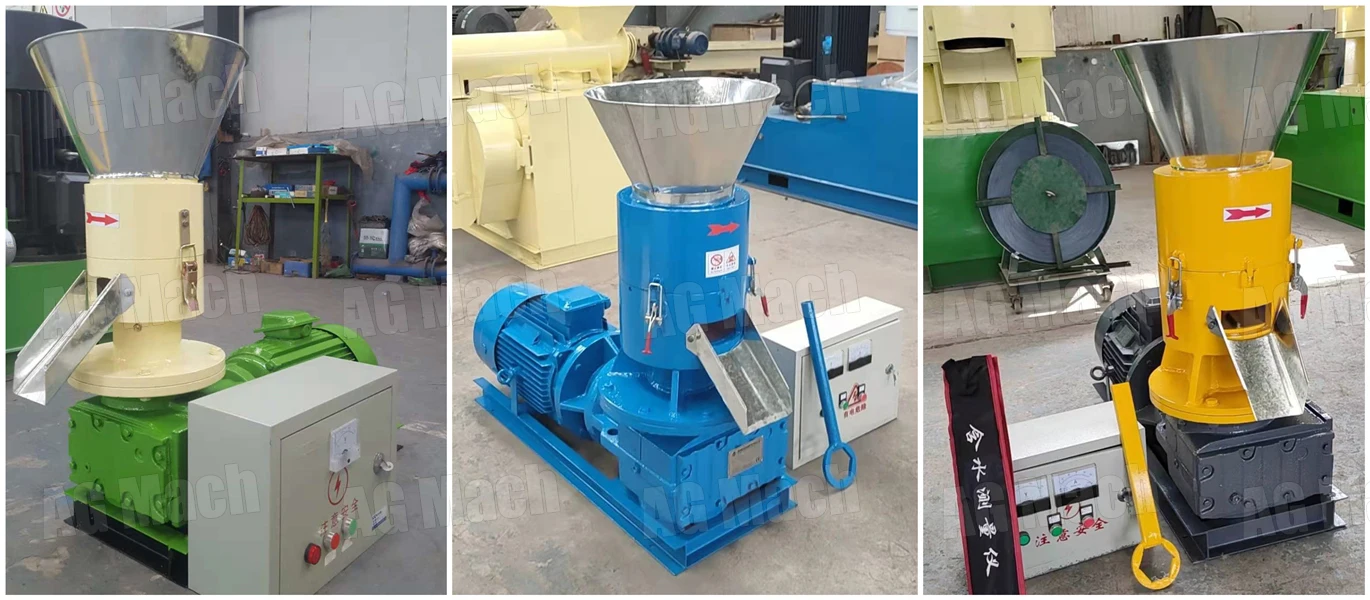

1-2. Specifications of (Electric) Machine to Make Wood Pellets:

Model

Power

Capacity

Dimension

Weight

KAF 200

7.5 kw

100-120 kg/h

1000*450*850 mm

350 kg

KAF 250

15 kw

200-250 kg/h

1200*550*1050 mm

550 kg

KAF 300

22 kw

250-300 kg/h

1250*600*1100 mm

750 kg

KAF 350

30 kw

350-400 kg/h

1650*700*1300 mm

1000 kg

KAF 450

45 kw

450-500 kg/h

1300*700*1500 mm

1450 kg









2. Advantages of Machine to Make Wood Pellets:

(1).We manufacture the machines in accordance with the European standard.

(2).All of our machines have passed CE certificate.

(3).Our flat die type wood pellet machine is for pressing biomass materials to be solid pellets which are used for burning;

(4).You can use nearly all kinds of biomass as raw materials, such as agricultural waste, straw, fodder, forestry wastes, lumber leftover, sawdust, wood chips and so on.

(5).As for the power, you can choose diesel engine driven or electric motor driven. And we have many different models for your option.

(6).Our pellet machines are ideal pellet press for personal, family and small plants. It’s very easy to operate and maintain.

(7).Flat die pellet machine is specially for making wood pellets, unique design for motor and gearbox, new roller rotating instead of previous die rotating. More than 20% output capacity increase than old models.









3. Applications of Machine to Make Wood Pellets:



Our Machine to Make Wood Pellets with wide Applications and High Output Efficiency. The Applications Raw Materials as follows:



(1). All kinds of wood waste or agro-forestry waste can be used,such as:Wood waste,scobs,branch,palm tree,sugarcane residue,sawdust,medical slag,hay,discarded edible fungus bags.Bean stalk,wheat stalk,corn stalk,cotton stalks,sunflower stalks,mustard stalk,rice stalks,coffee husk,cotton shell,peanut shell,rice shell,coconut shell.



(2).Livestock and poultry's waste,tea waste,tea waste,forestry wastes,forestry wastes,wood chips and many other organic waste resources.

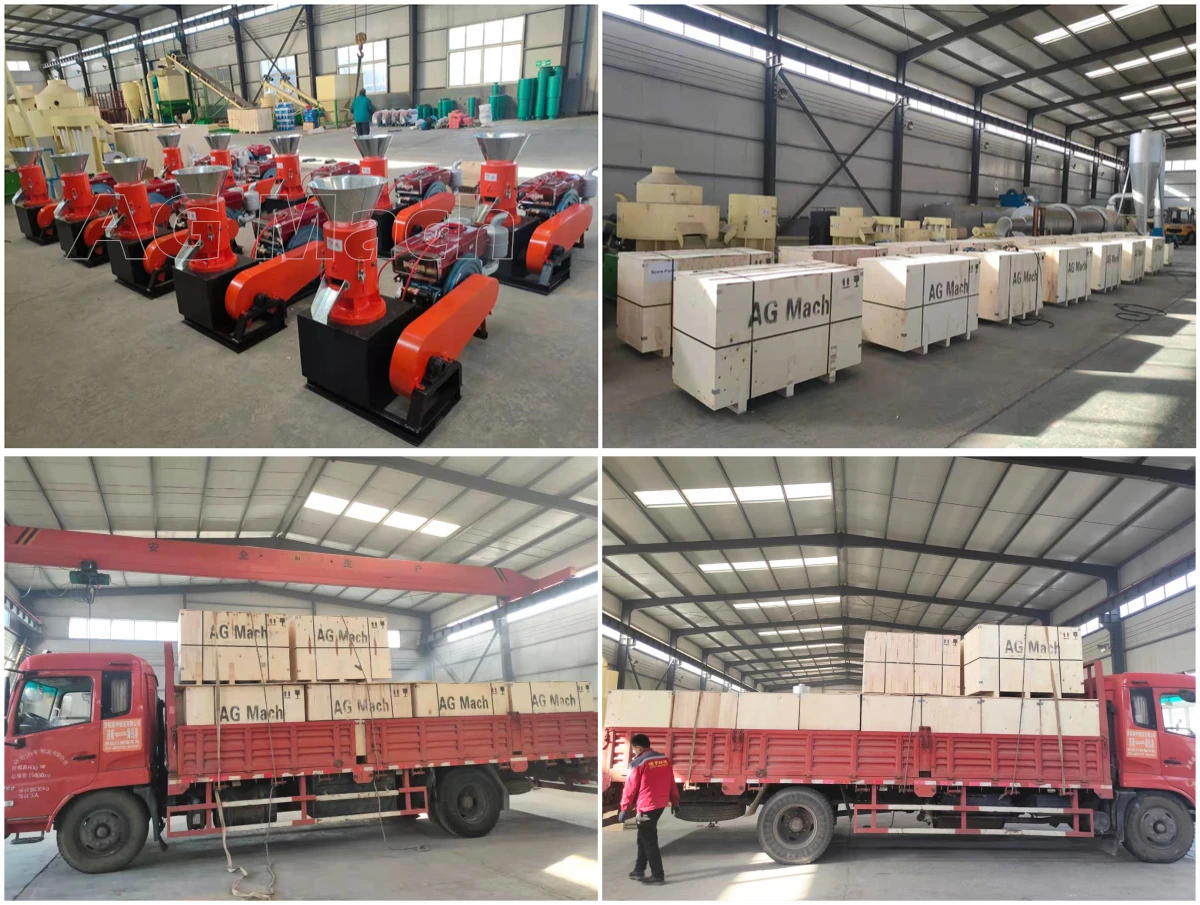

4. Package for delivery:

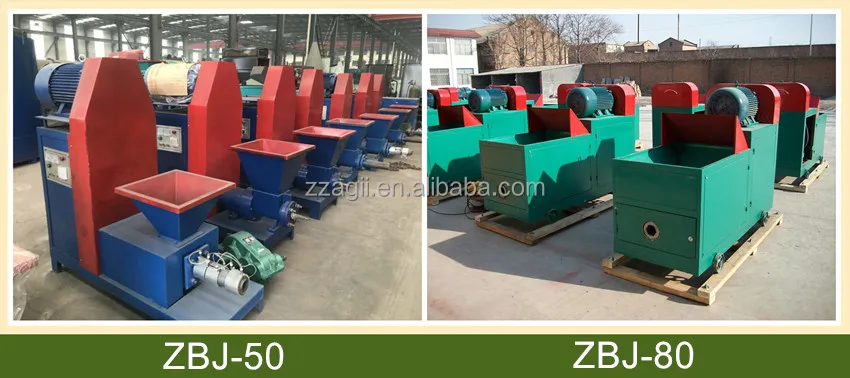

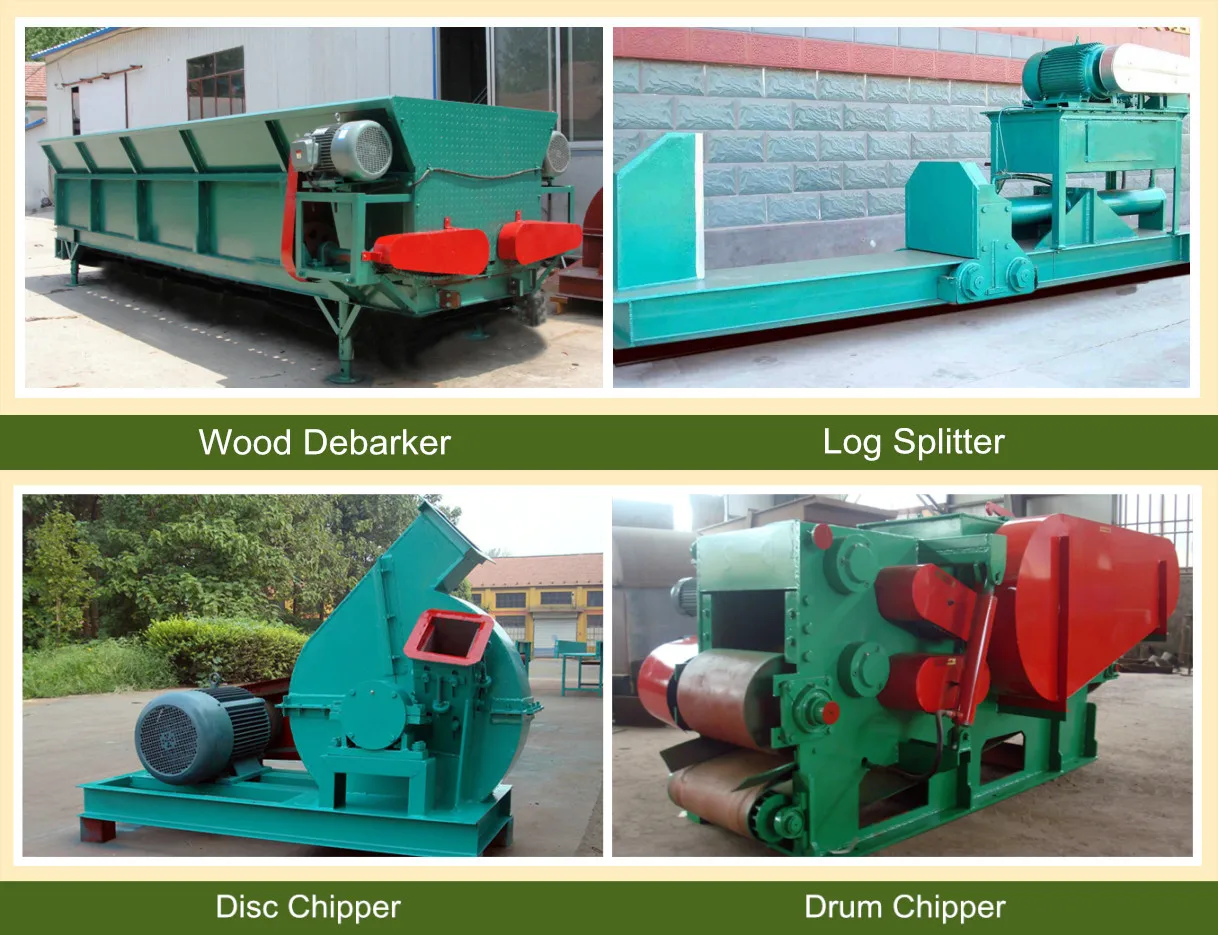

5. Offering Whole Series of Wood Working Machinery.

One Stop Shopoing for Wood Working Machinery are available, we are professional team focused on Foreign Trade of wood working machinery more than 10 years.  High Quality Machinery and Good After Sale Service for you. Wood Working Machinery as follows:



(1). Wood Pellets Making Production Line

(2). Small Size Flat Die Electric or Diesel Wood Pellet Making Machine.

(3). Ring Die Electric or Diesel Wood Pellet Making Machine.

(4). Drum Wood Chipper or Disc Wood Chipper.

(5). Wood Shaving Machine.

(6). Wood Splitter

(7). Wood Dryer

(8). Wood Crusher

(9). and Other accessory equipments.etc.
