Automatic floor cleaner broom clean brush toilet brush tuft
-
Supplier: Taizhou Luqiao Honyeu Machinery Factory -
Region: Zhejiang, China -
Price: $10000.00 /set -
Min. Order: 1 set
| Toilet brush machine: | CNC; | Power(W): | 16; |
| Product Type: | Brush machine; | Supply Ability: | 50 Set/Sets per Year; |
| Voltage: | 380; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Processing Type: | Flocking Machine; | After-sales Service Provided: | Field installation, commissioning and training; |
| Tufting machine: | Broom machine; | Dimension(L*W*H): | 3800*2400*1950; |
| Warranty: | 1 Year; | Weight: | 2500; |
| Brand Name: | HONYEU; | Place of Origin: | Zhejiang China (Mainland); |
| Port: | Ningbo; | Payment Terms: | T/T; |
| Packaging Detail: | We use wooden plate to pakage all machine and spare parts.; | Condition: | New; |

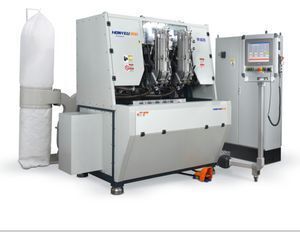

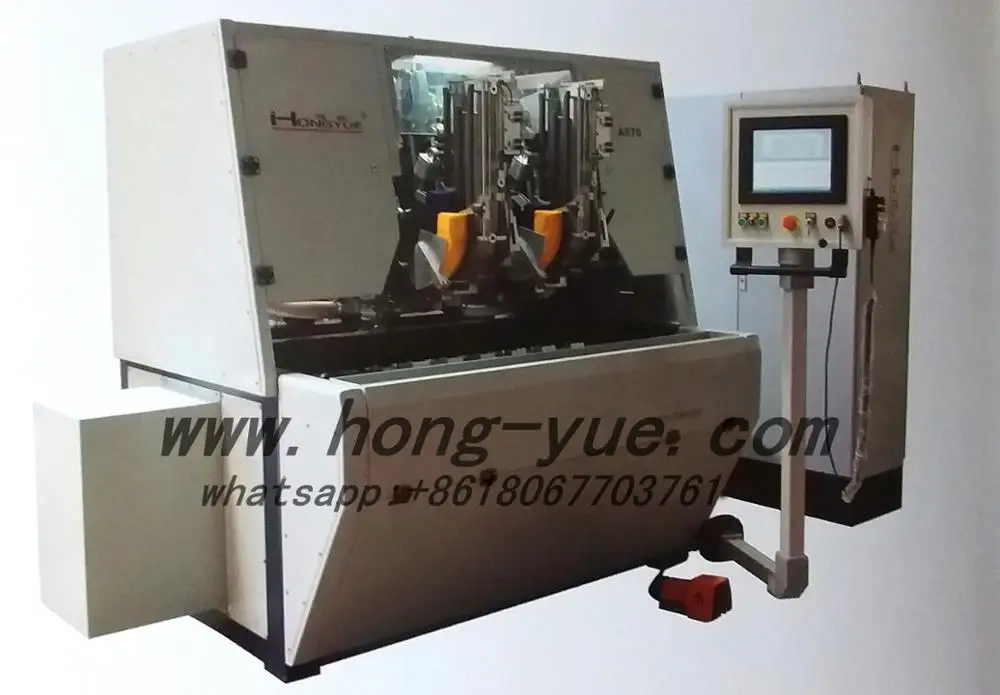

HY-A570 CNC Five Axis Tufting Machine
1,Basic info:
Model No.:HY- A570 Export Markets: Global
Trademark: HONYEU
Origin: Zhejiang, China
2,Product descriptions:
1.Based on industrial PC, a full set of self-developed software is easy to operate and has powerful functions.
2.Most products program can realize automatical programming, reducing the time delay and the trouble due to teach.
3.The device is equipped with three high speed drills and two tufting heads.
4. Hole diameter from 2.8mm to 6.5mm.
5.Tufting machine stroke distance is 70 mm.
6.Tufting two colors of filaments at one time.
7. The maximum brush filament length is 240 mm.
8. with 15'' color LCD screen, Chinese and English interface.
9. Standard spare parts offered.
10. Spare parts are most made by our factory. It is very easy to replace spare parts.
3,Parameters:
Brand | HONYUE |
Type | HY-A570 |
Axis | 5 |
Tufting head | 2 |
Drill | 3 |
Process model | successive |
Tufting head stroke distance (mm) | 70 |
Maximum speed(holes/min) | 900 |
Longest brush board process length(mm) | 320 |
Shortest brush filament process length(mm) | 50 |
Longest brush filament process length (mm) | 240 |
Maximum hole diameter (mm) | 6.5 |
Minimum hole diameter (mm) | 2.8 |
Energy consumption (kw) | 2.2 |
Installed capacity (kw) | 14 |
Air consumption(nl/min) | 150 |
Air pressure (bar) | 6.5 |
Weight (kg) | 2500 |
Dimension (l * w *h, mm) | 3800*2400*1950
|
4,Service:
Pre-sale
We provide presales service in various forms, for example, making investment budget, manufacturing
Planning, etc.So our customers make a reasonable plan with less cost.
In-sale:
Detailed design of lay-out that is the position of the procession
Technological information of provided products
Schedule about design, manufacturing and installation
Working & Producing progression
Training course for the technician so that the installation is safe and standard
After-sale:
For customers buying our products, we provide them free training so that they can use and maintain the machine independently.
We will answer customer's question on technology in time.If needed, we will offer on-site guidance and assistance.
5,Contact information:
Contact person: James
Address: No.333,Xinliu Road,Xinqiao Town,Luqiao District,Taizhou,Zhejiang,China
Mobile/whatsapp/wechat: +86-18067703761 Fax:+86-576-82612666
Facebook:www.facebook.com/Jameshongyue
Website: www.honyeu.com
Zip Code: 318055
P. S.: If you need more information, please do not hesitate to contact us.
-
