CNC plastic brush bottle brush machines making brooms
-
Supplier: Taizhou Luqiao Honyeu Machinery Factory -
Region: Zhejiang, China -
Price: $10000.00 /set -
Min. Order: 1 set
| Supply Ability: | 50 Set/Sets per Year; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Condition: | New; | Port: | Ningbo; |
| Power(W): | 16; | Product Type: | Other; |
| axis: | 5; | Max speed: | 900 tufts/min; |
| drill: | 3; | Weight: | 2500kg; |
| Packaging Detail: | We use all wooden plank to packaging all machine and spare parts.; | Processing Type: | Flocking Machine; |
| Voltage: | 380v/220v; | Warranty: | 1 Year; |
| brand: | HONYEU; | stroke: | 70mm; |
| Max hole diameter: | 8mm; | Min fibre length: | 50mm; |
| Max fibre length: | 240mm; | Max block length: | 600mm; |
| After-sales Service Provided: | Field installation, commissioning and training; | Dimension(L*W*H): | 3800*2400*1950mm; |
| Place of Origin: | Zhejiang China; | Brand Name: | HONYEU; |
| Payment Terms: | T/T; |

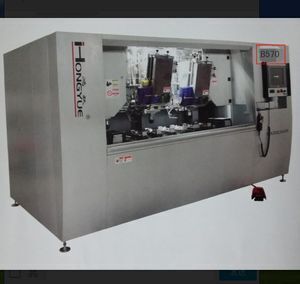

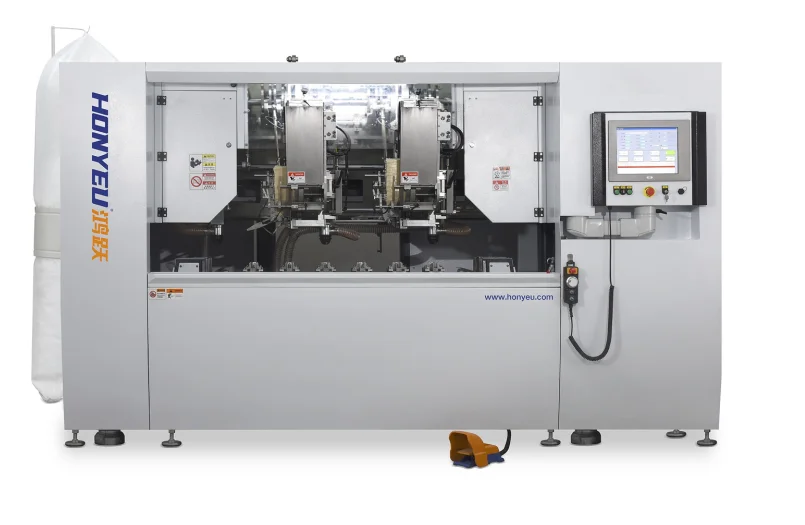

B570 CNC Six Axis Tufting Machine
1.Specification:
Based at industrial PC and a full set of independent research and development of software,the interface has a variety of languages.The computer software is so powerful that it can realize program editing automatically.It is professionally designed to produce the surface brush and spherical brush.It is very fast speedy and has better stability.It also can make two colors of filament at one time.The device have five CNC axis,three drills and two heads.
2.Parameter:
| Brand | HONYUE |
| Type | HY-B570 |
| Axis | 6 |
| Tufting head | 2 |
| Drill | 3 |
| Process model | successive |
| Tufting head stroke distance(mm) | 70 |
| Maximum speed (holes/min) | 900 |
| Maximum brush board process length(mm) | 600 |
| Shortest brush filament process length(mm) | 50 |
| Longest brush filament process length(mm) | 240 |
| Maximum hole diameter(mm) | 8 |
| Minimum hole diameter(mm) | 2.8 |
| Energy consumption(kw) | 3 |
| Installed capacity(kw) | 16 |
| Air consumption(nl/min) | 150 |
| Air pressure(bar) | 6.5 |
| Weight(kg) | 3800 |
| Size(l*w*h,mm) | 3400*2400*2150 |
3.Service:
Pre-sale:
We provide presales service in various forms, for example, making investment budget, manufacturing
Planning, etc.So that customers make a reasonable plan with less cost.
In-sale:
Detailed design of lay-out that is the position of the procession;
Technological information of provided products ;
Schedule about design, manufacturing and installation ;
Working & Producing progression ;
Training course for the technician so that the installation is safe and standard;
After-sale:
For customers buying our products, we provide them free training so that they can use and maintain the machine independently.
We will answer customer's question on technology in time.If needed, we will offer on-site guidance and assistance.
