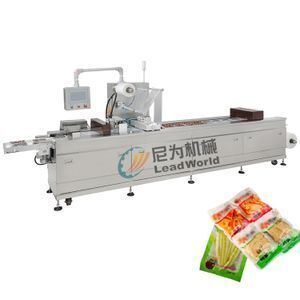

Vacuum packaging of meat fruits vegetables Popular thermoforming Vacuum Packer Machine

Supplier: Shanghai Leadworld Machinery Technology Co., Ltd.
Region: Shanghai, China
Contact: Ms LORA LI
Price: $40000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	10 Set/Sets per Month;	Type:	Vacuum Packing Machine;
Showroom Location:	None;	Packaging Detail:	Standard export package with PVC film protect first and then load in wooden case or plywoodcase. The upward mark will be posted on the wooden case.Or can be as you request.;
Port:	Shanghai;	Payment Terms:	L/C,T/T,Western Union;
Machinery Test Report:	Provided;	Packaging Type:	Other;
Driven Type:	Electric;	Automatic Grade:	Automatic;
Local Service Location:	None;	Marketing Type:	Ordinary Product;
Voltage:	380V;	Packaging Material:	Other;
Weight:	Customized;	Power Supply:	AC 380V 50Hz(3Phase);
Condition:	New;	After-sales Service Provided:	Engineers available to service machinery overseas,Free spare parts,Video technical support,Online support;
Packing Speed:	4-8Cycles/Min;	Item:	Vacuum Packing Machine;
Place of Origin:	Shanghai China;	Warranty:	1 Year;
Brand Name:	Leadworld;	Max.Forming Depth:	80mm;
After Warranty Service:	Video technical support,Online support,Spare parts;	Core Components:	Motor;
Warranty of core components:	1 Year;	Application:	Beverage,Chemical,Commodity,Food,MEDICAL;
Video outgoing-inspection:	Provided;	Key Selling Points:	stable;
Dimension(LWH):	Customized;	Applicable Industries:	Food & Beverage Factory,Farms,Restaurant,Retail,Food Shop,Printing Shops,Construction works ,Food & Beverage Shops;

Vacuum packaging of meat fruits vegetables Popular thermoforming Vacuum Packer Machine

Product Description

Applicable scope:

This machine is mainly use for Vacuuming, Filling and packaging for all kinds of food, cheese,sausage,pickles, meat,seafood, fruit jam, chilled meat, pharmaceutical products, metal parts, medical equipment etc. There is no need making the package container in advance, it can stretch the film and thermoforming, filling mateirals, vacuum sealing, cutting at the same time with convient, low energy consumption, short cycle, high effiniency.

Operation principle:

Forming →filling→sealing→cutting--(date printing if you need)

Control system:

Use Siemens computer control,S-700 man-machine interface touch screen, Schneider-France/Panasonic- Japan servo motor to adjust speed. And also use Japan, Europe, Taiwan and other Brand device. Also equipped with perfect security protection measures.

Function:

1. Photoelectric tracking, Can choose the color cover film or optical film for packaging, reduce cost, improve the grade of products.

2. Use Combined mould, Easy to change, multi-usage, mold has a cooling system.

3. Can according to customer's product packaging requirements to equipment with Coding system.and On the basis of the vacuum, can fill in nitrogen or other mixed gases.

4.Equipped with world-class original German BUSCH RA0111vacuum pump, High degree of vacuum, Stable quality, durable and reliable.

5.Equipped with scrap material recycling system, to Keep environment clean.

6.Use the advanced longitudinal-cutting and Transverse cutting system.

Features:

1.Easy clean and sanitary by steel construction.

2.BUSCH vacuum pump from Germany imported with original packing guarantee performance and durability

3.With German Siemens PLC and touch human-machine interface, simple to use, easy to operate.

4.Strong adaptability for the packaging materials and packaging specifications, within the prescribed scope can be arbitrary choice.

5.Japanese panasonic servo system driver, running steady and rapid and accurate.

6.Only need to change mould, can be on one device in different specifications of products.

7.Other gas mixer available based on vacuum to extend fresh time.

General Information
Item Type	Auto thermoforming & vacuum packing machine
Item No	LW-ATVP
Sevice	Food forming,filling material, vacuum sealing, printing date, cutting automatically.
Function	Full-automatic continuous stretching vacuum packing machine can carry on, vacuum package . It can print ink automatically. This machine takes with vacuum, carrying on vacuum package.
Configuration
PLC Controller/Touch Screen	Mutsubishi PLC - Japan
Servo Motor	Mutsubishi servo- Japan
Pneumatic Component	AIRTAC- Taiwan
Drive	Mutsubishi- Japan
Electrical Component	ABB- America, Mutsubishi- Japan
Vacuum Pump	BUSCH – Germany111 type(the pumping air quantity is110m3 per hour)
Material For Body Machine	Aluminum alloy, stainless steel
Technical Parameters
Packing Speed	4-8Cycles/Min
Bottle Film Thickness	<=0.8mm
Bottle Film Width	322mm,422mm,522mm
Top Film Width	285mm,385mm,485mm
Air Consumption	500,550,650L/Min
Air Supply	>=0.6Mpa

Company Information

Shanghai Leadword Machinery Technology Co., Ltd. Is specialized in developing research and manufacturing various whole set of packing production systems ,also it owns marketing, import &export ability .Based on enormous technology strength ,we regard market demand as our guide ,production development as our responsibility ,we can design the best economical reasonable solution program.

Advanced design and professional technology ,precision manufacturing is our remarkable characteristics .Our company already pass ISO9001:2008 international quality management system, established integrity Quality Guarantee System, to insure the quality and performance of our products.

Our company devote to digesting and absorbing international advanced science of processing and automatic equipment. We have cooperated with Canada, Germany, Switzerland in a long term, and developed various advanced filling packing and conveying whole set of equipment ,reach to professional advanced level.

Packaging & Shipping

1.Packing: standard export case.

Plastic wrapping and wooden box

2.Guarantee: 12 months from the installation.

3.Shipment: within 30-40 working days after receiving the down payment and sample.

Certifications

FAQ

Q1: What is your company’s main products?
Vacuum packaging machine,Palletizer, Conveyors, Filling Production line, Sterilizer, Sealing machines, Capping Machines, Packing Machines, Labeling Machines and so on.

Q2:Are you manufacturer or trading company?
We are manufacturers and we have our excellent service team all over the world.We offer excellent after-sales service.

Q3:Where are you located? Is it convenient to visit you?
We are located in Shanghai. Traffic is very convenient.

Q4:How can you guarantee quality?
1.We are Alibaba Gold Enterprise.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work
is confirmed,and will always operate this process, so very experienced.
3.The electrical pneumatic components are from the world famous companies,
such as Germany's Siemens, Japanese Panasonic etc.
4.We will do strict test running after the machine is finished.
5.Our machines are certified by SGS,ISO,CE.

Q5:Can you design the machine according to our requirements?
Yes. We not only can customize the machine according to your technical
drawing, but also can make new machine according to your requirements.

Q6:Can you offer overseas technical support?
Yes. We can send engineer to your company to set the machine and train your
worker if needed.

Q7: Why our customers trust and choose us?

1.manufacturer

2.we have stocks

3.delivery fast

4.senior engineer

5.competitive price

6.high quality

7.strict quality control

8.over 10 years experience

9.provide test

10.varity of goods

11.excellent after-sales services
