BY-400 Pharmaceutical bean sugar pill dragee coating machine automatic coating machine

Supplier: Herun Machinery (shanghai) Co., Limited
Region: Shanghai, China
Contact: Ms Li Yang
Price: $900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	Herun;	Driven Type:	Electric;
Key Selling Points:	Competitive Price;	Automatic Grade:	Automatic;
Weight:	70kg;	After-sales Service Provided:	Online support,Engineers available to service machinery overseas;
Single package size:	77X46X96 cm;	Dimension(LWH):	485585810MM;
Place of Origin:	Shanghai China;	Certification:	CE ISO9001;
Selling Units:	Single item;	Type:	Coating Machine;
Usage:	Pharmaceutican and food industry;	Packaging Detail:	wooden box with export standard;
Single gross weight:	62.0 KG;	Packaging Type:	other;
Function:	coating machine;	Warranty:	1 Year,one year;
Condition:	New;	Application:	Food,MEDICAL;
Packaging Material:	plastic;	Applicable Industries:	Food & Beverage Factory,Farms,Food & Beverage Shops;
Voltage:	110v/220v/380v;	Material:	stainless steel 304;

Product Description

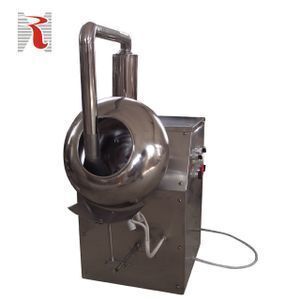

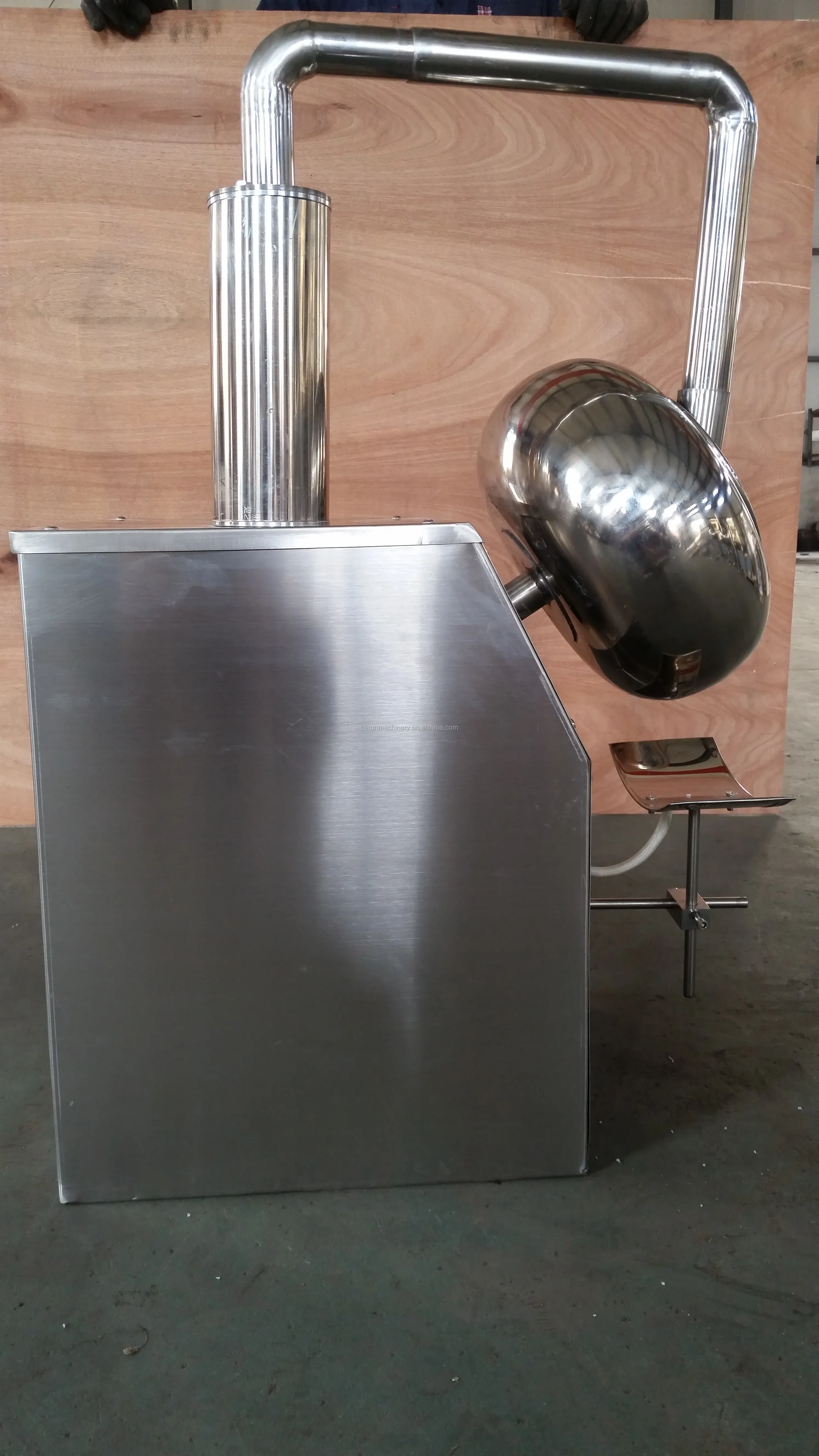

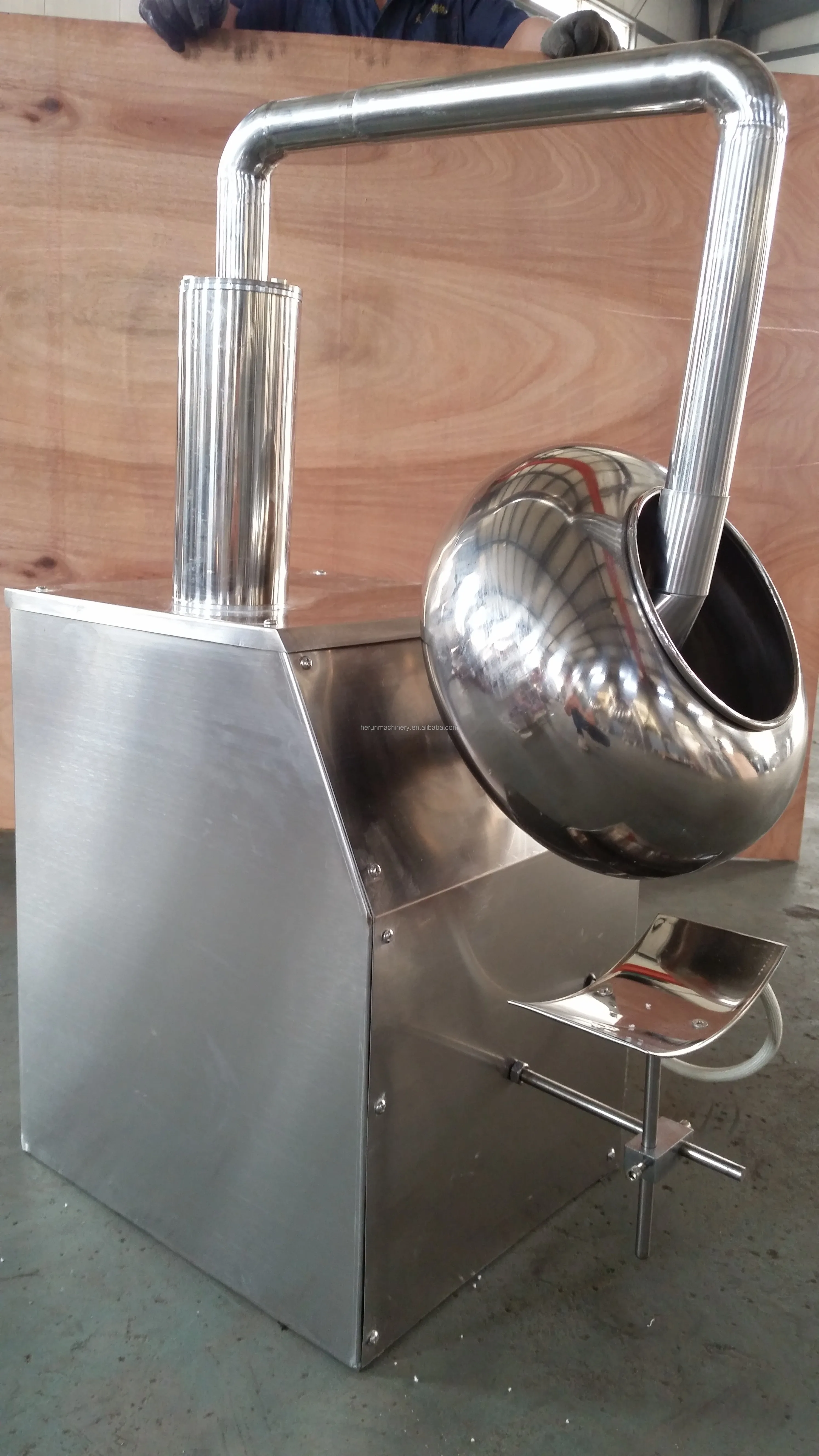

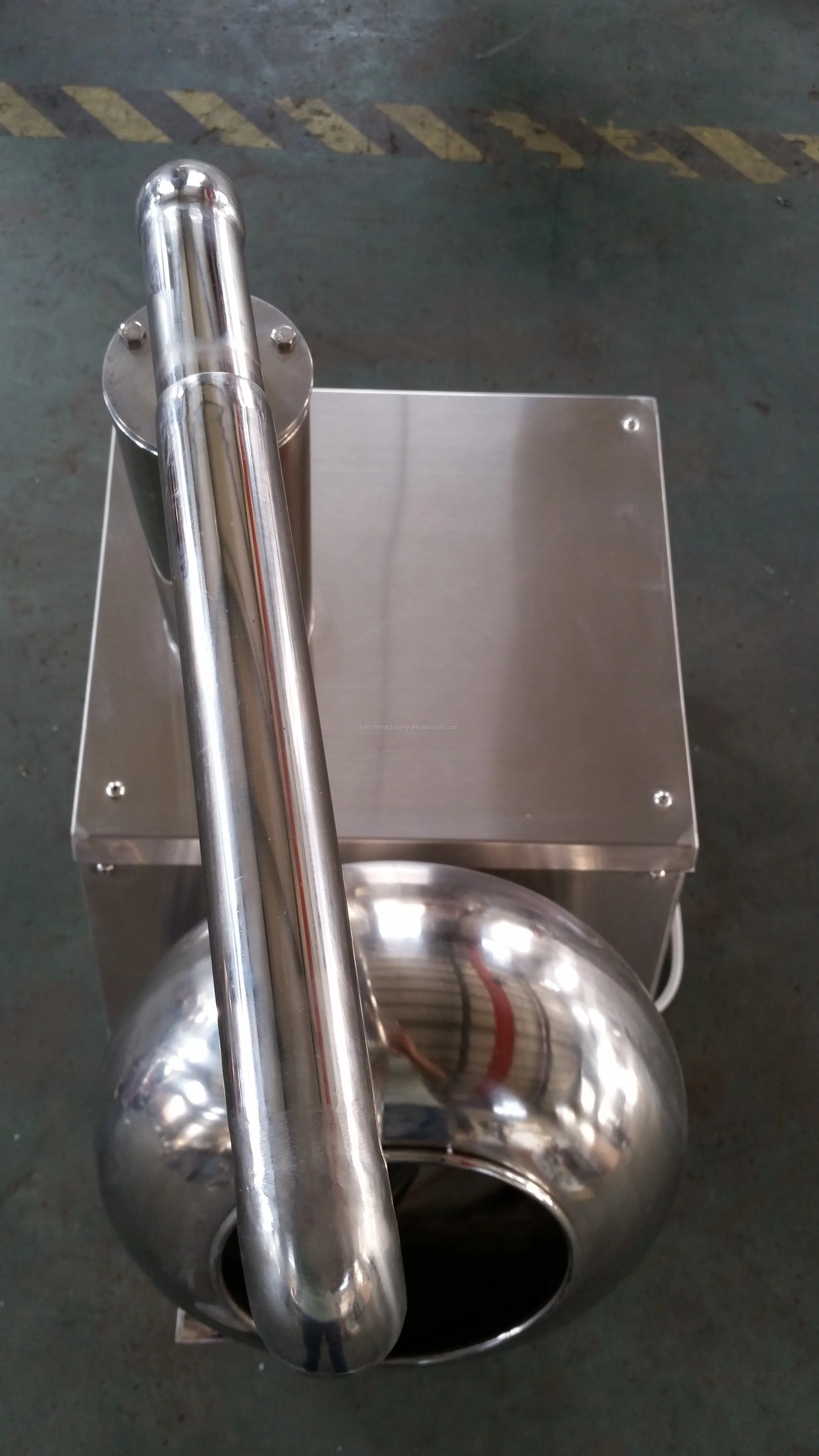

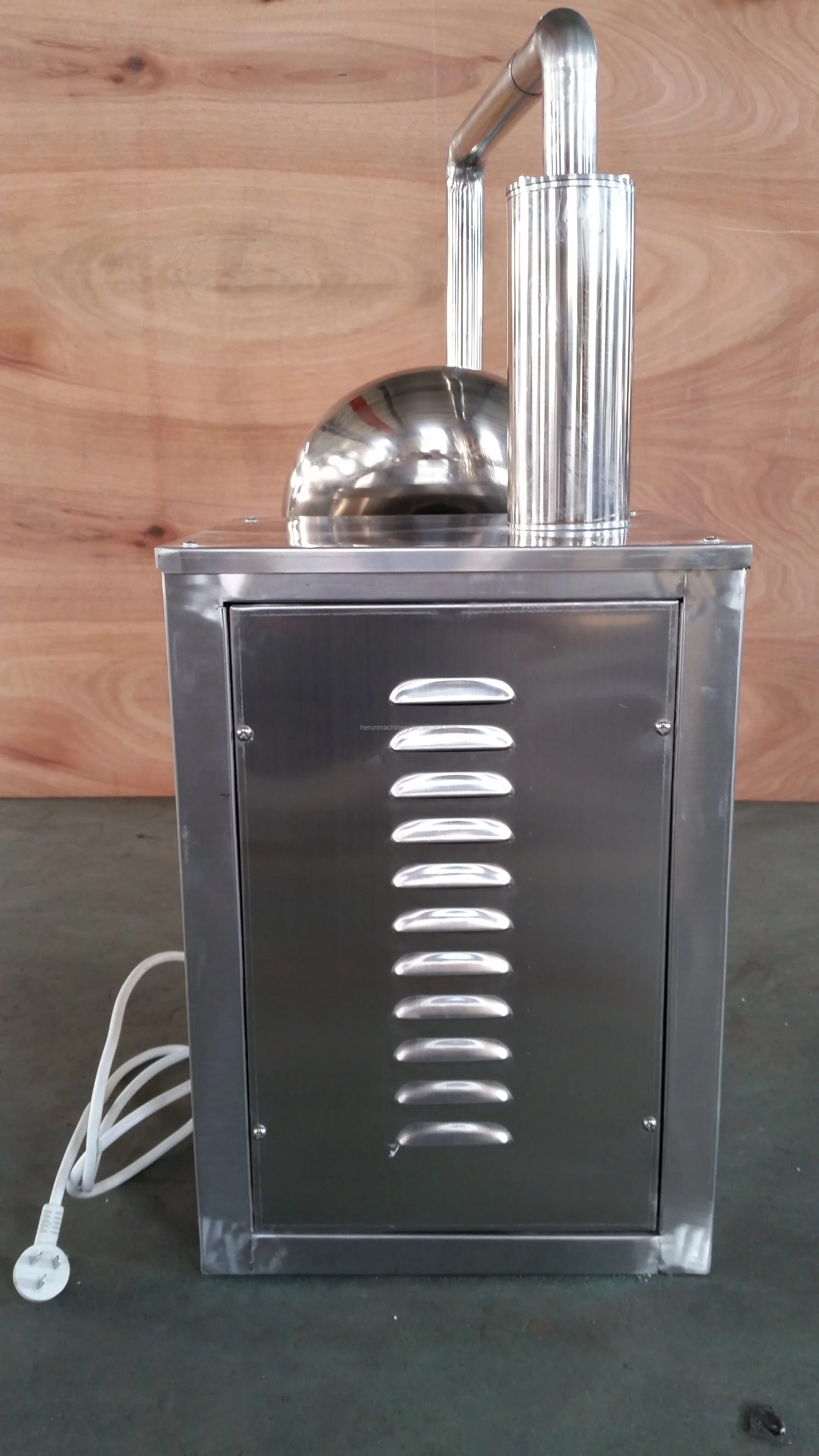

BY-400 Pharmaceutical bean sugar pill dragee coating machine

Introduction and Features
Tablet coating machine is mainly used for coating, glazing, granulating in the pharmaceutical industry, it is also used in the foodstuff, such as sugar coating beans, edible nuts, seeds or candy. Such as marble chocolate, peanut, fried flour-coated peanut, KACANG JEPUN, dumplings, crispy fruit and spicy bean and so on.

The tablet will have bright and smooth surface after being coated and polished. It protects the tablet core from being oxidized and deteriorated, from being affected with damp or volatilizing.It also covers the peculiar smell of tablet core, makes it easy for distinguishing and dissolving in human stomach intestine system. And the chocolate, peanut, bean, candy will be more delicious after being coated.

Main Technical Parameters

Model	BY300	BY400
Dia. of coating pan	300mm	400mm
Production capacity	1-2kg/time	2-5kg/time
Internal heating power	900w	900w
Motor speed	46r/min	46r/min
Power of main motor	0.55kw	0.55kw
Blower fan	40w	40w
External heating power	500w	500w
Net Weight	65kg	70kg
Dimensions(L x W x H)(mm)	485x585x766mm	485x585x810mm
