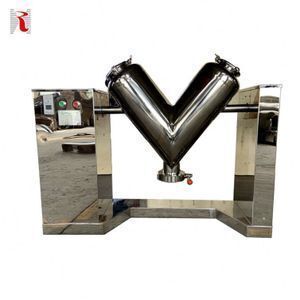

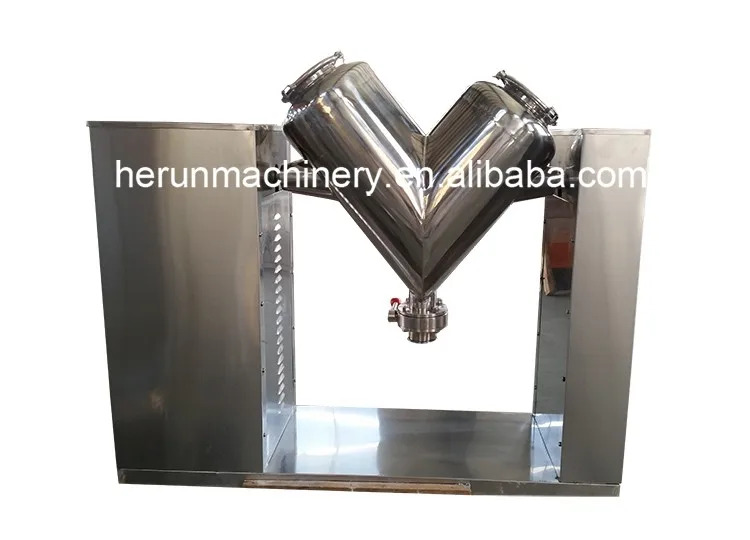

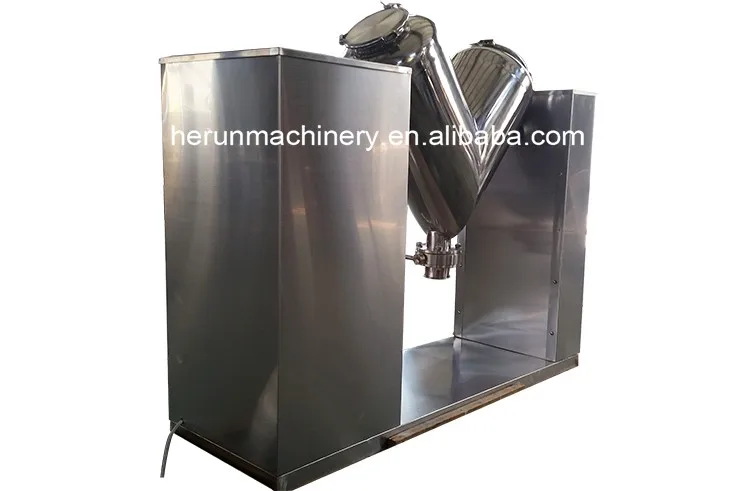

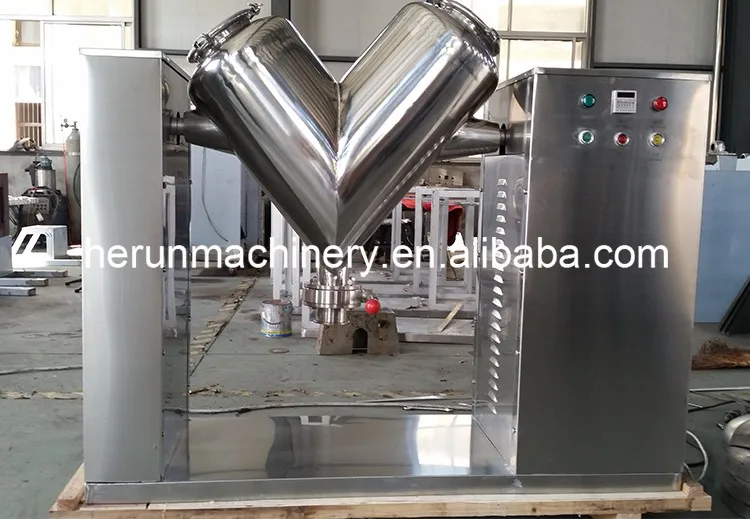

VH-50 Powder Mixture Machine Dry Blending For Dry Powders

Supplier: Herun Machinery (shanghai) Co., Limited
Region: Shanghai, China
Contact: Ms Li Yang
Price: $1300.00 /set
Min. Order: 1 set

Click here to contact

Product details

Key Selling Points:	Competitive Price;	Weight (KG):	150;
Voltage:	220V/380V;	Place of Origin:	Shanghai China;
Core Components:	Motor;	Application:	Powder;
Warranty of core components:	1 Year;	Mixer Type:	Agitator;
After-sales Service Provided:	Engineers available to service machinery overseas,Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;	Showroom Location:	None;
Barrel Capacity (L):	50L;	Model:	VH-50;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Other,Advertising Company;	Additional Capabilities:	powder mixing machine;
Warranty:	1 Year,1 Year;	Max Feed weight (KG):	20;
Max. Loading Volume (L):	50;	Material:	All stainless steel,SUS304;
Max. Loading Capacity:	50L;	Barrel Volume (L):	20;
Dimension(LWH):	13504501160mm;	Machinery Test Report:	Provided;
Mix with time (min):	6-8;	Certification:	ISO/CE,ISO/CE;
Payment Terms:	Western Union,T/T,MoneyGram;	Material Processed:	Chemicals,Food,Medicine;
Local Service Location:	None;	Brand Name:	Herun;
Supply Ability:	100 Unit/Units per Month mixer machine;	Product Type:	day powder;
Range of Spindle Speed(r.p.m):	18 - 20;	Motor:	0.75KW;
Video outgoing-inspection:	Provided;	After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;
Agitation speed:	20;	Condition:	New;
Packaging Detail:	export standard wood carton with film packed;	Port:	Shanghai;
Marketing Type:	New Product 2020;	Power (kW):	0.75;

Product Description

Type	Barrel Capacity (L)	Feed Volume coefficient	Max Feed weight (KG)	Agitation speed	Mix with time (min)	Motor Power (kw)
VH-5	5	0.4	1.5	60	6-8	0.25
VH-8	8	0.4	2.5	60	6-8	0.25
VH-14	14	0.4	4	46	6-8	0.37
VH-100	100	0.4	28	15	6-8	1.1
VH-200	200	0.4	55	12	6-8	1.5
VH-300	300	0.4	80	12	6-10	1.5
VH-500	500	0.4	140	12	6-10	2.2
VH-1000	1000	0.4	300	12	6-10	3
VH-1250	1250	0.4	375	10	6-10	3.5
VH-1500	1500	0.4	450	10	6-10	4

This machine is suitable for pharmacy and other industries, used for mixing the dry granule materials.

This machine adopts manual feed and closed disc valve discharge, which can avoid dust spilling; with unique mixing barrel structure, high efficiency blending, and no dead angle. Using stainless steel material, prevent the mixing materials from being polluted.

The inside and outside of machine are polished. Mixing the materials evenly and apply to a wide range of fields. It also can be equipped with the compulsory mixer, which is according to the users' demand. It is suitable for smaller powder, blocks and the material that contain a certain mixture of water. In addition, the machine is also equipped with a timing device; you can control the material mixing time.

Features:

1. Compact structure, operation simple, maintenance convenience.

2. All parts contact with materials are all made of high quality stainless steel, and the inside wall

and outside wall of the mixing vat are mirror polished, easy to wash, no pollution, meet the GMP

standard.

3. The machine adopts V type asymmetric mixing vat to compound, no dead angle, no

accumulation of materials, high speed, and short mixing time, high uniform mixing.

4. Running steady, no noise

5. The machine is equipped with a timing device, it can set mixing time to realize

automatic stop
