RTMP/PTSP/HTTP/ONVIF/UDP 1080P Video Encoder HDMI H.265 Encoder with audio Products from Shenzhen Chirui Video Technology Co., Ltd.

Product Details

CBR/VBR rate:	16Kbps~16Mbps;	Resolution:	1080p;
Encode format:	H.265/H.264;	Port:	Shenzhen;
Input:	HDMI;	Protocol:	UDP, HTTP, RTSP, RTMP, ONVIF;
Package Preview:	;	Brand Name:	CreHiVi/OEM;
Supply Ability:	10000 Piece/Pieces per Month;	Product name:	H.265/H.264 HDMI Video Encoder;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal;	Packaging Detail:	gift box,standard package;
Certification:	CE,FCC,ROHS;	Audio Input:	3.5mm Line;
Place of Origin:	Guangdong China;	Model Number:	HV-HE01;

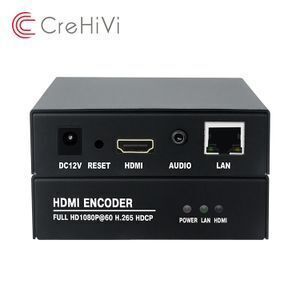

RTMP/PTSP/HTTP/ONVIF/UDP 1080P Video Encoder HDMI H.265 Encoder with audio

Product Description

Five service butlers:
1.IP Matrix on Monitoring system
2.Hotel IPTV system live solution
3.Video conferencing system
4.Educational Recording System Solution
5.Digital Signage HD stream server

Parameters:

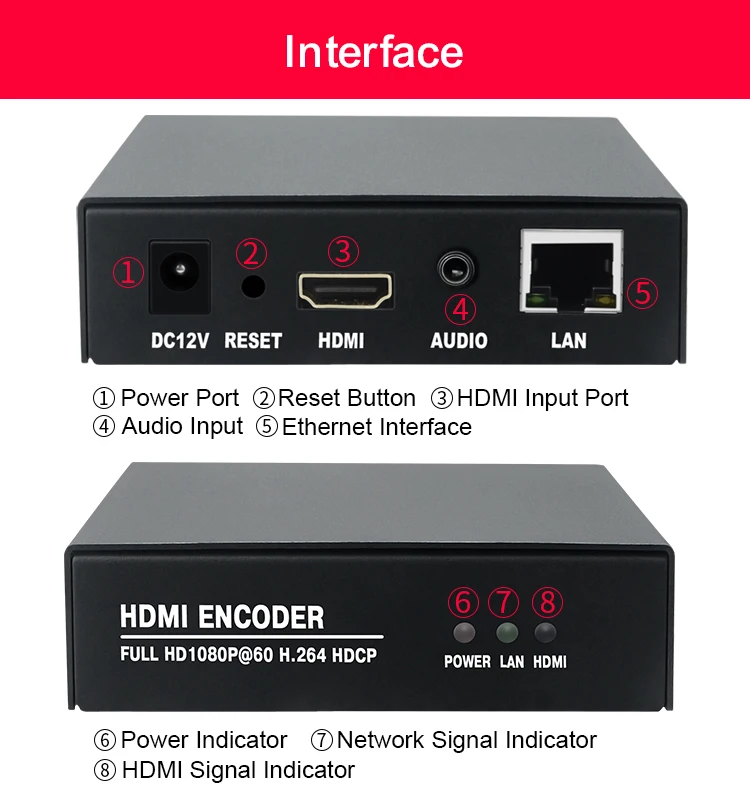

Input	1-channel HDMI input
Output	1-channel IP output
Video	Input resolution	1920x1080/1680x1050/1280x720/1600x1200/960x540/720x576/704x576, etc.
	Encoding standard	H.264/H.265
	Size after encoding	640x360-1920x1080 (adjustable)
	Code rate	CBR/VBR control 32KBIT/S~32MBIT/S
	Frame rate	30/60 frame
Audio	Input	1-channel HDMI embedded audio
	Audio encoding	AAC/MP3/MP2
	Audio rate	64Kb/s-384Kb/s
	Sampling rate	32000, 44100 etc
	OSD	Text, picture
IP output	1 RJ 100M Ethernet port, TS standard stream, four code streams, Onvif protocol. 265 version is 1000M.
System	Network protocol	Supports RTSP, HTTP, RTMP, UDP, multicast and unicast
System	Configuration management	Support IE configuration, remote upgrade
Common	Power supply	220/110V-2A
	Power consumption	5W
	Size	100mm x 70mm x 32mm (LxWxH)
	Working temperature	-20℃-+ 60℃
	Working humidity	<90%, non-condensation
	Weight	0.2KG
Our company have the right to adjust the parameter without notice, if has any question, please contact us for update.

New Product

Our Services

Certifications

Packaging & Shipping

FAQ

1. After-sales Service

1 year warranty for all kinds of products;

2. Payment

T/T, Paypal. Credit insurance on alibaba

3.Transportation

Transported by DHL,UPS,EMS, Fedex, Air freight, sea freight.

4.Can I get a sample for testing firstly?

Even if we are doing wholesale business, We could fully understand the further cooperation is based on time andquality. So one set of sample to test is totally welcomed. Also OEM/ODM is acceptable.

5. How long will I receive the product?

There are enough stock for most of products, regularly the delivery time is around 1~4 work days(except busy season)after payment received.
