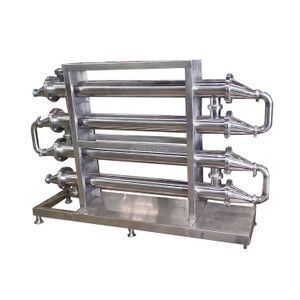

Food grade high viscosity cool shell and jam tube exchanger sauce tomato puree stainless steel heat exchanger
- 290.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Flow: | 0-30T/H; | After-sales Service Provided: | Video technical support,Online support; |
| Key Selling Points: | Competitive Price; | Local Service Location: | Canada; |
| Name: | shell and tubular heat exchanger; | Packaging Detail: | PLYWOOD CASE; |
| Origin: | Wenzhou rayentank machienry; | After Warranty Service: | Video technical support; |
| Warranty: | 1 Year; | Showroom Location: | Canada; |
| Core Components: | Motor; | Brand Name: | RAYEN; |
| Working Temperature Range: | 0-150℃; | Place of Origin: | Zhejiang China; |
| Supply Ability: | 100 Set/Sets per Month; | Function: | Cooling or Heating Liquid; |
| Marketing Type: | New Product 2020; | Liquid Flow Rate: | 0-30T/H; |
| Dimension(L*W*H): | customized; | Maximum Working Pressure: | 10/16 Bar; |
| Weight: | 5-500KG; | Applicable Industries: | Manufacturing Plant,Food & Beverage Factory,Food & Beverage Shops; |
| Voltage: | 220V/380V; | Condition: | New; |
| Certification: | CCC,ce,CSA,RoHS,UL; | Video outgoing-inspection: | Provided; |
| Material: | SS304 / SS316L; | Application: | Food Industry; |
| Product Name: | tube Heat Exchanger; | Structure: | Tube Heat Exchanger; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Connection type: | Flange clamp; |
| Warranty of core components: | 1 Year; | Port: | NINGBO PORT; |
| Machinery Test Report: | Provided; | Type: | Tube Typle; |
Alibaba Leading Company TOP10 Supplier

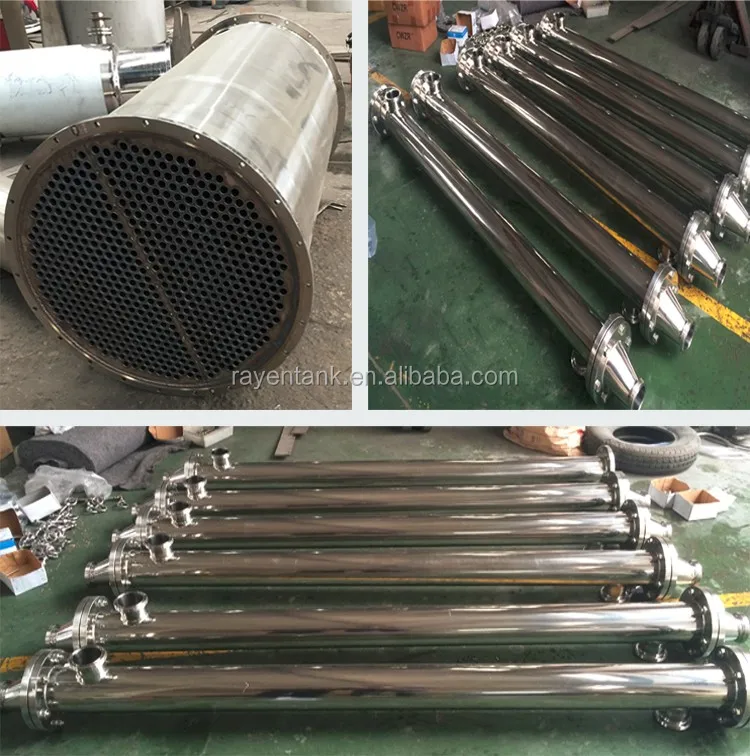

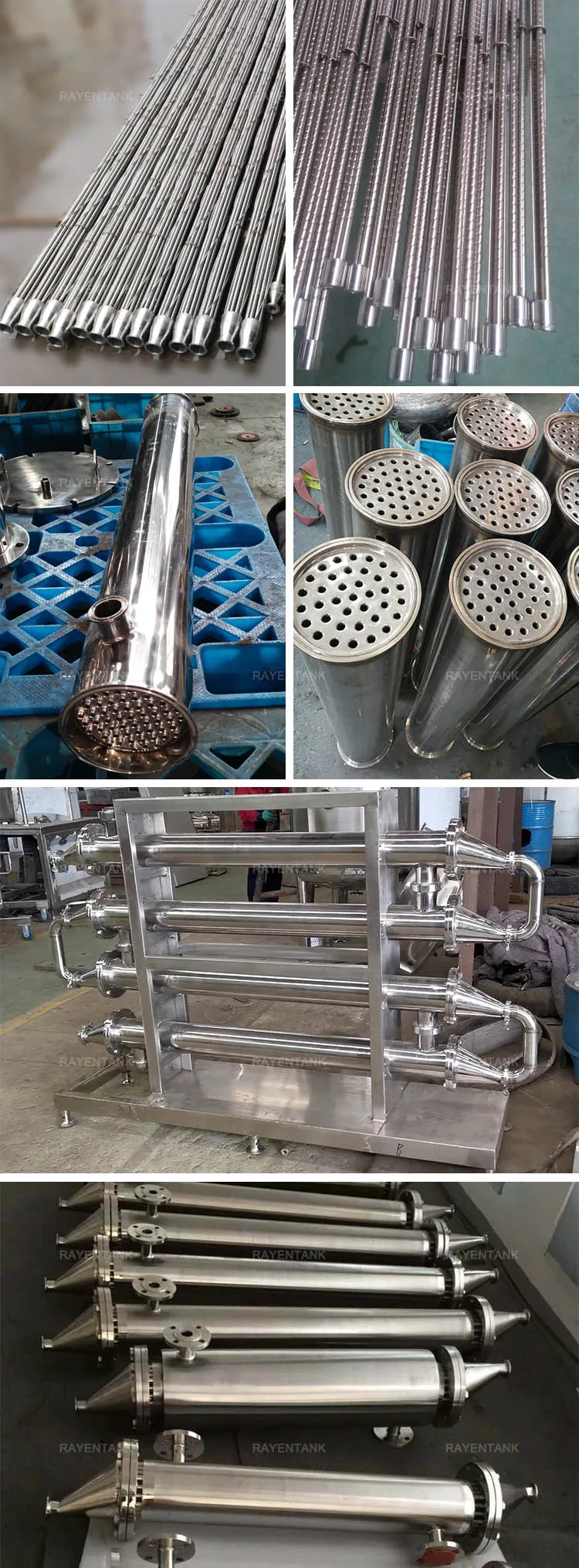

Best factory price food grade stainless steel and shell and tube heat exchanger
The equipment that can transfer certain heat from the thermal fluid to the cold fluid. It is the essential equipment to achieve the heat exchange and transfer during the production process.
It is mainly used for heating and cooling treatment of material during production in pharmaceutical industry. Chemical industry, food industry, light industry etc. The lined pipe heat exchanger can be made of SS304/316 etc.
| Model | Product capacity(T/H) | Sterilizing temperature(℃) | Heat exchanger area(M²) | Warmkeeping time(S) |
| RTX-1 | 1 | 85-95℃(According to customer requirements) | 12.0 | 25S(According to customer requirements) |
| RTX-2 | 2 | 15.0 | ||
| RTX-3 | 3 | 20.0 | ||
| RTX-4 | 4 | 25.0 | ||
| RTX-5 | 5 | 28.0 | ||
| RTX-5 | 10 | 52.0 | ||

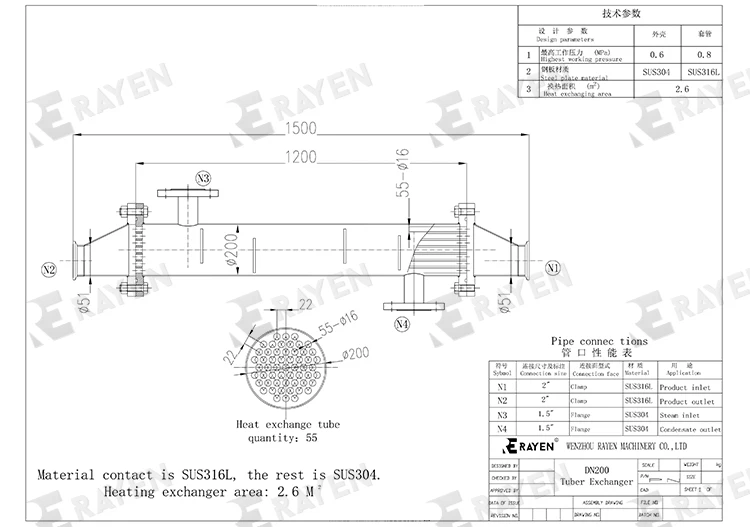

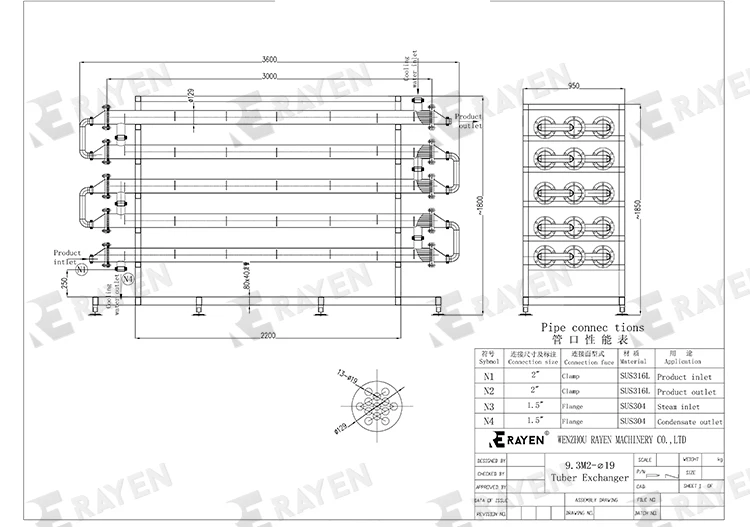

| we can design drawing according to your requirment. | ||||
| 1.Q: Are you manufacturer or trading company? |
| A: RAYEN is a professional manufacturer. |
| 2.Q: How could we confirm the details of the products? |
| A: RAYEN will provide the detail drawings for you to confirm. |
| 3.Q: How long the warranty will be? |
| A: 1 Year warranty. |
| 4.Q: Do you take L/C? |
| A: Yes, we accept Western Union, T/T and irrevocable L/C payable |
| 5.Q: Can we become your distributor in our country? |
| A: Yes, we very welcome you! More details will be discussed if you are interested in being our agent. |
