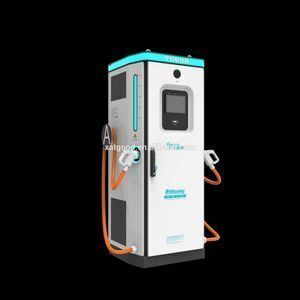

Public CCS2 Combo&Chademo 50KW dc fast ev charging stations

Supplier: Xi'an TGOOD Intelligent Charging Technology Co., Ltd.
Region: Shaanxi, China
Contact: Mr. Mark Mu
Price: $6400.00 / >=5 units
Min. Order: 5 units

Click here to contact

Product details

Output Voltage Range:	200~750V;	Output Current Range:	0-125A;
Warranty:	12 Months;	Supply Ability:	500 Unit/Units per Month;
Place of Origin:	Shaanxi China (Mainland);	Port:	Shanghai or Tianjin;
Application:	ev charging;	Output power:	50KW;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Model Number:	TGOOD-50DC;
Brand Name:	TGOOD;	Charging standard:	IEC61851-1/IEC62196-3;
Packaging Detail:	Standard export box or as per customers' requirements.;

Product Description

50kw/100kw DC Quick charging station features with safe and quick, designed CCS and Chademo standards, almost compatible with all kinds of electric vehicles on market, quickly charging your car in short time with safe high effiency ,by using 50kw charging station, a typical electric car with 50kWh battery pack may be charged as quickly as 50 minutes to get up to 80% of its capacity. And it cost 25 minutes to get up to 80% of its capacity with 100kW charger.

1. Access to customer's own system with OCPP 1.6
2. Support remote monitoring and maintenance

3. Charging module has a sleep function, based on the number of modules automatically select the size of the load current to start, so that the module and efficient operation

4. Acceptable remote trip command to achieve the emergency stop function.

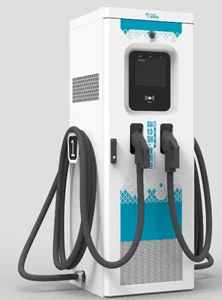

50kW/100kW DC charging station contains CCS2 and CHAdeMO connectors

Technical Parameter

Description	50kw DC CHARGER	100kw DC CHARGER
AC INPUT
Input Voltage	3-phase+neutral+PE 360~440VAC	3-phase+neutral+PE 360~440VAC
Input Current	0~87A	0~174A
Frequency	45~65Hz	45~65Hz
Power Factor	≥0.99	≥0.99
Input THDi	≤5%	≤5%
DC OUTPUT
CCS2 Output Voltage	200~750V	200~750V
CCS2 Output Power	50kW	100kW
CCS2 Output Current	0~125A Continuous	0~200A Continuous
CHAdeMO Output Voltage	200~500V	200~500V
CHAdeMO Output Power	50kW	62.5kW
CHAdeMO Output Current	0~125A Continuous	0~125A Continuous
Voltage Regulation Accuracy	≤±0.5%	≤±0.5%
Current Regulation Accuracy	≤±1%	≤±1%
Charging Type	MODE 4 ; CASE 3	MODE 4 ; CASE 3
Features
Efficiency	Up to 95%	Up to 95%
IP Level	IP54	IP54
IK Level	IK10	IK10
Charging Access	Button/RFID Card/APP	Button/RFID Card/APP
Screen	8” LCD	8” LCD
Standard	IEC61851-1 / IEC62196-3	IEC61851-1 / IEC62196-3
Connector	CCS Combo 2 / CHAdeMO	CCS Combo 2 / CHAdeMO
Ambient Tempreture	-20℃~50℃(Full load)	-20℃~50℃(Full load)
Relative Humidity	5%Rh~95%Rh	5%Rh~95%Rh
Altitude	≤2000m	≤2000m
Dimensions	≤7005001800mm	≤7007001800mm
Protection	Class 1	Class 1
Short Circuit Current Rating	35 kA rms symmetrical(@400VAC input voltage)	35 kA rms symmetrical(@400VAC input voltage)
Language	English/Chinese
Emergency	Emergency stop button(Red)
Protection
Input Over-Voltage Protection	Yes
Input Low-Voltage Protection	Yes
Output Over-Voltage Protection	Yes
Short-Current Protection	Yes
Over-Current Protection	Yes
Certification
Certification	CE
Environment	ROHS
Else
Appearance	Customized Silk Screen Designation
Cable Length	Customized

Packaging & Shipping

Standard export wooden box or as per customer requirements, usually shipping will be ocean shipping from Shanghai or Tianjin port.

Our Services

TGOOD(stock code: 300001) is the biggest and the most professional EV charging manufacturer based in China, providing customers with different EV chargers, covering the standards of IEC,GB/T,EN62196; SAEJ1771 and CHAdeMO, OEM, ODM and integrated solutions services are available.
