MS-2600 Manual Stone Polishing Machine for Granite, Granite Polishing Machine

Supplier: Fujian Wanlong Diamond Tools Co., Ltd.
Region: Fujian, China
Contact: Ms Wanlong Guo
Price: $2600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Key Selling Points:	Long Service Life;	Brand Name:	WANLONG;
Website:	www.wanlongstone.com;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Weight:	850kgs;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Supply Ability:	40 Set/Sets per Month stone polishing machine;	Marketing Type:	New Product 2020;
Core Components:	Motor,PLC;	Max. processing width:	2600c900mm;
Color:	yellow;	Application:	all kinds of granite;
Local Service Location:	Egypt,Italy,Russia;	Dimension(LWH):	2600x900mm;
Warranty:	12 months,1 Year;	PLC Brand:	PANASONIC;
Packaging Detail:	waterproof material, crates, steel rope;	Showroom Location:	Egypt,Italy,Russia;
Type:	Stone Polishing Machine;	Place of Origin:	Fujian China;
Voltage:	upon your request;	Power:	4.5/5.5kw;
Certification:	CE Certificate;	Material:	100% Strong Cast Iron;
Use:	Granite;	After-sales Service Provided:	Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Warranty of core components:	1 Year;	Cutting thickness (max):	400mm;
Video outgoing-inspection:	Provided;	Product name:	MS-2600 Manual Stone Polishing Machine;
Main Motor Brand:	SIEMENS;	Condition:	New;
Production Capacity:	25-30sqm per 8 hours;	Machinery Test Report:	Provided;
Port:	XIAMEN;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Construction works ;

Product Description

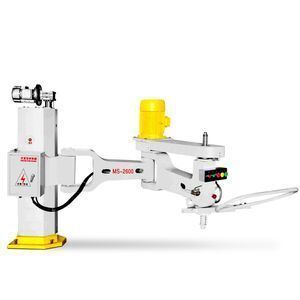

MS-2600 Manual Stone Polishing Machine for Granite, Granite Polishing Machine

This machine uses round column as its guide slip surface for steady automatic ups and downs. Two optional main drive motors (single speed and dual speeds) are upon the client's choice. It is applicable to surface grinding and polishing of granite and marble. especially for tombstones, slabs and mosaic. Available for Arc slab polishing as well if assorted with table.

Configurations:
1. SIEMENS main motor with stronger seats.
2. PANASONIC PLC and inverter.
3. Strong cast iron HT200.
4.Touch sensitive Panel Easy for worker to operate.
5. 8-9 sqm per hour for medium hard marble with 20-30mm thicknesss.

Model		MS-2600
Gyro radius	mm	2600
Range of vertical stroke	mm	0-800
Grinding wheel diameter	mm	220
Overall dimensions (L x W x H)	mm	3500 x 650 x 1700
Main motor power	kw	5.5
Water consumption	m³/h	3
Approximate weight	kg	850
