WXD3590 Wirewound Potentiometer 1K 2K 5K 10K 20K 50K 100K

Supplier: Sichuan Qixing Electronics Co., Ltd.
Region: Sichuan, China
Contact: Ms Weidong Tong
Price: $1.10 /piece
Min. Order: 1 piece

Click here to contact

Product details

Advantage:	13 years of manufacture;	Brand Name:	BONENS;
Service:	OEM Customization;	Technology:	Wirewound;
Place of Origin:	Sichuan China;	Linear accuracy:	±0.25%;
Product name:	WXD3590 Wirewound Potentiometer 1K 2K 5K 10K 20K 50K 100K;	Key words:	Potentiometer;
Rated Power:	2W;	Certification:	RoHS TUV ISO9001;
Shaft Material:	Aluminum/Iron/Copper;	Model Number:	WXD3590S;
Resistance Tolerance:	±2%,±5%;	Operating Temperature:	-55°C~+125°C;
Single gross weight:	1.0 KG;	Max. Operating Voltage:	500V;
Single package size:	6X5X3 cm;	Total rotation angle:	3600°±10°;
Sets Material:	Aluminum/Iron/Copper;	Resistance:	100Ω~100KΩ;
Delivery time:	1-7 Workdays for normal orders;	Selling Units:	Single item;
Type:	Rotary Potentiometer;	Packaging Detail:	25units / tube 50units / box;

WXD3590 Wirewound Potentiometer 1K 2K 5K 10K 20K 50K 100K

Product Description

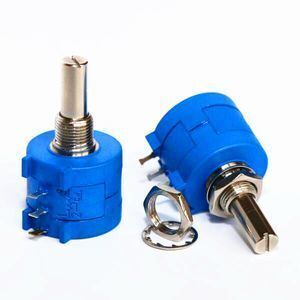

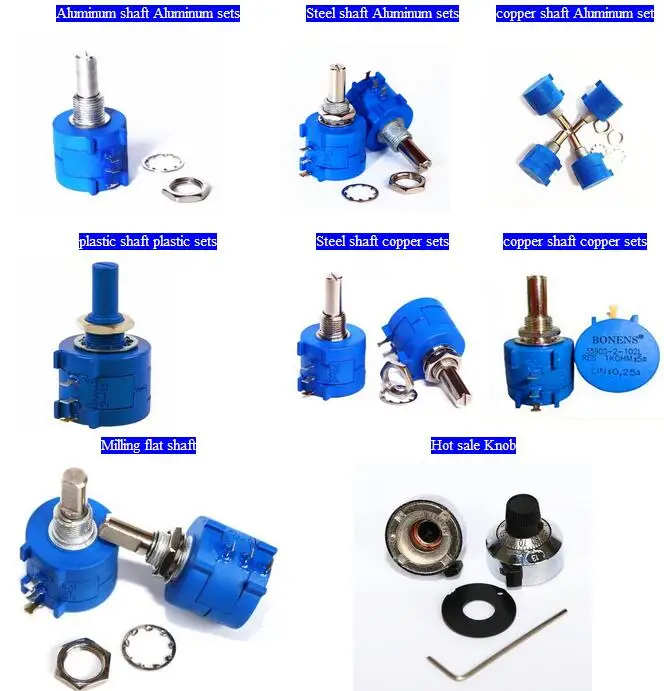

WXD3590S Pictures:

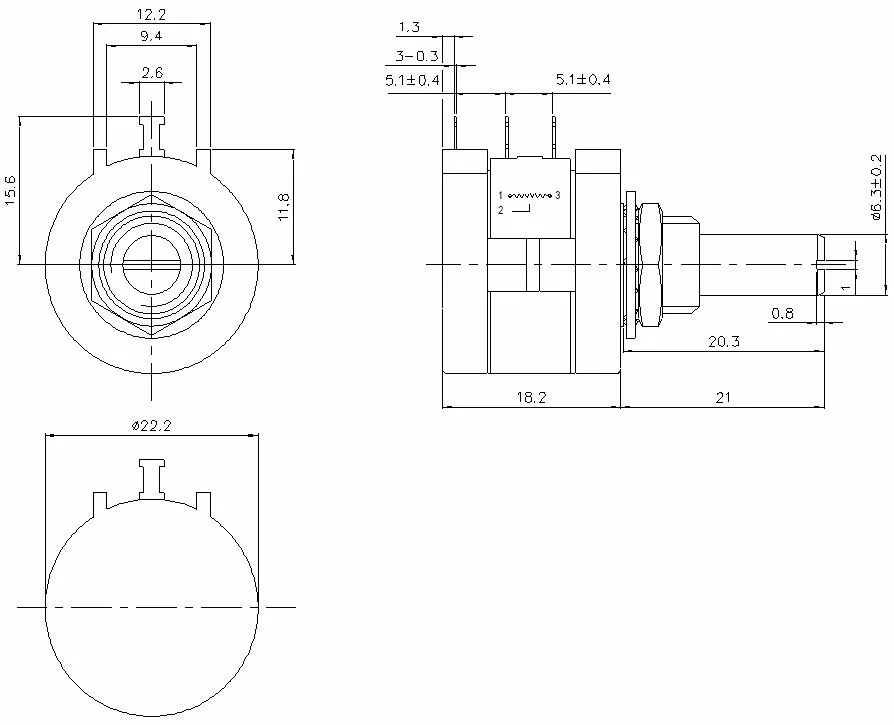

WXD3590S Dimention Drawing:

WXD3590S Data Sheet:

Electrical Characteristics	Range of nominal resistance	100~100KΩ
	Resistance tolerance	±5%
	Terminal resistance	≤2%R or 5Ω
	Peak noise	≤100Ω
	Linear accuracy	±1%, ±0.5%
	Electrical angle	3600°±10°
	Insulation resistance	≥ 200MΩ
	Withstand voltage	500V (DC or AC peak value)
Environment Characteristics	Rated power	2W (70°C)
	Temperature range	55°C~+125°C
	TCR	±100×10-6/°C
	Temperature shock	ΔR≤±3%R
	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Moisture proof (GJB306A- 96-Method106, not for 7a, 7b inapplicability)	ΔR≤±3%R, Insulation Resistance≥100MΩ
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, Electrical break≤100μS
	Rotational life(10000cscles)	ΔR≤±3%R,peak noise≤500Ω, Starting Torque≤20mN.m
	Electrical endurance (70°C, 2W, 1000h)	ΔR≤±3%R
	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤±3%R, Insulation Resistance≥100MΩ, Starting Torque ≤20mN.m
Physical Characteristics	Total mechanical travel	3600°±10°
	Rotational torque	2~10mN.m
	Stopper torque	≥300mN.m

Packaging & Shipping

WXD3590S Shipping Ways:

DHL & TNT & UPS & FEDEX & by air & by sea .....

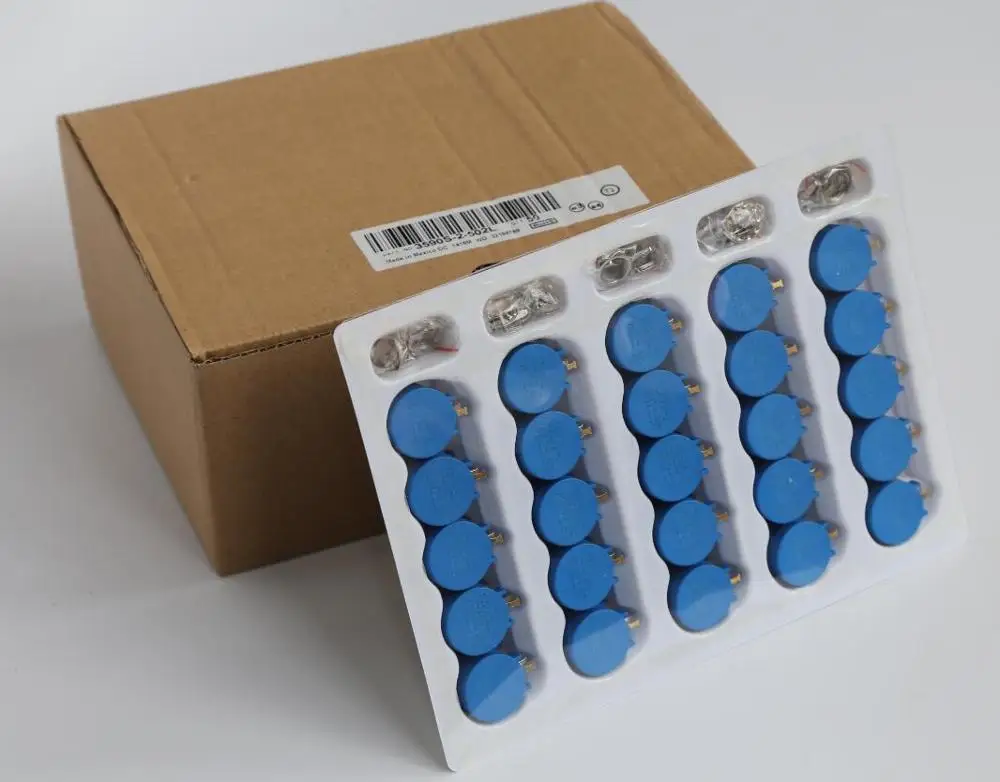

WXD3590S Packaging ways:

25units / tube , 50units / box ,200/400/600units

Company Information

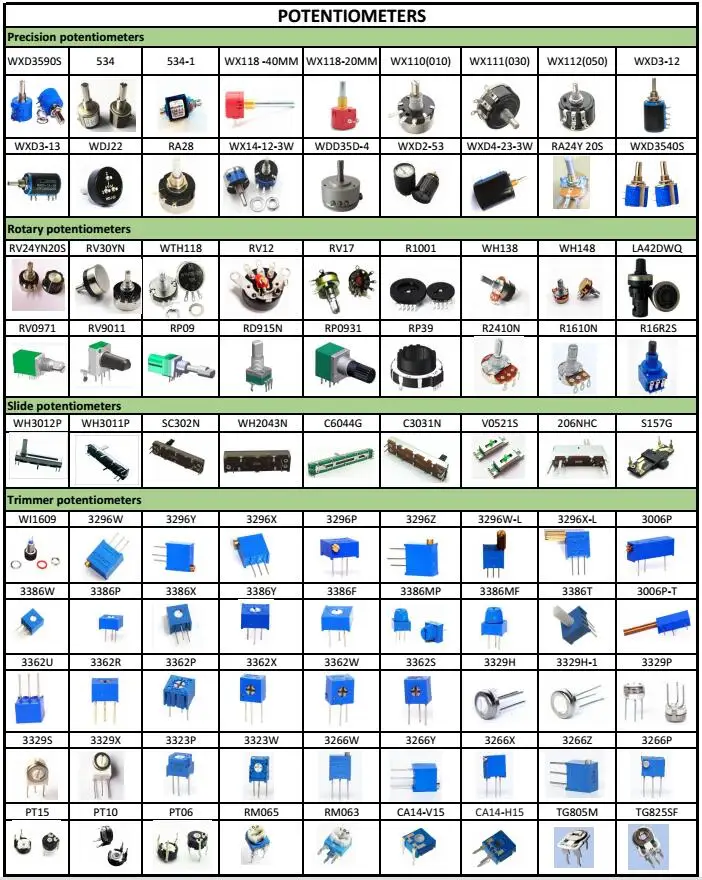

Our Other Products :

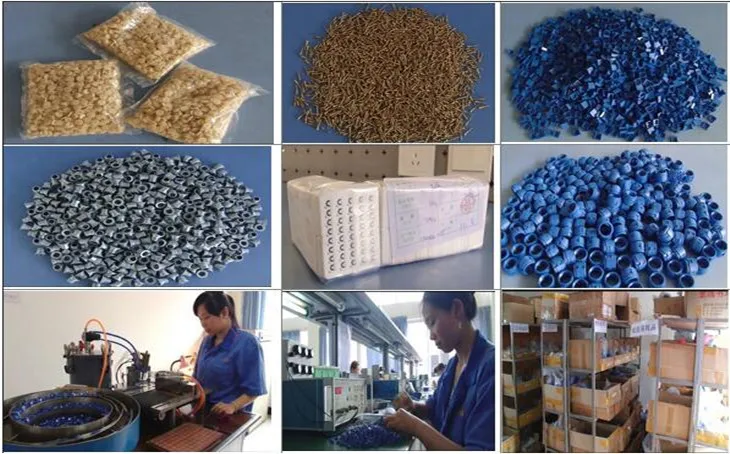

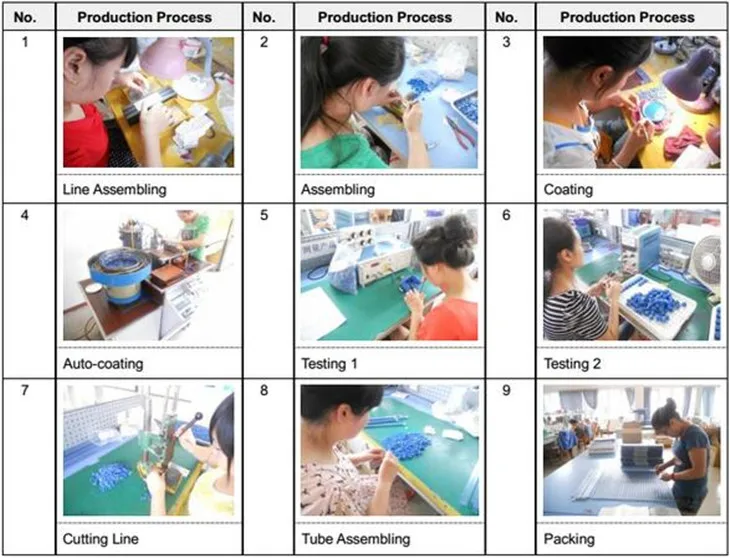

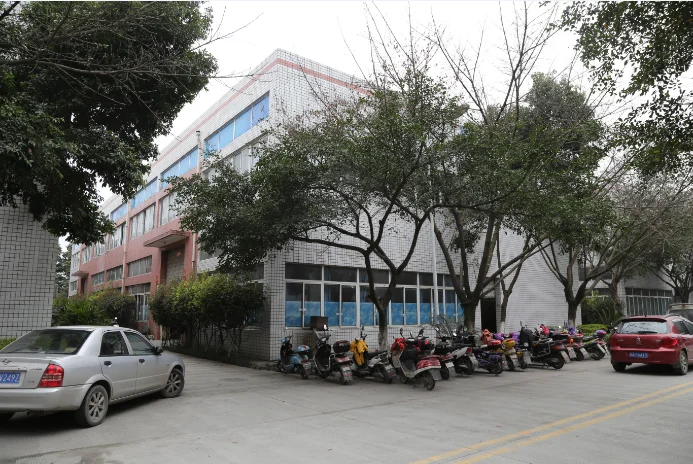

Factory Introduction:

Our company is a professional manufacturer engaged in ceramic high-power resistors, wirewound potentiometers,cermet potentiometers, carbon film potentiometers, and precision parts development/production. The company has many years of experience in the production of civilian and military-grade products. The company strictly establishes the ISO9001 quality management system and obtains the ISO9001-2000 quality management system certification. Our products are widely used in electronic communications products, instrumentation, cable television equipment, electrical products, color TVs, color displays, audio and video products, etc., in order to maintain The leading position in the industry further enhances the company's product development capabilities. The company took the lead in introducing high-temperature polymerization furnaces with world-leading levels in the United States to establish a ceramic resistor manufacturing line.
The company currently employs 500 people, including 56 professional and technical personnel (35 people with more than 10 years experience in potentiometer/high-power resistors). Our company organizes professional and technical personnel to develop products that meet customer requirements, and provides a large number of qualified products for the military industry units, making a certain contribution to the defense industry of the motherland!
"Technological innovation, excellence, continuous improvement, customer satisfaction" is our company's quality policy, "to fully satisfy customers" is our goal, Kaixing employees are full of enthusiasm to cast our tomorrow's greater glory and work hard!
