Full Automatic Multifunction Non Woven Fabric Slitting Machine

Product details
Packaging Detail:slitting machine packed by Wooden Box;Port:NingBo;
Overall size:2400x1800x950mm;Condition:New;
Place of Origin:Zhejiang China;Certification:CE;
Payment Terms:L/C,D/A,D/P,T/T;product name:25-1800mm;
Voltage:380V/220V 50Hz,380V/220V 50Hz;Weight:500Kg,500Kg;
Marketing Type:New Product 2020;Supply Ability:30 Set/Sets per Month;
Video outgoing-inspection:Provided;Slitting speed:30-80m/min;
Certificate:CE;Power:3Kw,3Kw;
Core Components:PLC,Motor;Applicable Industries:Manufacturing Plant;
Automatic Grade:Automatic;Type:Other;
Showroom Location:None;Warranty:one year,1 Year;
Brand Name:Allwell;Dimension(L*W*H):2400x1800x950mm;
Warranty of core components:1 Year;Machinery Test Report:Not Available;
Slitting width:25-1800mm;After Warranty Service:Video technical support,Online support,Spare parts;
Local Service Location:None;



Product Description

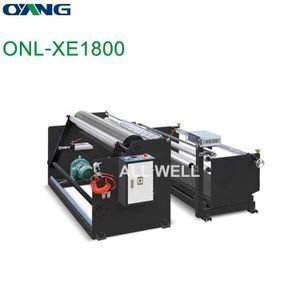

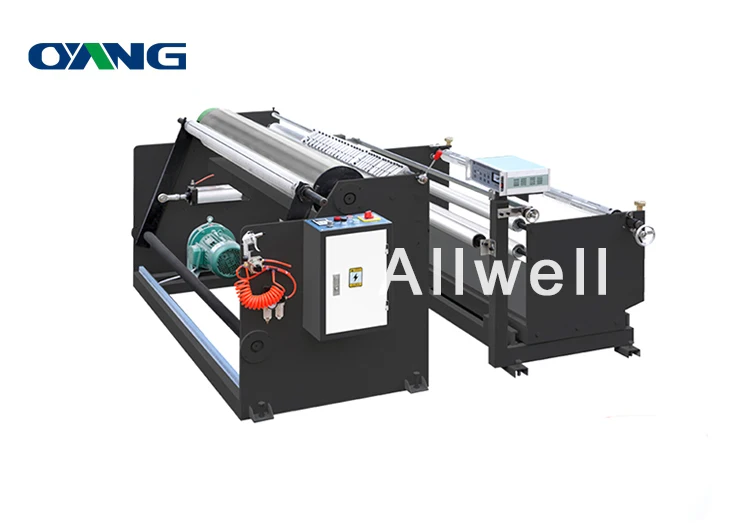

ONL-XE1800 Non Woven Slitting Machine is special for non woven fabric slitting. Also can slitting BOPP, PET, CPP, PVC and other plastic films.

Main Technical Variables
Type
ONL-XE1800
Slitting width
20-1800mm
Slitting speed
30-80m/mm
Power supply
380v/220v 50Hz
Total power
3kw
Overall size
240x1800x950

Main Features

1.Plat steel welding, firmly and balanced, more stable in the high-speed operation.
2.Chromium-plated steel pipe dynamic balance processing.
3.Feeding with 3 inch air shaft, maximum feeding diameter is 1200mm with magnetic powder tension controller and edge automatically align device.
4.Rewinding with 3 inch air snaft and magnetic powder contoller,easy to operate,maximum rewinding diameter is1000mm;rewinding aesthetic and neatly.
5.Cutter can use special blades or flat knife(cutter blades),18mm-3200mm adjustable.
6.Spaindle and circular Knife with CVT system,can be used as high-low speed control and reversing switch control electric speed control system with manual adjustment.convenient and simple to operate.
7.Double-faced diamond with grinding and sharpening system,the grinding wheel lite is up to two years sharpening without disassemble with long life.superior efficiency with dust absorption equipment to maintain the fabric and trackclean.
8.Importing precise ball screw and slides. paralleled promoting the cutting width.importing AC motor step-less adjustment system to adjust and control the cutting speed.high-precise cutting,the accuracy can be controlled within 0.1mm.
9.Standard configuration deviation-checking equipment system to further ensure the utting precision.
10.Chinese and English operation interface with LCD display screens,can direct input.
Company Information



Flow Chart&Process



Certificates



Exhibition



Our Services



More Products



FAQ

Q1. How long will your engineer reach our factory?
Our After-sales Specialist would contact with you, confirm the final scheduling according to your reasonable request.


Q2. How many days will you finish installing?
We will finish installation and training within 7-10 days.


Q3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets,SIM card, hotel, food, and also their salary 80USD one day per person.


Q4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.


Q5. How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 80USD/day.


Q6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.


Q7. Does your engineer understand English?
Our engineers understand a little English. All of our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.


Q8. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our after sales specialist at any time.weour after-sales department with 30 engineers.Our engineers will take a solution video according your description.


Q9. How many workers do we need running those machines?
Except two for bag making machine, flexo printing machine, slitting machine, ultrasonic sewing machine, hydraulic punching machine only need one person for each.
