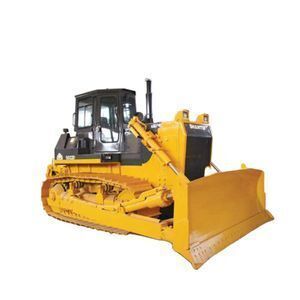

Shantui Official SD16 160HP new crawler bulldozer for sale

Product details
Hydraulic Valve Brand:Shantui;Port:Qingdao,Tianjin,Shanghai;
Moving Type:Crawler Bulldozer;Dozing Capacity:5m³;
Showroom Location:United States,Russia,UAE,South Africa;Machinery Test Report:Provided;
Video outgoing-inspection:Provided;Brand Name:SHANTUI;

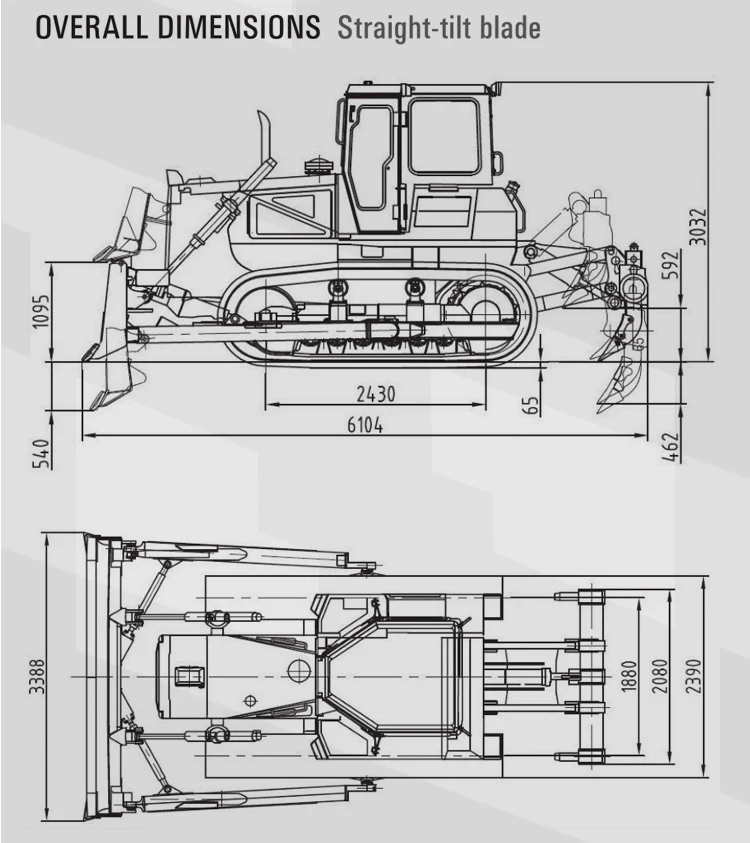

Hydraulic Cylinder Brand:Shantui;Dimension(Long * Breadth * High):6104*3388*3032mm;
Hydraulic Pump Brand:Shantui;Payment Terms:L/C,D/A,D/P,T/T,MoneyGram,payment for offline orders;
Supply Ability:10000 Unit/Units per Year;UNIQUE SELLING POINT:High operating efficiency;
Core Components:Engine,Bearing,Gearbox,Gear,Pump;After-sales Service Provided:Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;
Local Service Location:Canada,Turkey,United States,Germany,Philippines,Saudi Arabia,Indonesia,Pakistan,India,Russia,Thailand,Kenya,UAE,Algeria,South Africa,Kazakhstan,Ukraine;Type:Bullldozer;
Applicable Industries:Construction works ,Energy & Mining,Forest logging;Condition:New;
Marketing Type:Ordinary Product;Place of Origin:Shandong China;
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Package Preview:;
Warranty of core components:1 Year;Warranty:1 Year;
Machine Weight:17.0 t;Packaging Detail:Comply with export packaging requirements;

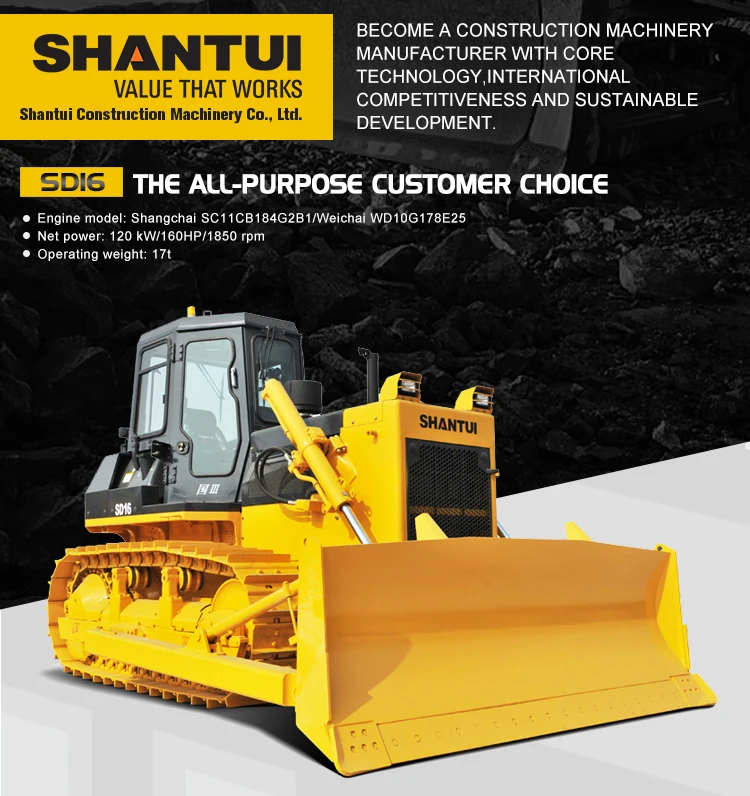

Shantui Crawler Bulldozer SD16 dozer 17 tones



Product Features

Shantui's best-seller worldwide, this is a medium-duty workhorse that comes off the factory line in various configurations for specific work environments, e.g. desert, swamp, forest, high altitude, etc.The SD16 provides high performance with strong reliability, with Shantui's trademark value.

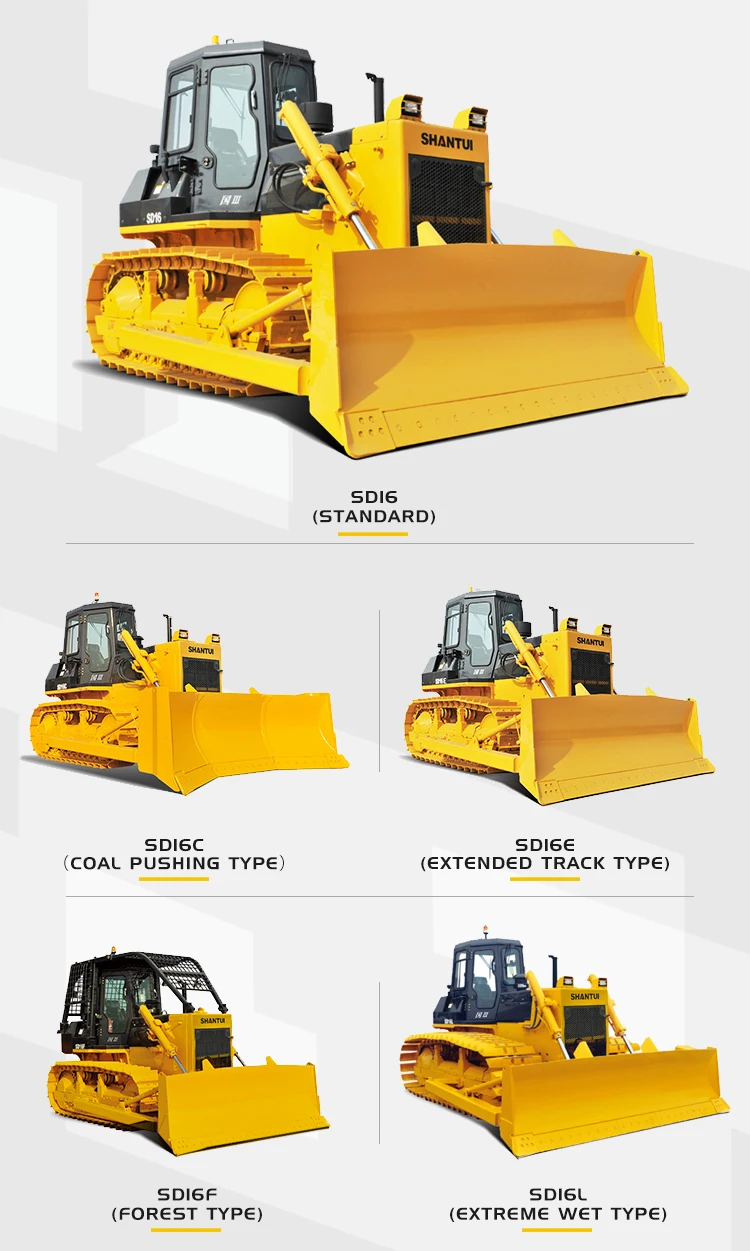

Type Unit Standard

Coal Pushing

Type

Extended Track

 Type

Forest Type Extreme Wet Type
Weight kg 17000 17370 17346 17000 18460

Minimum Turning

Radius

mm 4466 4466 4571 4571 4600
Ground Pressure Kpa 58 59.2 55 54 25
Track Width mm 510/560/610 610 510/560/610 510/560/610 950/1100
Blade Type

Straight-tilt/

Angle/U-Blade

Coal Pushing Blade

Straight-tilt/

Angle/U-Blade

Straight-tilt/Angle Straight-tilt
Blade Capacity 4.5/4.3/5 6.04 4.5/4.3/5 4.5/4.3 4.5
More Types





Parameter



+
Engine Model & type

Shangchai SC11CB184G2B1/Weichai WD10G178E25;

water-cooled, in-line, 4-stroke injection direct

Horsepower

Gross power: 131/175/1850 kW/HP/rpm //

Net power: 120/160/1850 kW/HP/rpm

Number of cylinders  6—126 x 130 mm (bore x stroke)
Piston displacement  9.726 L
Min. fuel consumption  214 g/kW·h
Maximum torque 765 N·m@1300 rpm

Power

 transmission

 system

Torque converter  3-element, 1 stage, 1 phase
Transmission  Planetary gear type, power-shift, forced lubrication
Main drive

Spiral bevel gear, single-stage speed reduction,

splash lubrication

Steering clutch

Lubricated, multi-disc, spring loaded, hand hydraulically separated, inter-linking with steering brake

Steering brake

Lubricated, floating band structure, foot brake

with hydraulic booster

Final drive 2-stage speed reduction of spur gear, splash lubrication
Travel speed Gear  1st 2nd  3rd
Forward 0~3.29 km/h  0~5.82 km/h 0~9.63 km/h
Reverse 0~4.28 km/h 0~7.59 km/h 0~12.53 km/h
Undercarriage
 system
Type Sprayed beam, suspended structure of equalizer
Carrier rollers 2 each side
Track rollers 6 each side
Track type  Assembled, single-grouser
Width of track shoes  510 mm
Pitch  203.2 mm
Hydraulic
System
Maximum pressure  14 MPa
Pump type  Gear pump
Discharge  243 L/min

Bore of

working cylinder × no.

110 mm × 2
Blade Blade Type Straight-tilt Angle U- Blade
Dozing capacity  4.5 m 3  4.4 m 3 5.0 m 3

Efficiency

(Theoretical value 40 m)

225 m 3 /h 225 m 3 /h 250 m 3 /h
Blade width 3388 mm 3970 mm  3556 mm
Blade height 1149 mm  1040 mm 1120 mm

Maximum drop

below ground

540 mm 530 mm 540 mm
Lifting height of blade 1095 mm  1110 mm  1095 mm
Riipper
(Optional)

Maximum digging depth

of 3-shank ripper

572 mm

Maximum lift

above ground

592 mm
Weight of 3-shank ripper  1667 kg
Technical Features



  • Weichai engine and high-efficiency fuel injection pump features high torque, equipped with Weichai 93 sand filter,high performances, high parts universality, and low maintenance cost.

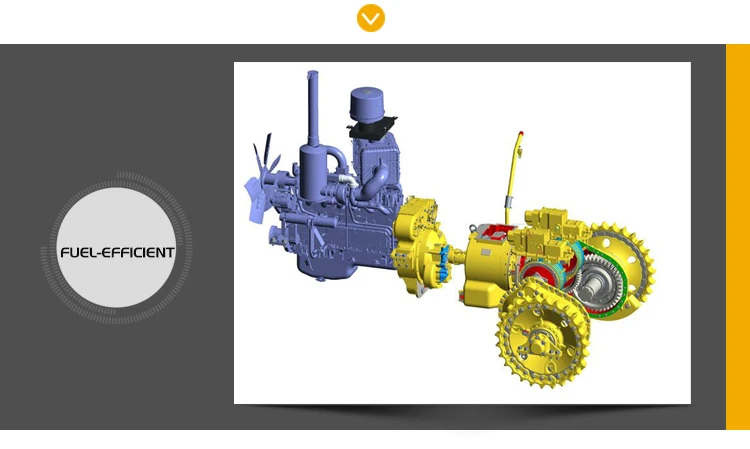

  • The core“transmission and torque converter”are fully self-made with features of digital design and precision casting, the torque converter efficiency reaches more than 90%, and the operating efficiency is higher (above 5%) than competitors under the same engine power
  • The engine covers 150-170 horsepower, one –button switching and fuel-efficient.

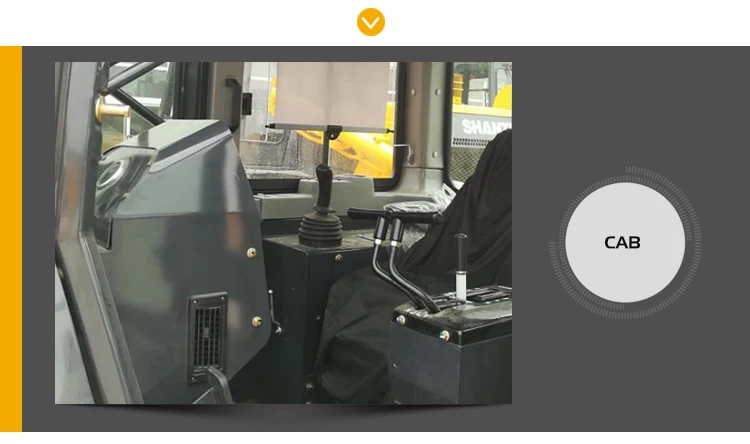

  • The ergonomic hexahedral cab features large space and excellent visual field.
  • The suspended single accelerator pedal features small volume, large foot space, and high operation comfort.
  • The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.
  • The safety walking passage system of the machine guarantees the driver’s safety.

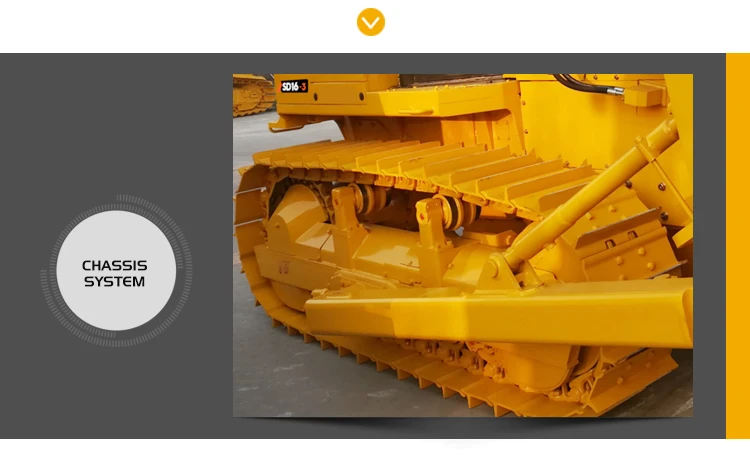

  • Shantui has a number of invention patents, and the chassis system life is longer than the same industry level.
  • Developed according to different working conditions, such as standard, wetland, super wetland, sanitation, rock, logging, and plateau. With high environmental adaptation.

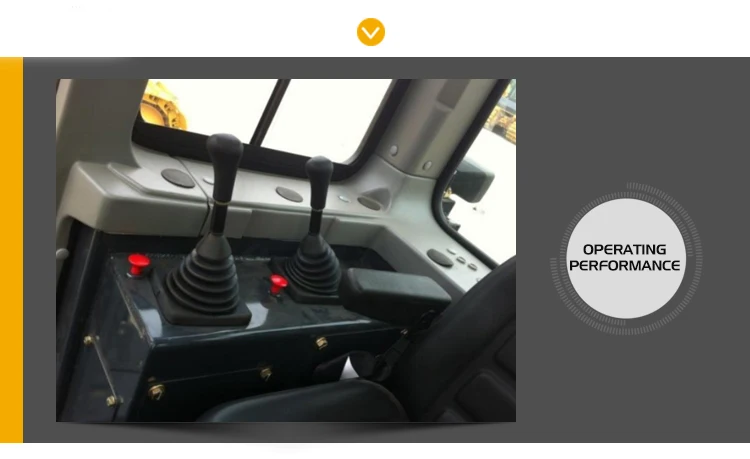

  • With electronically controlled traveling system and hydraulic pilot controlled working device, the traveling system and the working device can be controlled by single joystick.
  • The accurate control can be achieved by low operating forces, featuring flexible and light operations, high operation comfort, and high working efficiency.
  • The static pressure drive system is capable of stepless speed change, loaded steering, and pivot steering, featuring high flexibility and mobility and applicability for diversified working conditions.

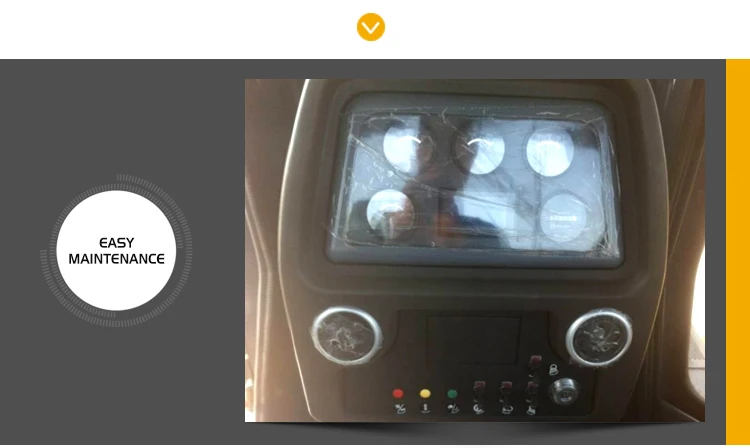

  • Intelligent large-screen display for automatic fault diagnosis and real-time protection of equipment.
  • Equipped with Weichai 93 sand filter, with good durability and long replacement cycle.
  • Fuel filter, oil filter centralized arrangement, one-stop maintenance.
  • The lubrication points of the key parts are taken out and the maintenance is more convenient.

Working Conditions

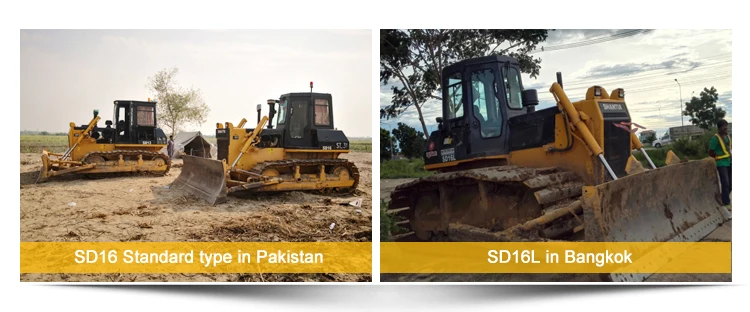

In various configurations for specific work environments, e.g., desert, swamp, forest, high altitude, etc.



After-sale Service



Six Free Services

Free technical enquiries with our experts.
Free repair service during warranty period.
Free special services for all key construction projects.
Free 0 hour service upon deliver of machine.
Free training of operators and repairs staff.
Free maintenance service tracking (customer to provide resources)



Product and Technical Inquiries

We have established a team of specialists, knowledgeable in our products and services, in order to provide information and answers to our customers on technical issues.

Special Services for Key Projects

If Shantui machinery is in operation in key projects on a provincial level or higher, the customer will receive special services from Shantui (free special coating service, on-site service, extended on-site service). These special services will allow customers to work more freely without any worries.

Packaging & Shipping



Company Information



Shantui Construction Machinery Co., Ltd., founded in 1980, was a national category I key enterprise integrating research & development, production and sales of main engine products and key components of earth moving machinery, pavement construction & compaction machinery, building machinery, hoisting machinery and other construction machinery series products; and it is also a state-owned joint-stock listed company. It is one of the top 50 manufacturers of construction machinery in the world, and one of China’s top 500 manufacturers. On January 1, 1997, “Shantui” listed on the Shenzhen Stock Exchange (stock code: 000680). In June 2009, Shandong Heavy Industry Group was established, and Shantui became one of its Subsidiaries. As the backbone of construction machinery industry in China, Shantui always ranks as No.1 in the industry.



Shantui has completed relevant diversified industry layout. In China, it has established seven industrial bases, i.e. Shantui International Industrial Park, Shantui Chongwen Industrial Park, Shantui Wuhan Industrial Park, Shantui Fushun Industrial Park, Shantui Taian Industrial Park, Shantui Jinan Industrial Park and Shantui Xinjiang Industrial Park, with overall coverage reaching 3,900mu.

Shantui focuses on technical innovation and sustainable development all the time. It ranks as one of domestic leading and nearly international advanced manufacturers in research & development capability, manufacturing capability and product quality. It owns national-level technical center, Engineering Technology Research Center of Shandong Province, post-doctoral scientific research station and other innovation platforms. Main products include 13 categories of main engine products, such as bulldozer series, road machinery series, concrete machinery series, loader series, fire vehicle series, aerial platform vehicle series and crane series, as well as accessories for construction machinery, such as chassis part, drive part, structural part, casting part and hydraulic oil cylinder; in which, Shantui bulldozer has become the first brand in China, and has won the sole gold medal in the bulldozer industry all over the country. At present, its annual production capacity exceeds 15,000 units of bulldozers, 7,000 units of road machineries, 5,000 units of concrete machineries, 180,000 track assemblies, 160,000 units of torque converters, 50,000 transmissions and 1,400,000 units of construction equipment rollers.



Shantui owns a sound sales system and complete sales service network, and its products are sold all over the country and overseas in more than 150 countries and territories. At present, there are 26 Shantui monopolized stores and 150 marketing points. The international strategy is implemented stably; now, Shantui has 71 overseas Agents, as well as 10 overseas Subsidiaries in the United Arab Emirates, South Africa, Russia and Brazil. In the aspect of marketing service mode, it abides by the principle of “value leading and win-win service”, introduces advanced concepts such as leading the industrial service promise, quality tracking and user care, provides solutions of whole set equipment construction for customers in time; and the humanized and punctual top-quality service help Shantui win customers’ praise, thus enhancing brand value of the enterprise.
