TNHA IP66 electrical limit switches waterproof valve limit switch

Product details
Max. Current:10A;Packaging Detail:Packed in the cartons;
Payment Terms:L/C,T/T,Western Union,MoneyGram;Place of Origin:Zhejiang China;
Port:NINGBO /SHANGHAI PORT;Operating Temperature:-25℃ to +80℃;
Protection Level:IP66;Humidity:<95% RH;
Name:Limit Switch;Supply Ability:200000 Piece/Pieces per Week;
Max. Voltage:250VAC;Color:Blue;
Model Number:LSA-012;Brand Name:TNHA;

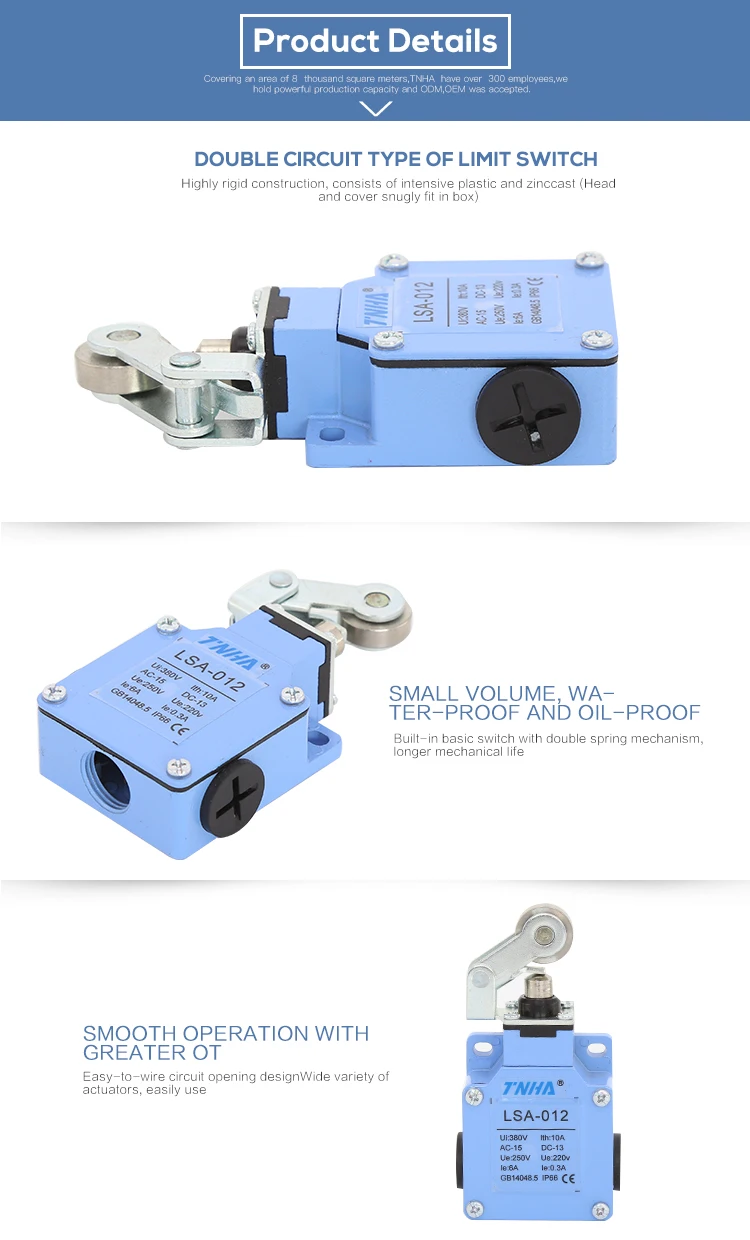

Product Pictures

Product Description
Model NoLSA-012
NameLimit switch
Operation speed1mm-2m/s
Operating frequencyMechanical:120operations/minute Eectrical: 30 operations/minute
Contact resistance15mΩmax.(initial value)
Insulation resistance100mΩmin.(at 500VDC)
Dielectric strength1000VAC,50/60 Hz for 1 minute between terminals of the same polarity
1500VAC, 50/60 Hz for 1 minute between current-carrying
and noncurrent-carrying metal parts
500VAC, 50/60 Hz for 1 minute between each terminal and ground
Vibration10-55Hz,1.5mm double amplitude
ShockMechanical durable: 1,000m/Sec2 (about 100G'S)
Malfunction :300m/Sec2(about 30G'S)
LifeMechanical:15,000,000 operations above (under rated OT)
Electrical:500,000 operations above
WeightAbout 275g
Degree of protectionIEC specification: IP66

Company Information

Packaging & Shipping

FAQ

Q: Are you factory?

A: Yes,We focus on Crane Push button Switch , Elevator control station and Limit swtich more than 17 Years in China.

Q:How about your Product Quality?

A:Aour products quality is good and most of all products approval of UL and TUV. After you use it, you will know more understanding for our quality.

Q:  Could I put my own logo on it?

A: Sure,customers' logo can be printed or put on the items.

Q: Could I buy 1pc sample first and small order?
A: Of course,support sample order and small order, especially for new customers under certain condition.

Q:How long is your products Warranty Period?

A: Generally, 1~2 years(After shipment date).

Q:Where can I get more products details?

A: Please check our website:www.tnhaelec.com

Q:How you will send the goods to us?
A:For urgent orders, we will send to your door by air. For bulk orders, it’s a good way to send to you by sea but will take much time. For small orders, express will be best. We can send the goods to you by DHL, FEDEX, UPS, EMS etc .

Q:What is the payment term?
A:We accept T/T, L/C, Western Union and paypal.
