SMT assembly production line PCB conveyor automatic PCB magazine loader

Click here to contact

Product details

Delivery Detail:	Shiped in 7days after payment;	Lead time:	4-7days;
Packaging:	Vaccum packing;	Product name:	Automatic PCB magazine loader PCB conveyor;
Model Number:	LT-M-BN / LT-L-BN / LT-XL-BN / LT-XXL-BN;	Supply Ability:	500 Set/Sets per Month;
Brand Name:	Morel;	Place of Origin:	China (Mainland);
Quality:	100% Tested;	Certification:	ISO9001 CE;
Usage:	SMT assembly line;	Model:	LT-M-BN / LT-L-BN / LT-XL-BN / LT-XXL-BN;
Payment Terms:	T/T,Western Union,MoneyGram,PayPal;	Condition:	Brand new;
Packaging Detail:	Vaccum packing;	Port:	Shenzhen;
Warranty:	18months;

Product Description

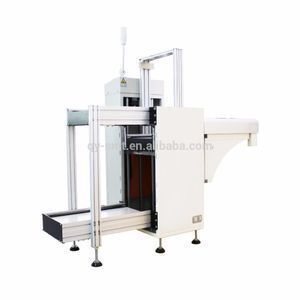

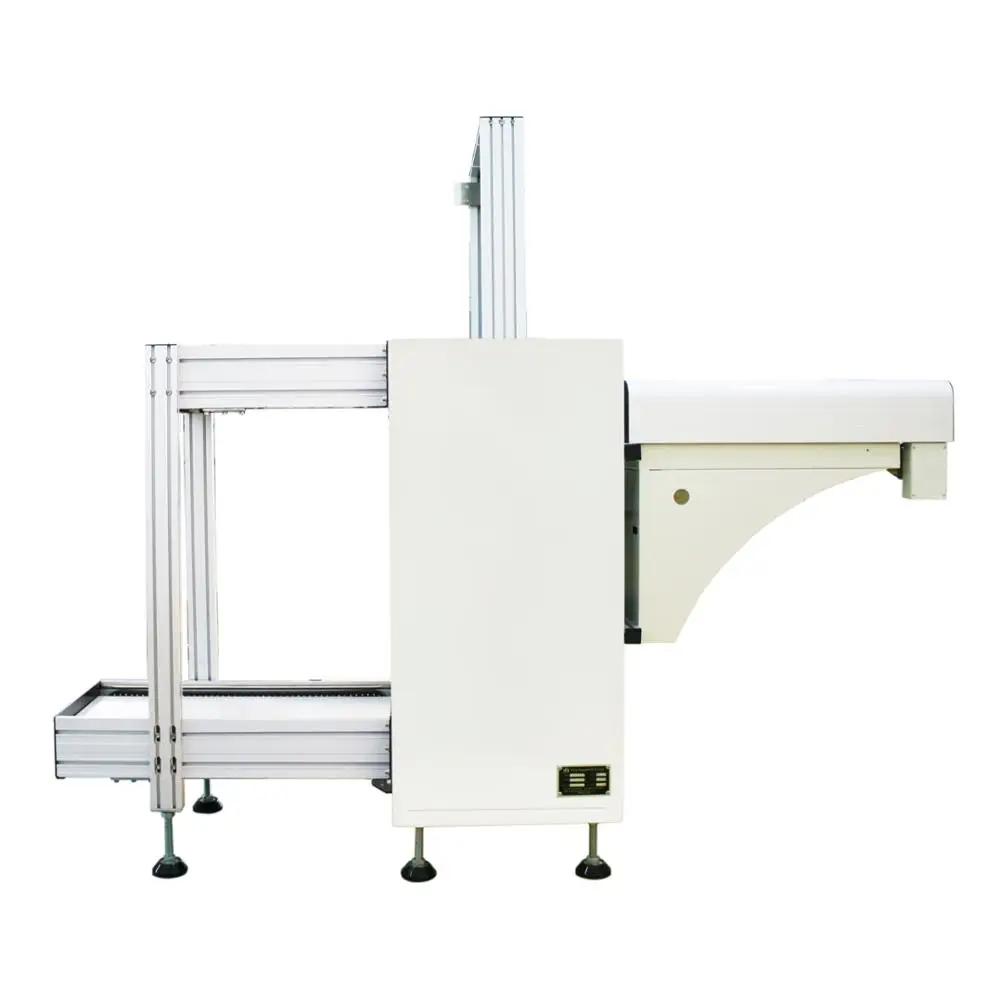

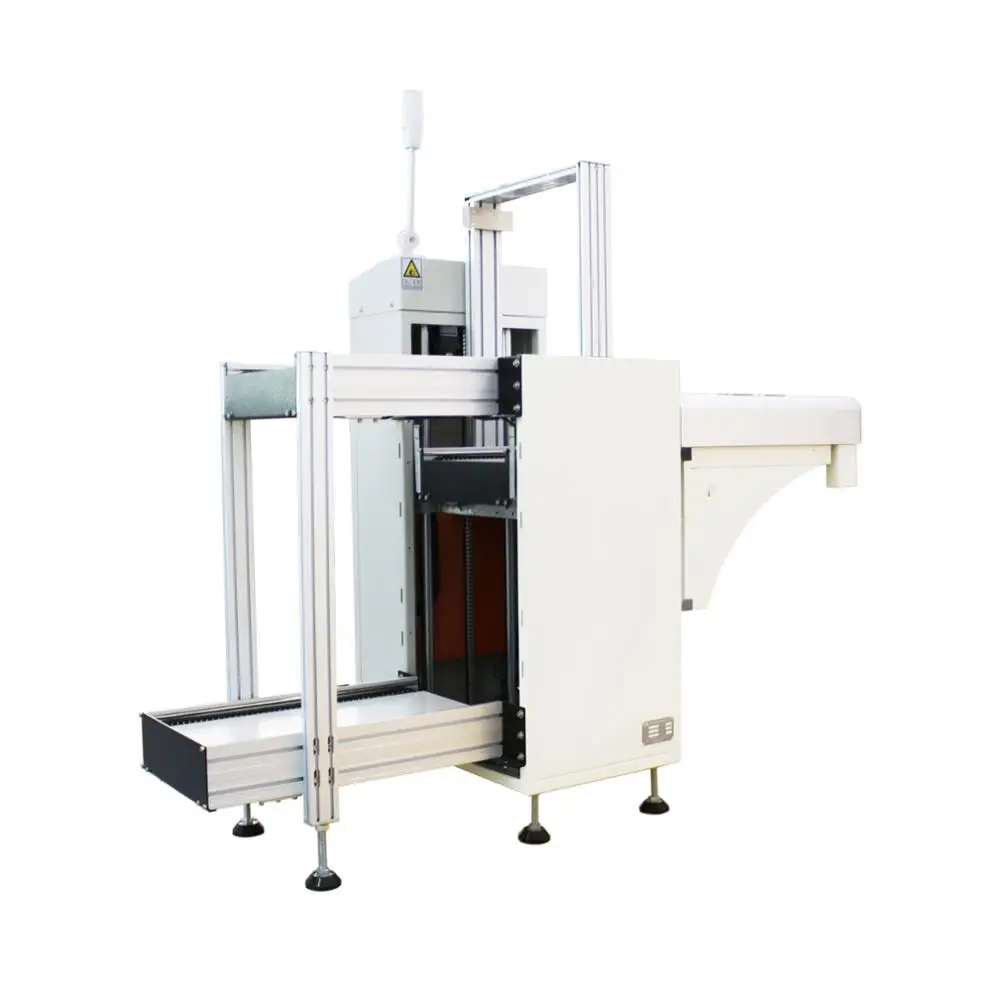

Morel SMT assembly production line PCB conveyor automatic PCB magazine loader

Advantage

1. Special aluminum alloy mechanism, better understand MAGAZINE operation status.

2. Stable casting lifting platform structure design, improve the stability of the equipment.

3. PLC control

4. Humanized programming, 4 kinds of PITCH selection,

Can set the step distance of receiving/delivering PCB.

5. The material box shall be transmitted by the engineering plate plastic tape.

6. Adjustable push board speed control.

7. Three-point positioning type up and down pneumatic clamping, ensure the location of the material box is accurate.

8.Designed gas circuit for transmit PCB smoothly and stably

9. SMEMA standard

Specification/Type	LT-M-BN	LT-L-BN	LT-XL-BN	LT-XXL-BN
Description	This equipment is used on the upper plate of PCB board in SMD production line
PCB Size(mm)	330*50~250	445*50~330	530*50~390	535*50~460
Transport Height(mm)	900±20(std)
Transmission speed	7.0 sec
Step pitch	10. 20. 30. 40mm selectable
Power	AC 110/220V±10V, 50/60HZ
Machine dimension	1880(L)870(W)1250(H)
Weight(KG)	220
MAX PCB capacity	400 pcs(0.4mm thick circuit board )
Gas Pressure	4-6bar
Air Supply	MAX 10 L/Min
PCB Thickness	MIN 0.4mm
Transfer direction	Left to right (Right to left as
