PVC UPVC Double Head Window Cutting Saw
- 1400.00 set
| Air pressure: | 0.4~0.6MPa; | Applicable Industries: | Building Material Shops; |
| Key Selling Points: | High-accuracy; | Dimension(L*W*H): | 4000*900*1500mm; |
| Brand Name: | Eworld; | Payment Terms: | L/C,T/T,Western Union; |
| Air consumption: | 200L/min; | Dimension: | 4000*900*1500mm; |
| Applicable Material: | PVC,Aluminum; | Packaging Detail: | wooden case seaworthy package; |
| Power: | 2.2KW; | Warranty: | 1 Year; |
| After-sales Service Provided: | Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; | Supply Ability: | 10 Set/Sets per Month; |
| Blade rotational speed: | 2840 r/min; | Voltage: | 380V 50Hz,380V/50Hz or customized; |
| Production Capacity: | -; | Cutting width: | 110mm; |
| Certification: | CE ISO,CE ISO; | Double cutting length: | 3500mm; |
| Total weight: | 600kg; | Port: | Qingdao; |
| Weight: | 600 kg; | Cutting thickness: | 125mm; |

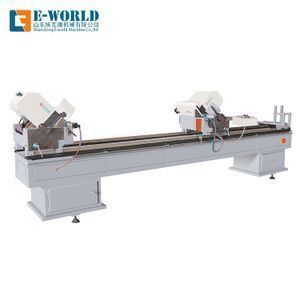

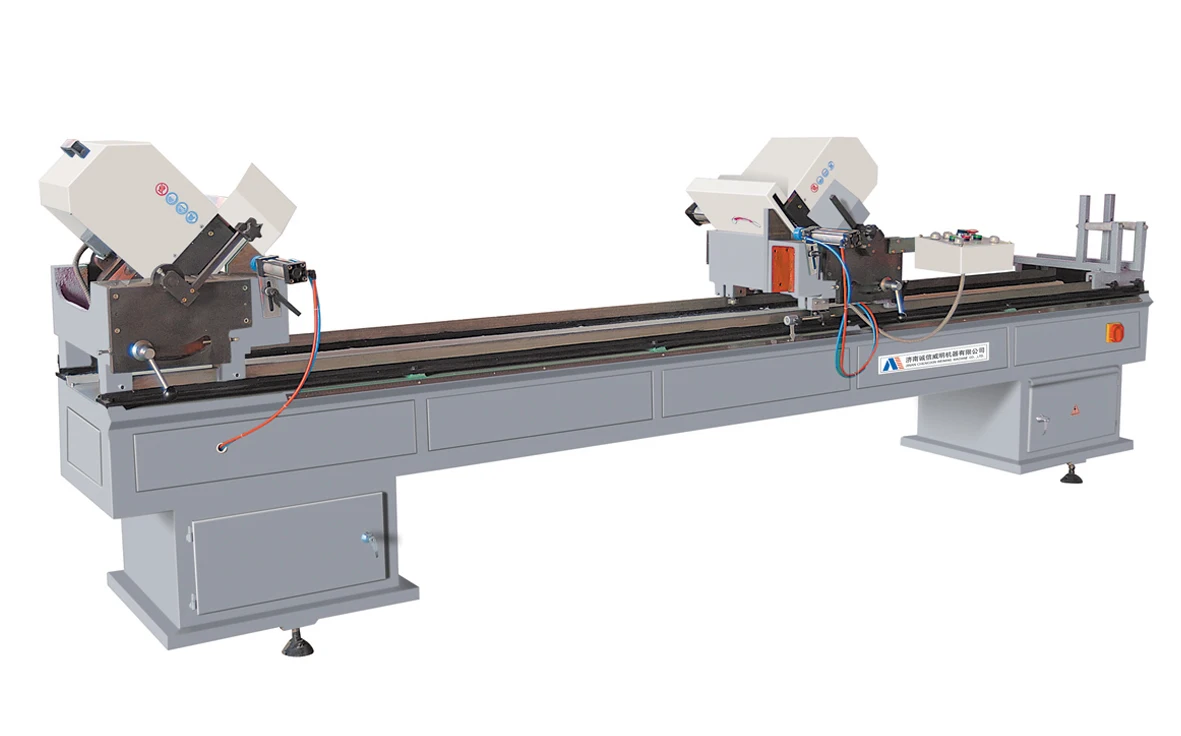

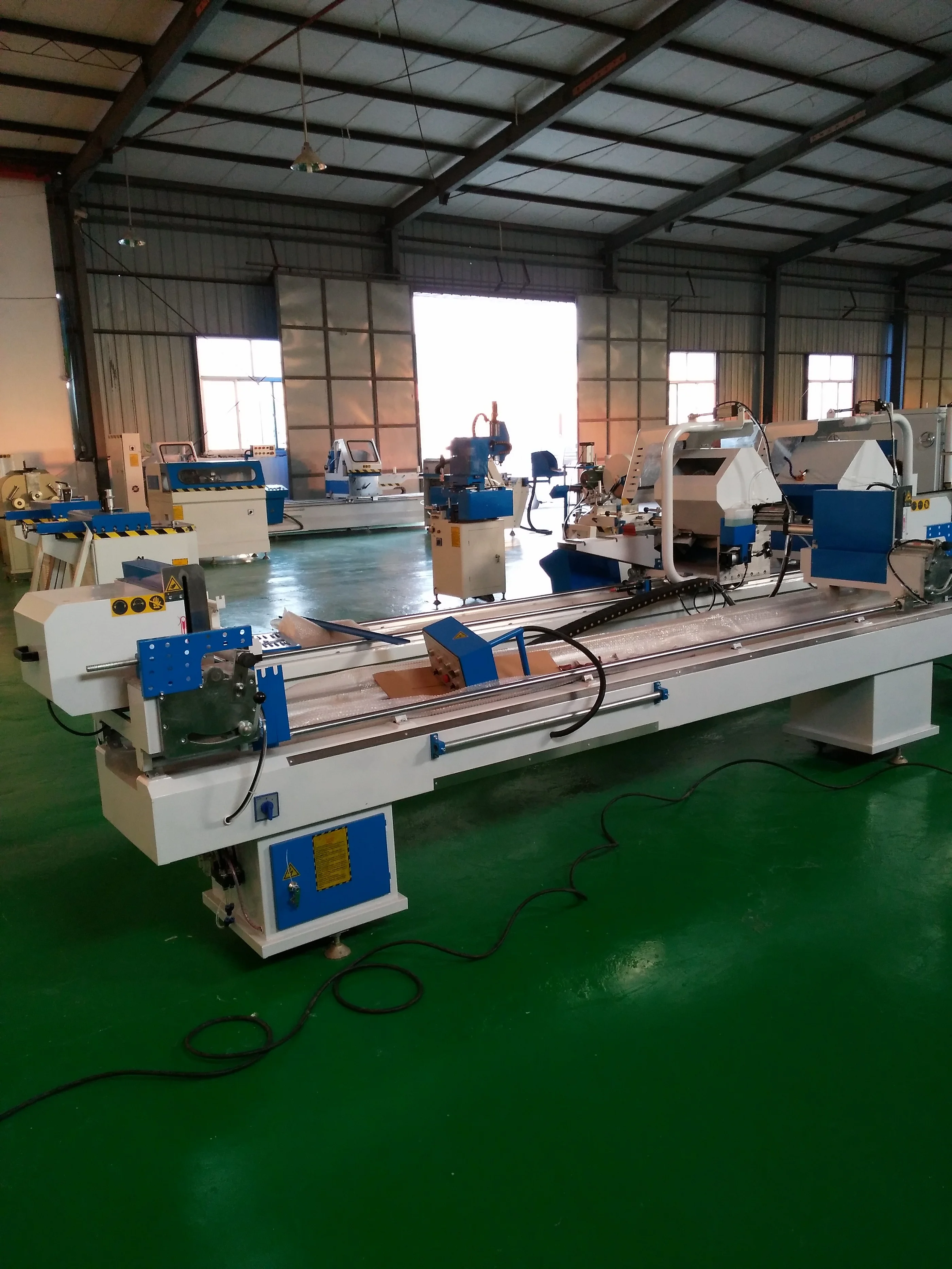

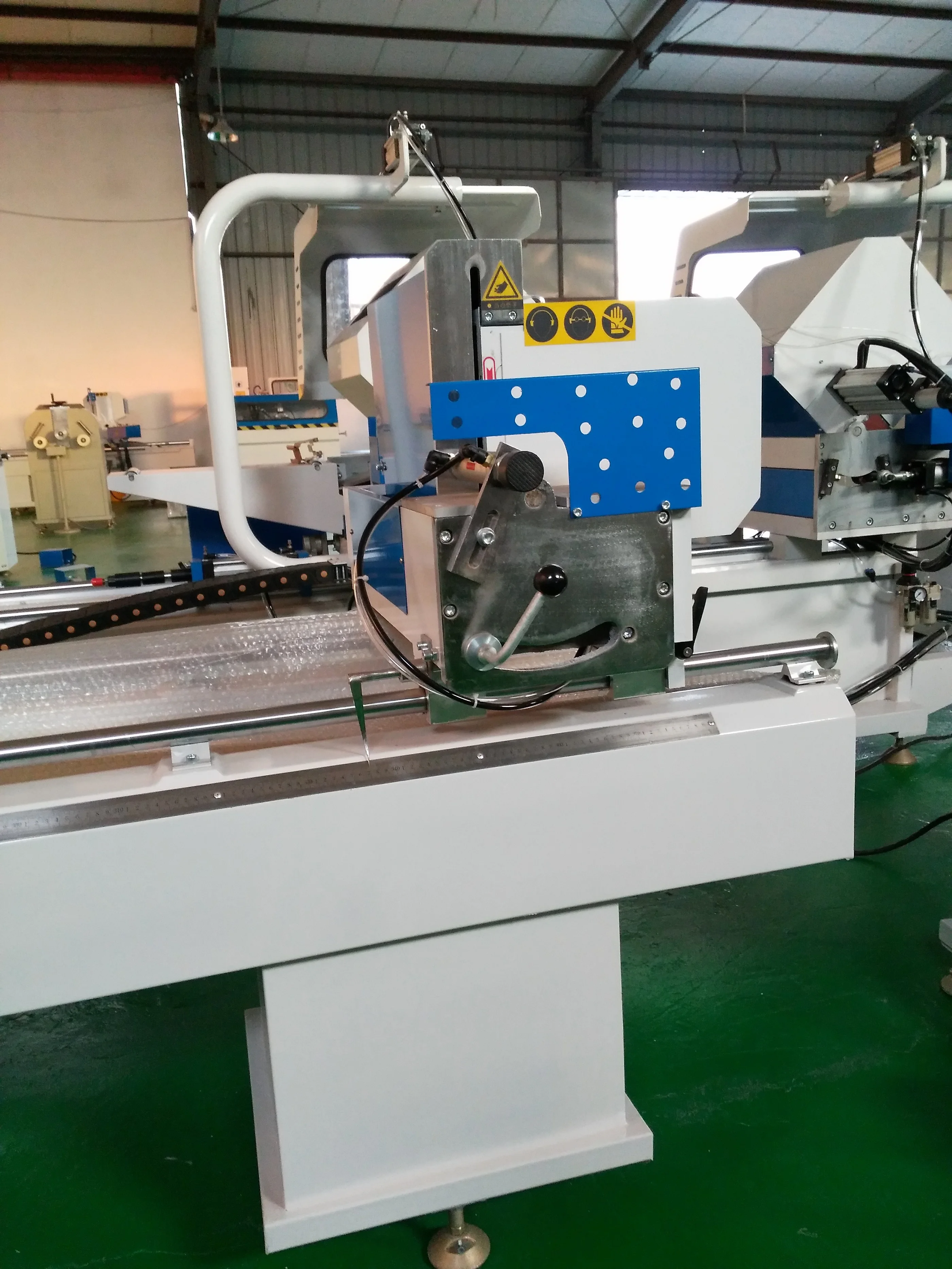

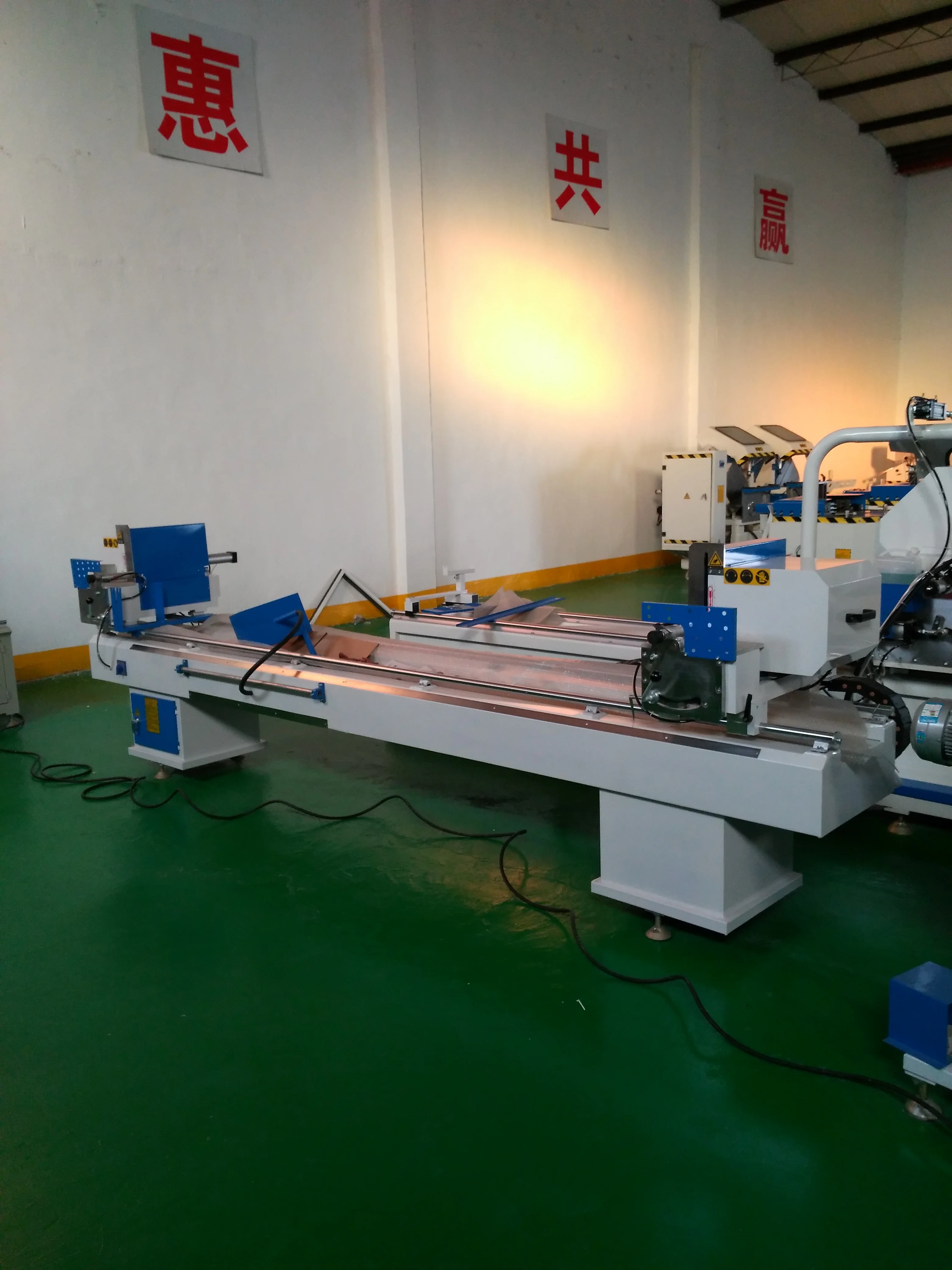

LJP-400-3500 PVC Double Head Cutting Saw

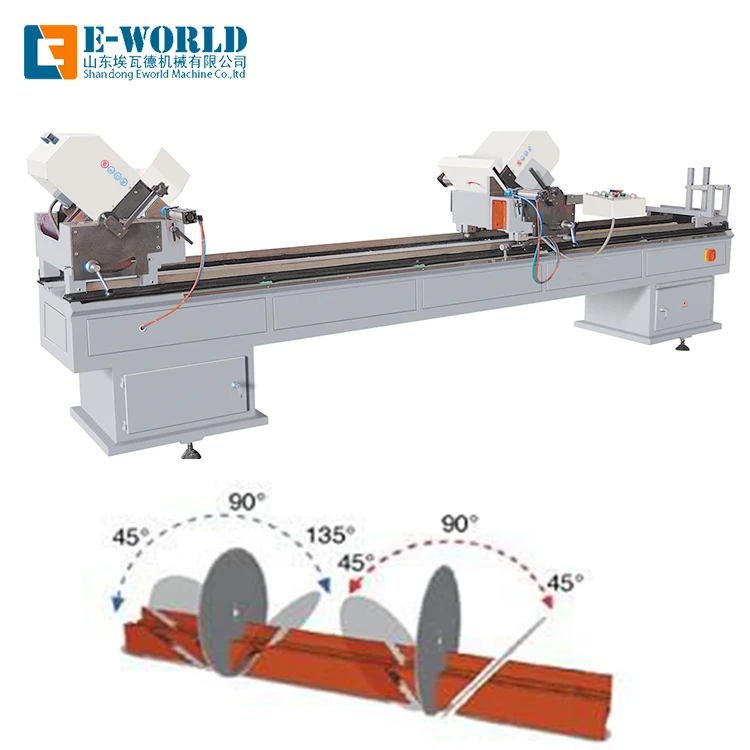

1).The machine is used for processing the aluminum and PVC/UPVC/plastic/Vinyl profile at angles of -45° ~90° ~45° The two heads can work individually, simultaneously and combinatively it has the features of simple operation ,stability and high efficiency.
2). It can process the aluminum profile, but only can cut very thin aluminum profile,so here this model usually mainly to cut the PVC/UPVC/Plastic /VInyl profile, if you want to cut both Aluminum and PVC profile, you can choose our other model SSJ06-3700
3).It has the features of easy operation and high accuracy.
4).Its cutting way is from the backward to the forward cutting, and safe cutting.
5).This cutting saw can make about 25-35 windows per day in 8 working hours. If you extend the working time, the production output will be more.
6).We can make the machine according to your true local power supply.
| Technical parameters | |
Processing Type: | Other |
Product Type: | PVC Profile |
Place of Origin: | Shandong, China (Mainland) |
Model Number: | LSJ420-3500 |
Voltage: | 380V |
Power(W): | 2.2 KW |
Dimension(L*W*H): | 4000X900X1500mm |
Weight: | 600kg |
Certification: | CE&ISO |
application: | window door production |
machine type: | cutting saw |
Machine colour: | any colour or as your required |
Double cutting length: | 3500mm |
Cutting thickness: | 125mm |
Cutting width: | 110mm |
