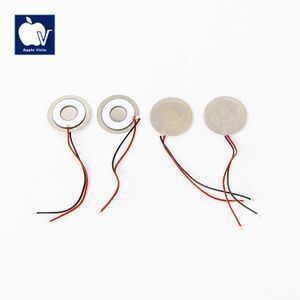

1.7mhz 25mm piezo ultrasonic piezoelectric atomizer transducer piezo ceramic
- 0.10 >=1000 pieces
| Place of Origin: | China; | Type: | Piezoelectric Ceramics; |
| for magnetic sensorApplication: | for automatic control; | Certification: | CE,ROSH; |
| Packing: | Export standard packing; | Supply Ability: | 1000000 Piece/Pieces per Month; |
| Brand Name: | APV; | Port: | FOB SHENZHEN or CIF,C&F; |
| for vibration,position sensor: | for ray sensor,speed sensorAPV; | for medical ultrasound: | for ultrasonic cleaning, for welding, for atomizing; |
| Terms of payment: | T/T,Western union; | Model number: | APV021; |
| Payment Terms: | T/T,Western Union,cash; | Model Number: | APV020; |
| Material: | Glass Ceramic; | Packaging Detail: | export standard packing; |
| Brand: | APV; | Place of Origin: | Guangdong China; |
| Application: | Useage:; |

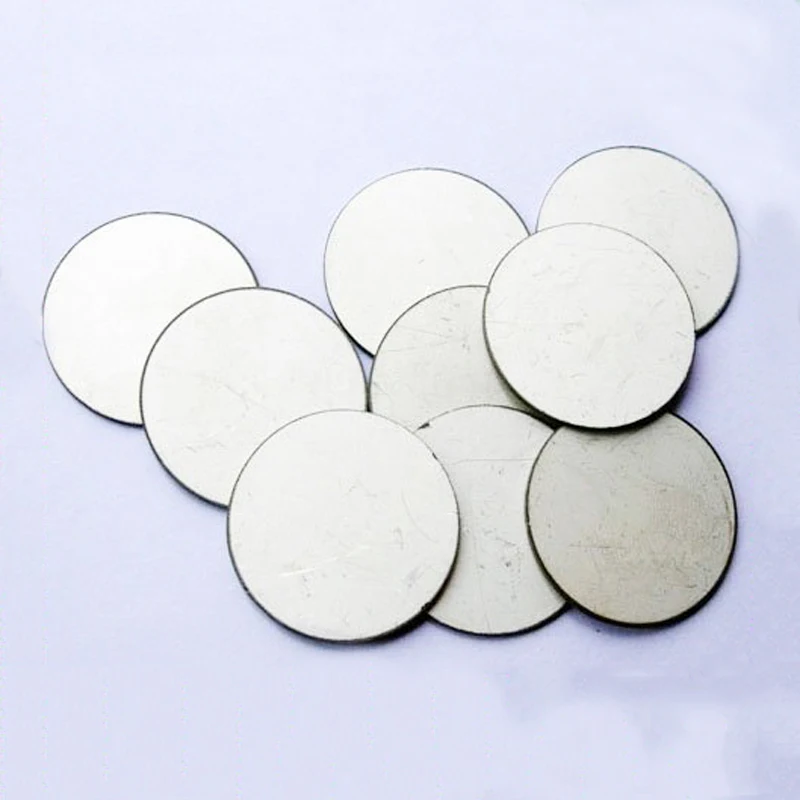

Piezoelectric ceramic Material
Piezoelectric ceramic materials are categorized as functional ceramics. In sensors they make it possible to convert forces, pressures and accelerations into electrical signals, and in sonic and ultrasonic transducers and actuators they convert electric voltages into vibrations or deformations. Pizoceramic materials are classified according to their chemical composition on the one hand, and by the specific application conditions on the other. We distinguishes between the following material caegories:
Materials for power transducers (ultrasonic applications)
Materials for sensors (ultrasonic transmitters and receivers)
Materials for actuators (precision positioning or injection systems)
Materials for special applications
Contacting of the metalized Piezoelectric ceramic Materials can be made using conductive adhesives, conductive rubbers, spring contacts or via soldering.
Warm Tips:We can customize various piezoelectric ceramics as required.
|
Spec |
Dimension (mm) |
Frequency (MHz) |
Capacitance (pf) |
Impedance (Ω) |
Fog output (ml/h) |
Life (hour) |
|
Φ16 x 1.25 |
1.7MHz±50KHz |
1.7MHz±50KHz |
1200±20% |
≤1.5 |
250 |
5000 |
|
Φ20 x 1.25 |
1.7MHz±50KHz |
1.7MHz±50KHz |
1900±20% |
≤2.0 |
350 |
5000 |
|
Φ25x 1.25 |
1.7MHz±50KHz |
1.7MHz±70KHz |
2100±20% |
≤2.0 |
400 |
5000 |
|
Φ25x 0.89 |
2.4MHz±70KHz |
2.4MHz±70KHz |
2300±20% |
≤2.0 |
450 |
5000 |
1. Ultrasonic cleaning transducer
2. Ultrasonic welding transducer
3. Ultrasonic beauty transducer
4. Thickness gauges
5. Pressure sensors
6. Microphone
7. Ultrasonic cleaners
8. Ultrasonic atomizers
9. Level sensors
10. Underwater echo sounders
11. Vibratory motors
12. Ultrasonic mixing/dispersion
13. other ultrasonic products
