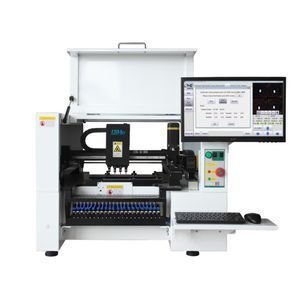

Factory directly supply PCB assembly machinery QIHE TVM925 SMT SMD pick and place machine with 6 cameras

Supplier: Yueqing Qihe Electrical Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr KIM Jin
Price: $5500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Max mounting capability:	9000 CPH without vision;	Tape width:	8mm,12mm,16mm,24mm;
Core Components:	Motor;	Max Z Moving range:	16mm;
After-sales Service Provided:	Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support;	Showroom Location:	India;
Warranty:	1 Year;	Feeders:	38 (YMAHA Feeder is available);
Video outgoing-inspection:	Provided;	Visual camera:	6 CCD Cameras;
Port:	NINGBO,SHENZHENG;	Packaging Detail:	1000mm820mm650mm;
Model Number:	TVM925;	Brand Name:	QIHE;
Supply Ability:	99 Set/Sets per Week;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Max applicable PCB:	310*360mm;	Placement head quantity:	4;
Usage:	LED SMT SMD;	Marketing Type:	Hot Product 2019;
Machinery Test Report:	Not Available;	Local Service Location:	India;
After Warranty Service:	Video technical support;	Warranty of core components:	1 Year;
Name:	desktop p&p machine;	Place of Origin:	Zhejiang China;
Machine dimension:	L845W865H650mm;

Hot sale Desktop Visional pick and place machin QIHE TVM925 39 feeders industrial HD camera

Parameters of TVM925

Name	TVM925
Max applicable PCB	2020mm—310360mm
Max XY Moving area	375*620mm
Placement head quantity	4
Max mounting capability	Vision off: 9000CPH
	Vision on: 7000CPH
Motor control scheme	Closed-loop motor
Industrial computer	Windows 7
Applicable Components	0402--5050,SOP,TQFP,QFN etc.
Components supply	Tape reel,bulk,Tray
Feeders number	38 (YAMAHA feeder is available)
Visual systems	6 Cameras
Power	350W
Power Supply	AC220V or AC110V
Machine weight	125kg
Gross weight	170kg
Packing size	1000990850mm
Support software	Protl99/Altium Designer/Eagle/Pads/ Allegro

Main Features

1. Vision system: one down-looking camera. Four CCD cameras and one HD camera.

2. Four placement heads can pick up and calibrate components at one time.

3. 38 feeder slots, Yamaha standard feeder is available.

4. Built-in computer mainboard, the monitor, key board and mouse will ship with machine.

5. Video tutorials make you operate machine easily

6. Free to upgrade software and provide technology support for life.

Company Show

Exhibition Show

Certificate

FAQ

1. Q: How many nozzles do you supply? Do you sell nozzles and spares?

A: The TVM802 has two nozzle-heads, we supply 4 nozzles. The TVM925 has 4 nozzle-heads, we supply 6 nozzles. Yes, we do sell nozzles and spares. If you need any spars, just let us know.

2. Q: Do you provide software updates?

A: Customers who buy our machines, we can offer free upgrades software for you.

3. Q: What air supply is required?

A: Oil free compressor and air dryer be used.

4. Q: What is the performance?

A: For QM41 it's 9,500cph without vision mode; 7,000cph with vision mode.

For TVM925 it's 9,000cph without vision mode; 7,000cph with vision mode.

For TVM802, it's 6,000cph without vision mode ; 4,000cph with vision mode.

5. How about the warranty?

A: We support one year warranty. We will regularly update the software for customers.

If there is any doubt in the process of operating the machine, please feel free contact us.
All the spare parts will be provided free of charge for you within the warranty period.
