XTY-180 0-180degree Binocular LED Surgical ENT DENTAL Operation Microscope

Supplier: Qingdao Hiprove Medical Technologies Co., Ltd.
Region: Shandong, China
Contact: Ms Nancy GENG
Price: $1400.00 /set
Min. Order: 1 set

Click here to contact

Product details

Fine focusing distance:	10mm;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,ALIBABA PAYMENT;
Packaging Detail:	Two cartons: Main machine in one carton: 86X66X23cm 16kgs Stand support and arm in onr carton: 71X68X26cm 43kgs;	Supply Ability:	1000 Set/Sets per Month 10sets shipment in 7days also;
Port:	QINGDAO/SHENZHEN;	Lamp:	LED;
Drawtube:	BINOCULAR;	Observation angle:	0-180degree;
Focal length of objective:	F=200mm 300mm 400mm;	Total Magnification:	4.8X-16X;
Theory:	Video Microscope;	Filter:	Build-in green and yellow filter.;
Magnification changer:	3-step: 0.6X, 1X, 1.6X.;	Delivery Detail:	in 7 days;
Magnification of observation:	8X;	Accessories:	With 2-part arm and floor stand.;
Illumination:	Coaxial illumination, cold light source fiber-optic cable;	Model Number:	XTY-180;
Brand Name:	HIPROVE;	Place of Origin:	Shandong China;

Product Description

Main Features

Magnification of binocular: 8X
Binocular: 0-180° inclinable
Magnification of eyepiece: 12.5X
Interpupillary distance: 50mm-80mm
Valuable price!!!

Product Application

XTY-180 Operation Microscope using LED light source for coaxial illumination, with 0-180° inclinable binocular and 3-step magnification changer, have different working distance and magnification. It is featured for flexible handling and easy operation. It is sued for micro-operation in dental especially, and can be used for micros-operation in ophthalmology, ear-nose-throat, gynecology and surgery.

XTY-180 Operation Microscope:
Magnification of binocular: 8X
Binocular: 0-180° inclinable
Magnification of eyepiece: 12.5X
Interpupillary distance: 50mm-80mm
Diopter: ±7D
Focal length of objective: F=200mm and F=250mm two objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total magnification: 4.8X, 8X, 12.8X, 6X, 10X, 16X
Linear field: 50mm, 30mm, 19mm, 40mm, 24mm, 15mm
Fine focusing distance: 10mm
Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>40000lx
Filter: Build-in green and yellow filters
Balancing arm: 2-part arm with universal joints, counterweight adjustable and can be locked
Floor stand: 2-part column fitted on the five-star base with casters
Power supply: AC100V-AC240V

Optional accessories: Beamsplitter, Video camera adapter, Demonstrator, 1080P Camera, VGA200, WK-73X10, WK-73X10H), SLR camera adapter, Monitor (S22E360H, X22, H1766), Eyepiece 10X, Objective F=300mm & F=400mm, F=200mm-300mm zoom objective, Table mount clamp, Wall mount bracket

Table of Optical Characteristics for XTY-180 Operation Microscope:
Magnification of eyepiece	12.5X/20mm
Focal length of objective	F=200mm	F=250mm	F=300mm(optional)	F=400mm(optional)
Total magnification	6-16X	4.8-16.8x	4-10.7X	3-8X
Magnification on handwheel	1.6X 1X 0.6X

Detailed Images

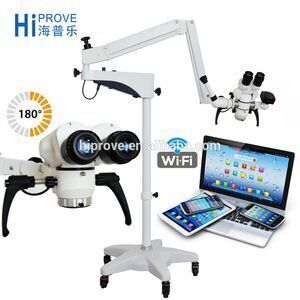

XTY-180 with standard accessory

0-180degree Binocular

How to package 1

How to package 2

NEW WIFI CAMERA

Packing

Packaging
Size	860 (L) * 600 (W) * 230 (D)
Weight	16KGS
Packaging Details	Main Machine packed into one carton with above details.

Packaging
Size	710 (L) * 680 (W) * 260 (D)
Weight	43kgs
Packaging Details	Floor stand and arm support packaged into one carton with above details.

FAQ

Q 1:Do you have any MOQ?
A:Yes,MOQ is 1SET.

Q 2:What is the lead time?
A:Sample time IN 7days!

Q 3:Can we put our logo on packages and products?If yes ,what you need from us?
A :Yes,we can achieve it by silkscreen ,laser etching on products, and higher quaity printing on package with full color etc. Need your logo Ai Format or EPS.

Q 4:How should I pay for you if I place order to you?
A :Usually, the Payment terms Paypal ,T/T ,West Union could be accepted.30%deposit in advance,70% paid before the shipment.
